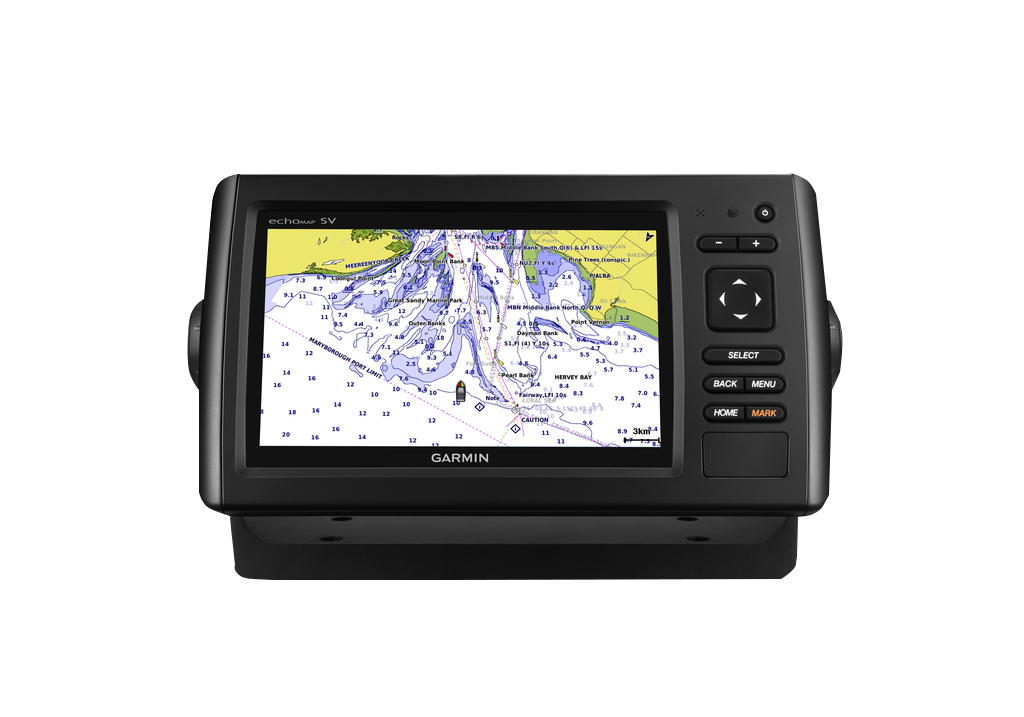

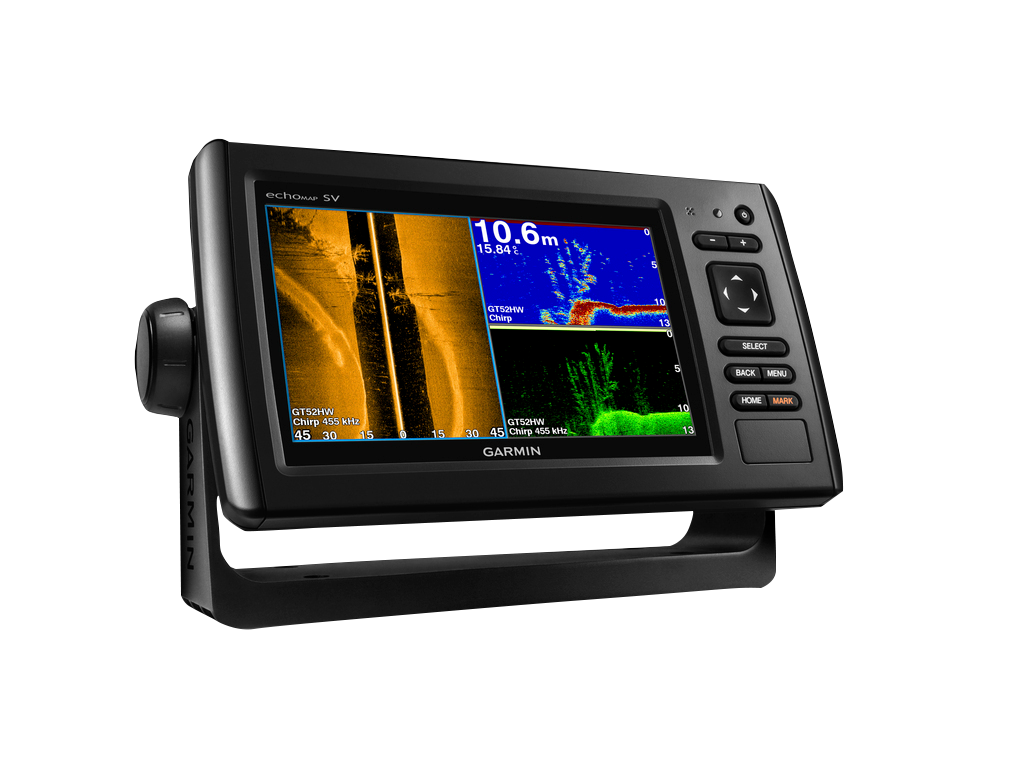

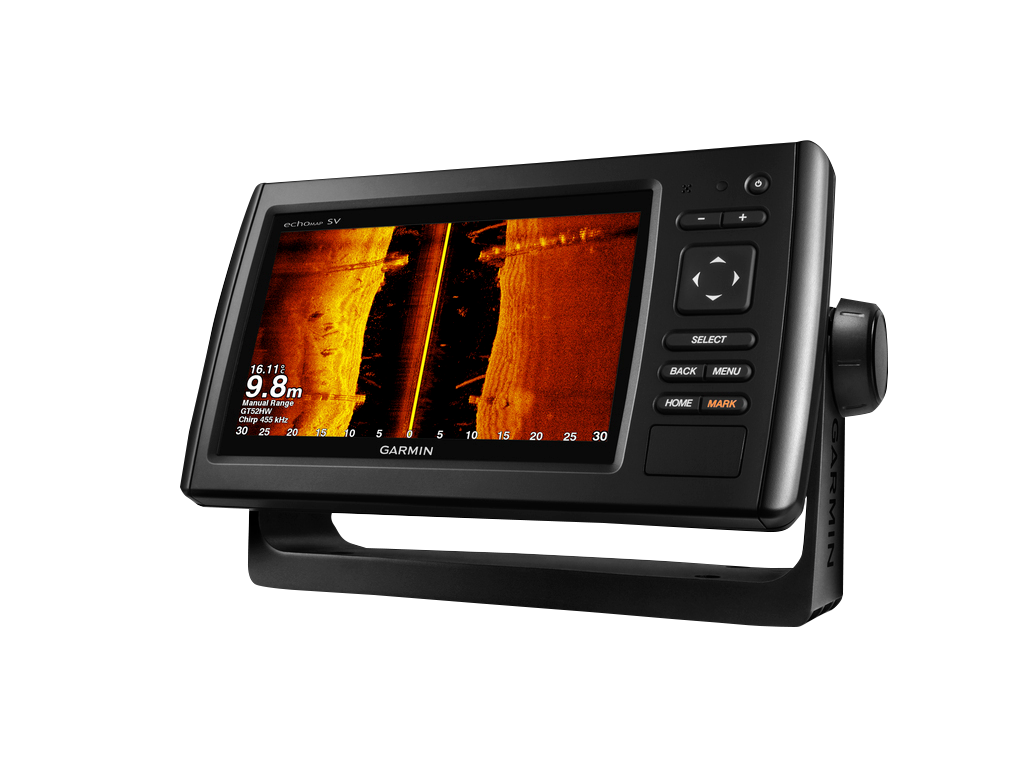

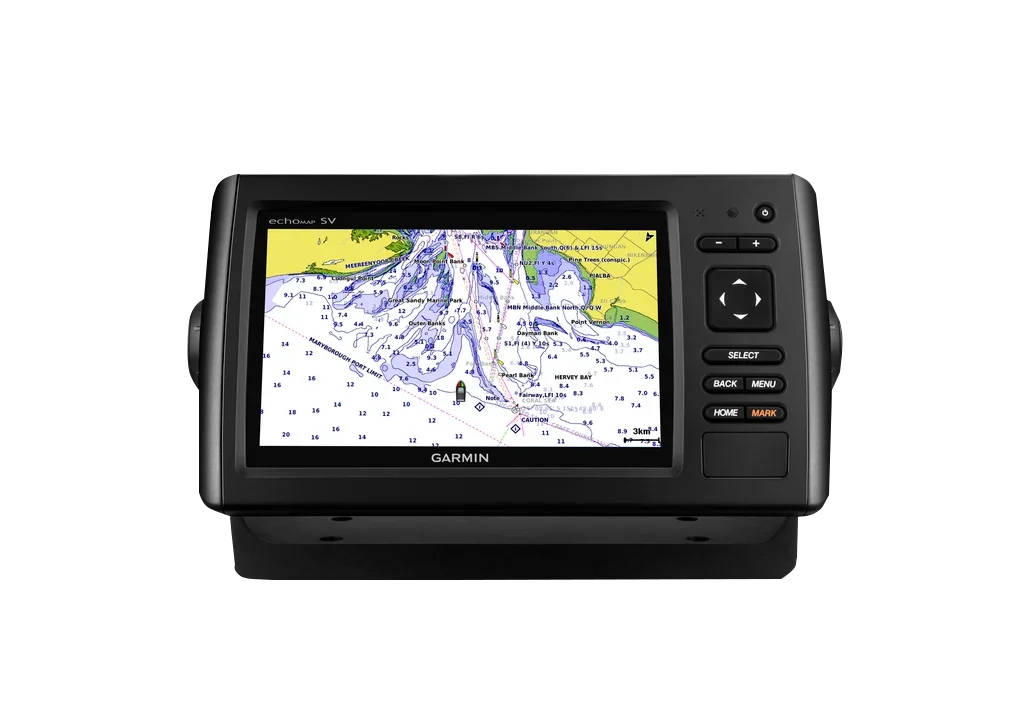

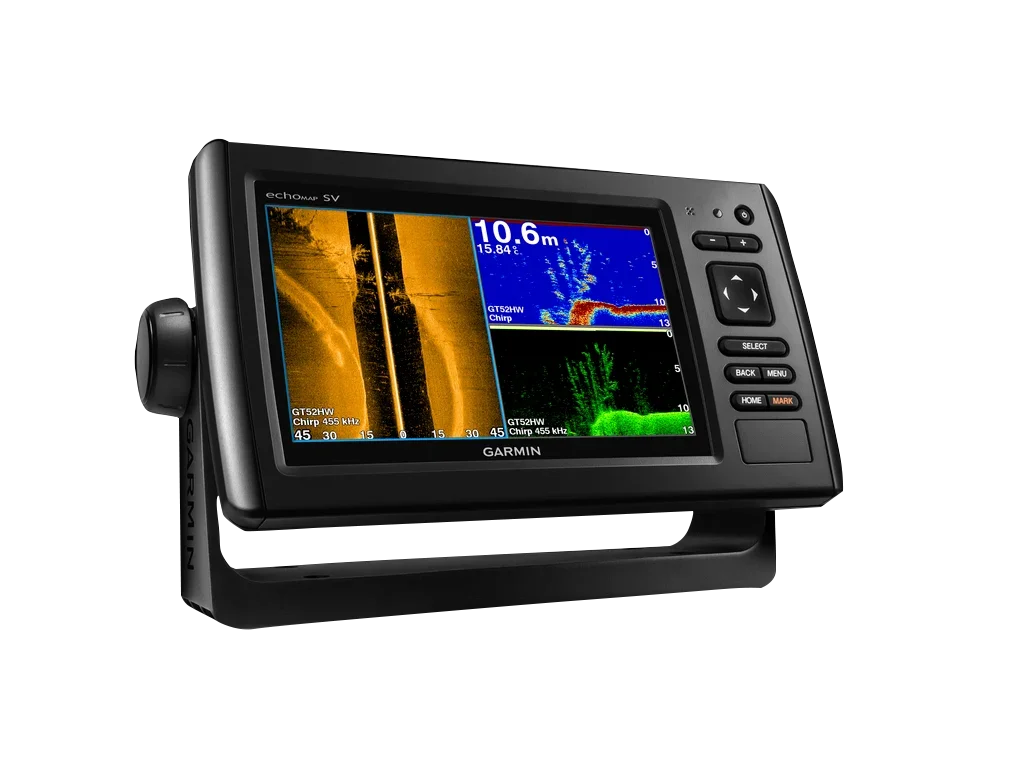

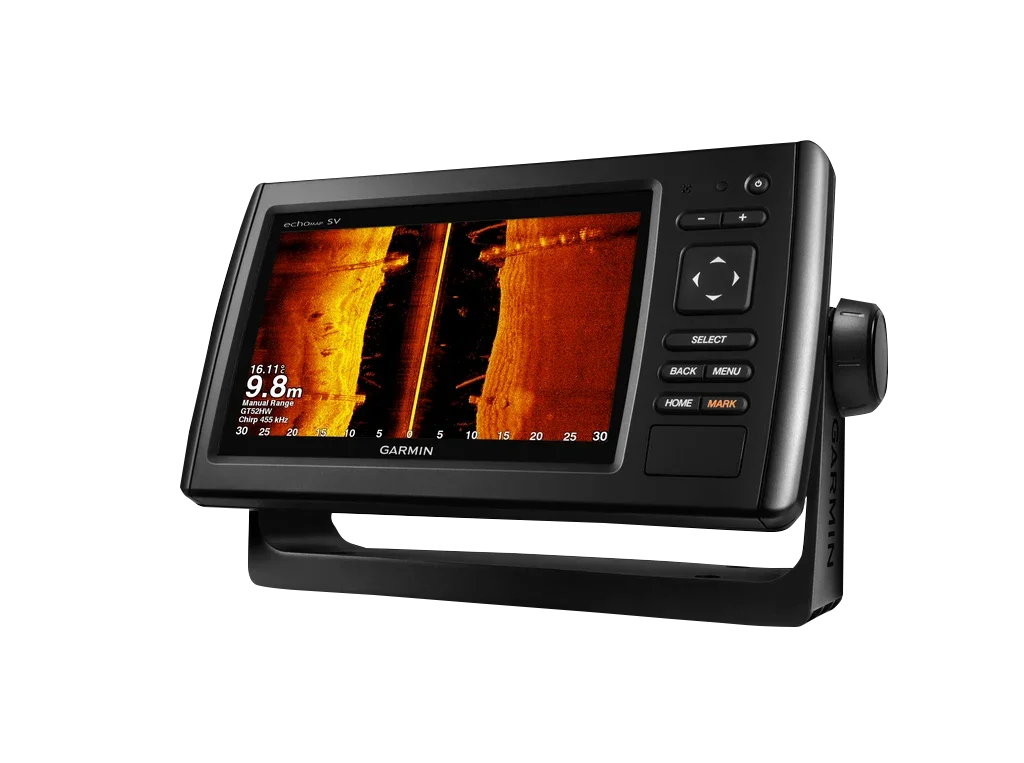

Garmin ECHOMAP CHIRP 75sv w/Transducer: Marine Chartplotter & Fish Finder Combo

Introduction

The Garmin ECHOMAP CHIRP 75sv combines a 7-inch marine chartplotter with professional-grade sonar in a single integrated unit, delivering the real-time positioning and subsurface imaging that serious anglers need to locate fish and underwater structures efficiently. This dual-function system pairs advanced CHIRP sonar technology with preloaded high-definition mapping to reduce the guesswork in any freshwater fishing scenario, whether you're targeting a specific lake or exploring new water.

Key Features

• 7-inch color display with anti-glare screen for clear visibility in direct sunlight and intuitive keypad controls
• CHIRP sonar technology delivering 30% better target separation than conventional single-frequency sonar systems
• Dual-frequency transducer: 250W on primary channel with 500W CHIRP ClearVü and SideVü support at 455/800 kHz
• Preloaded Canada LakeVü HD maps covering 13,500+ lakes with 4,800 in HD resolution and 1-foot contour intervals
• 5 Hz GPS refresh rate with GLONASS support—five position updates per second for precise vessel tracking
• Quickdraw Contours feature to record and save custom 1-foot HD contour maps of unfamiliar water
• Panoptix LiveVü Forward Sonar compatibility for live underwater imagery of your lure and fish activity
• IPX7 water resistance rating, protecting against splash and spray in marine environments
• Single microSD card slot for expandable memory and additional map data

Data Insights

The ECHOMAP CHIRP 75sv's sonar engine can distinguish targets as small as 1 inch, a capability that matters when fish are suspended near aquatic vegetation or rocky bottom. The CHIRP frequency-modulated pulse technology achieves its 30% separation advantage by transmitting across a range of frequencies rather than a single fixed tone, allowing anglers to pick out individual fish and structural details that would merge into a single target on conventional sounders. Combined with the 5 Hz GPS update rate, which refreshes your position five times per second, you maintain precise waypoint accuracy even when navigating at higher speeds or in GPS-challenged shallow bays.

Usage Instructions

Mount the transducer beneath the boat hull or on the trolling motor arm, ensuring the face sits flush and angled to eliminate air bubbles. Connect the unit to 12/24V marine power and use the microSD card slot to load additional maps or back up your Quickdraw recordings. Familiarize yourself with the keypad shortcuts—Select, Back, Menu, Home, and Mark buttons—to navigate sonar views, map screens, and waypoint creation without taking your eyes off the water. Update firmware periodically through Garmin's online portal to access new features and improved performance.

Design & Material

The ECHOMAP CHIRP 75sv balances compact functionality with durable marine construction. The blackened bezel and rugged housing absorb vibration and resist corrosion from saltwater splash, while the sunlight-readable color display and side-mounted physical controls allow operation even when glare bounces off the water's surface.

• Reinforced plastic housing designed to endure impacts, vibration, and exposure to UV and saltwater spray
• Non-reflective display panel with anti-glare coating for undiminished readability at midday or into evening sun
• Side-mounted power and menu buttons positioned for ergonomic thumb access without repositioning your grip
• Integrated cable pass-through and transducer connector recessed to minimize snagging during storage and transport
• Lightweight form factor—compact depth and width for clean flush-mount installation on boats of all sizes
• IPX7 submersion rating (withstands temporary immersion up to 1 meter) exceeding typical freshwater splash protection

Final Verdict

The Garmin ECHOMAP CHIRP 75sv w/Transducer (model 010-01820-00) solves the problem of buying separate chartplotter and fishfinder units by combining both into one system that learns your favorite lakes through Quickdraw Contours while keeping you positioned via dual-band GPS. If you fish Canadian lakes regularly or explore unfamiliar water, the preloaded 4,800 HD maps and 1-foot contours eliminate the blank-screen guesswork, and CHIRP sonar separation ensures you spot isolated fish, not noise. The IPX7 rating and anti-glare display handle real boating conditions—splashes, sun glare, and motion—without compromising visibility or reliability. For anglers ready to invest in equipment that performs as hard as they do, this integrated sonar and mapping unit delivers precision and confidence on the water.
