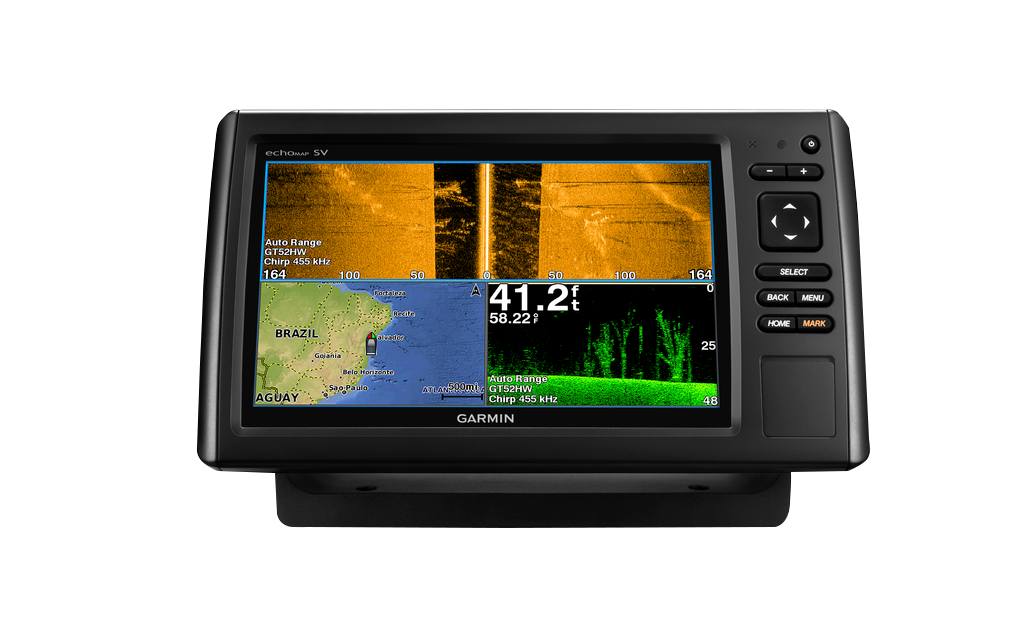

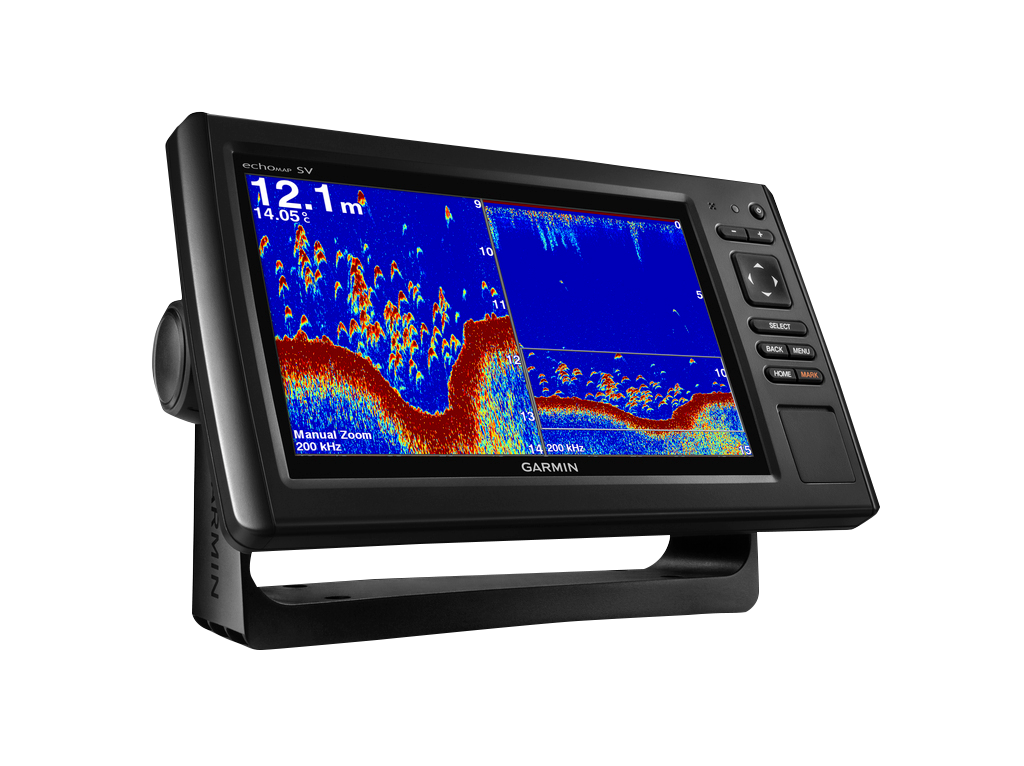

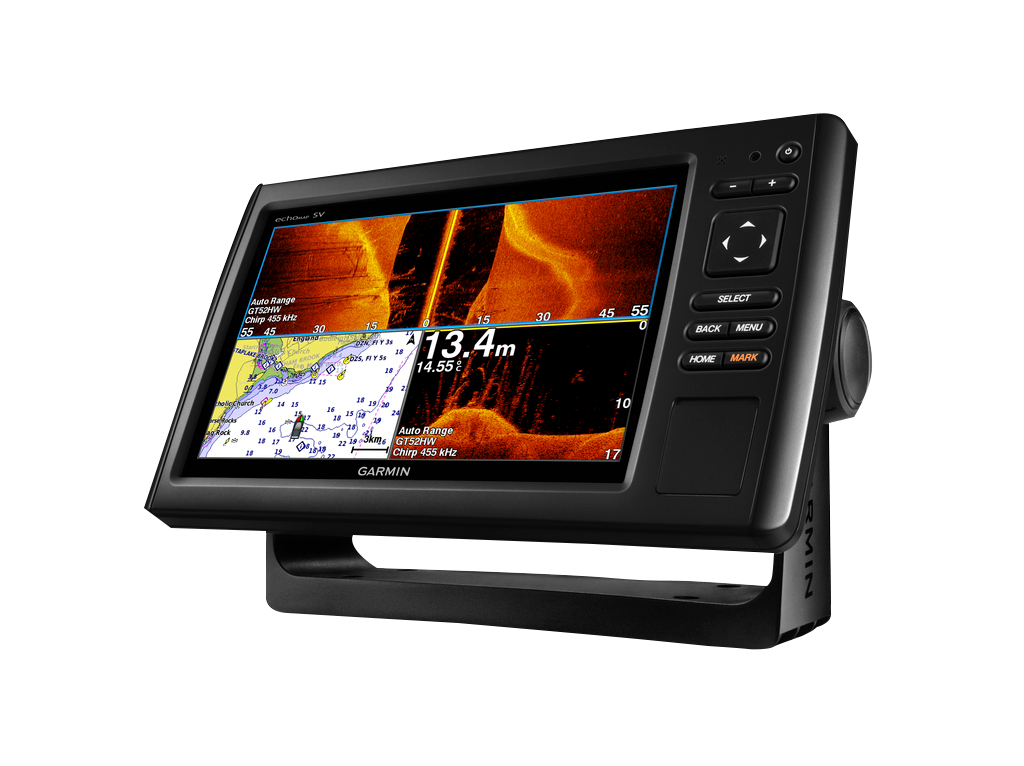

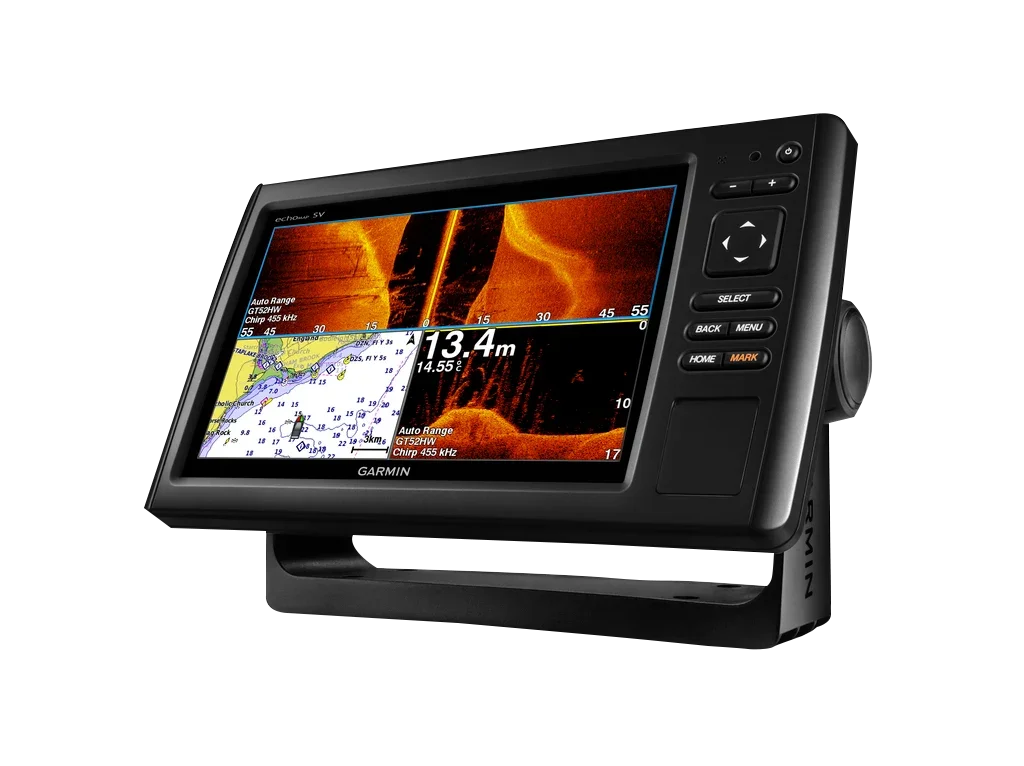

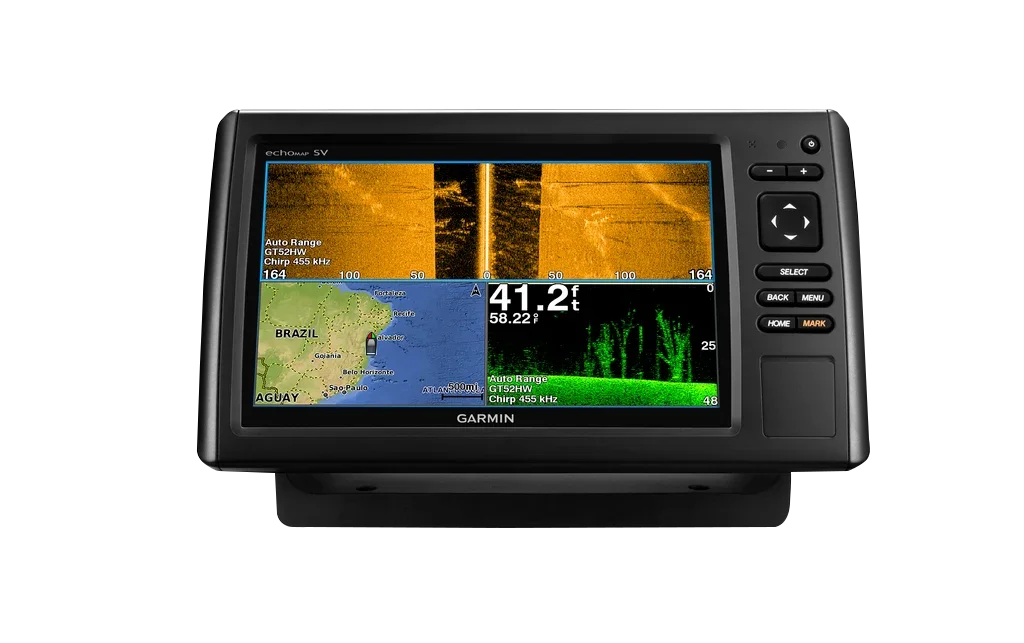

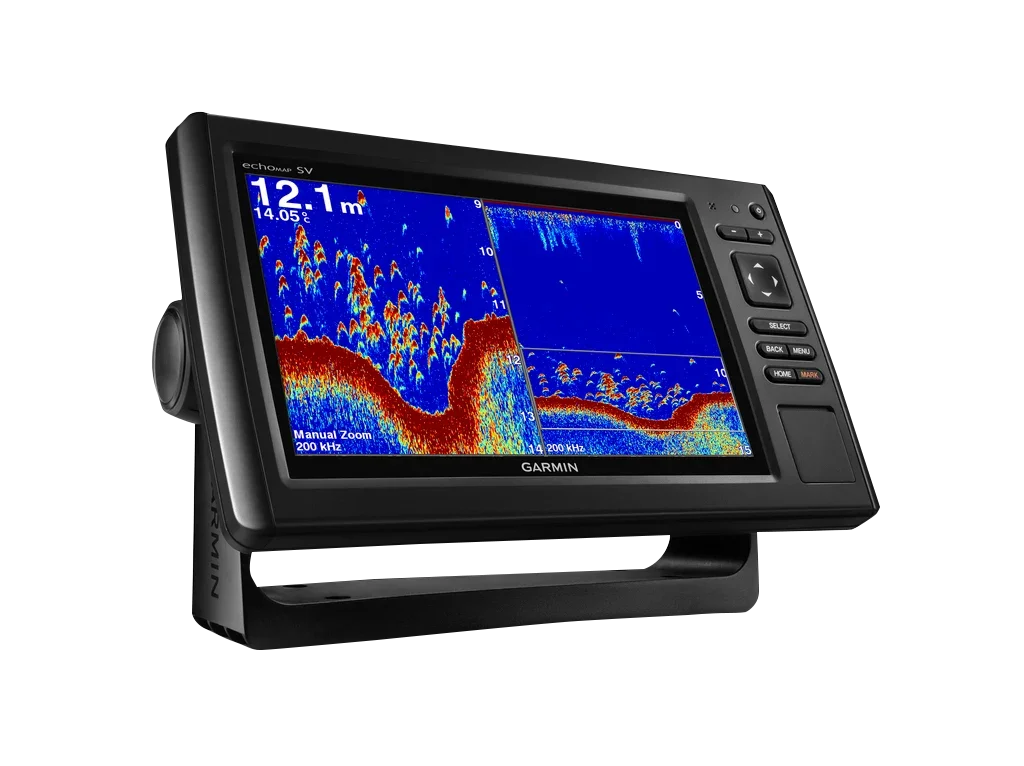

Garmin ECHOMAP CHIRP 92sv w/Transducer (010-01816-02)
Garmin ECHOMAP CHIRP 92sv w/Transducer (010-01816-02)
Model Number: 010-01816-02
Out of stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin ECHOMAP CHIRP 92sv with Transducer — Advanced Sonar Chartplotter for Serious Anglers
Introduction
The Garmin ECHOMAP CHIRP 92sv with Transducer (model 010-01816-02) combines a full-featured chartplotter with industry-leading sonar imaging in a single device, delivering the underwater visibility and navigation tools needed to locate and catch fish with confidence. The 9-inch color display serves as your command center on the water, integrating CHIRP sonar technology with GPS navigation and customizable mapping to eliminate guesswork from fishing trips.
Key Features
- 9-inch color display with sunlight-readable capability and intuitive keypad navigation
- CHIRP sonar with 77% improved target separation compared to traditional fixed-frequency systems
- ClearVü and SideVü imaging for detailed underwater views of structures, objects, and fish
- Quickdraw Contours feature creates 1-foot contour HD maps in real-time
- 5 Hz GPS and GLONASS positioning with capacity to store up to 5,000 waypoints
- Panoptix LiveVü Forward scanning capability extends viewing range up to 100 feet ahead
Data Insights
The CHIRP 92sv's sonar performance significantly outpaces conventional single-frequency systems. With a 77% enhancement in target separation, the unit delivers clearer acoustic signatures and better fish detection in varying water conditions. The dual imaging system—combining ClearVü for vertical perspective and SideVü for horizontal coverage—provides nearly photographic-quality underwater views, enabling anglers to identify productive structure and distinguish between fish, baitfish, and debris with precision.
Usage Instructions
Secure the ECHOMAP CHIRP 92sv using the included mounting hardware on your boat's console or helm station. Position the transducer according to Garmin's specifications to ensure accurate sonar readings. After powering on, navigate the menu system to calibrate GPS and sonar settings. Use the Quickdraw Contours tool to map new water by simply motoring over areas you want to store; the device logs bottom depth and structure. Save frequently visited locations as waypoints for quick navigation on future trips.
Design and Material
The ECHOMAP CHIRP 92sv is engineered for durability and practicality in marine environments. Its compact footprint allows installation on vessels ranging from small center consoles to large cruisers without dominating dashboard space. The device balances rugged construction with user-friendly controls, making it accessible to anglers at any skill level.
- High-impact plastic housing designed to withstand saltwater and freshwater marine environments
- Water-resistant construction rated for exposure to spray, washdown, and coastal conditions
- Sunlight-readable display reduces glare and maintains visibility in bright daylight
- Ergonomic control pad with easy-to-locate buttons for one-handed operation while piloting
- Quick-disconnect mounting bracket simplifies removal for portability or security
- Integrated cable management and flush-mount installation options for clean, professional appearance
Final Verdict
The Garmin ECHOMAP CHIRP 92sv with Transducer is the single most important upgrade available for anglers seeking dependable sonar, accurate positioning, and the ability to map unfamiliar waters quickly. Its combination of CHIRP sonar clarity, LiveVü forward imaging, and custom mapping eliminates the learning curve on new lakes and rivers while delivering repeatable success on established fishing grounds. For tournament anglers, serious recreational fishermen, and guides who depend on their electronics, this chartplotter-sonar combo delivers the performance and reliability required to stay competitive.
In The Box
- echoMAP CHIRP 92sv with worldwide basemap
- Power/data cable
- Tilt mount
- Quick-release cradle
- Protective cover
- Flush mount kit
- Transducer (12-pin)
- Transom mount
- Trolling motor mount
- Hardware
- Documentation
