- echoMAP CHIRP 93sv
- Power/data cable
- Tilt mount
- Quick-release cradle
- Protective cover
- Flush mount kit
- Transducer (12-pin)
- Transom mount
- Trolling motor mount
- Hardware
- Documentation

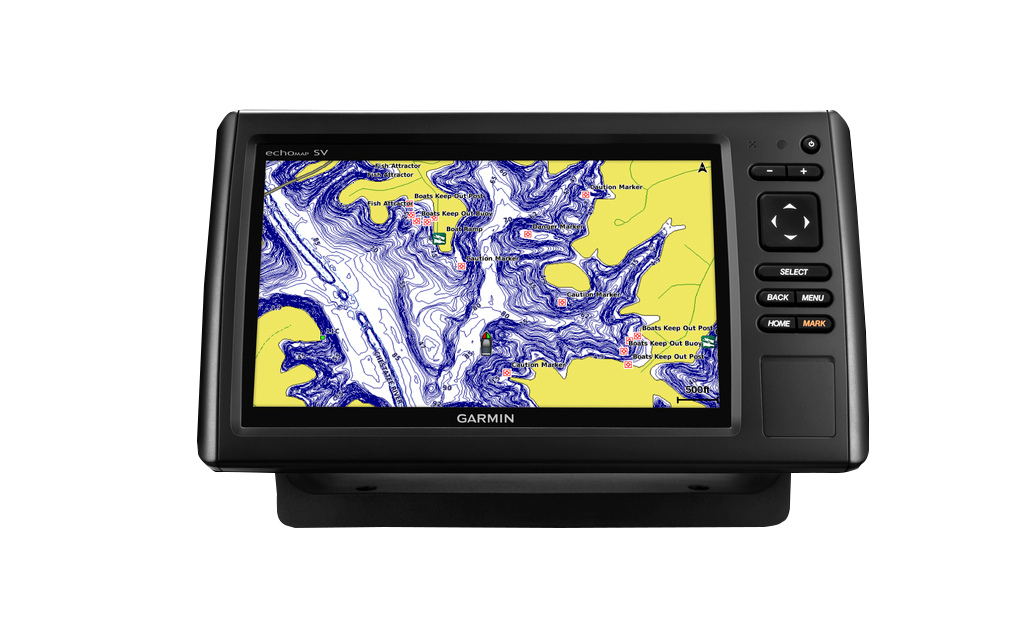

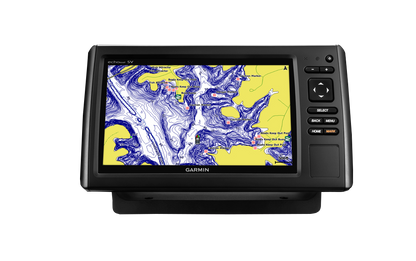

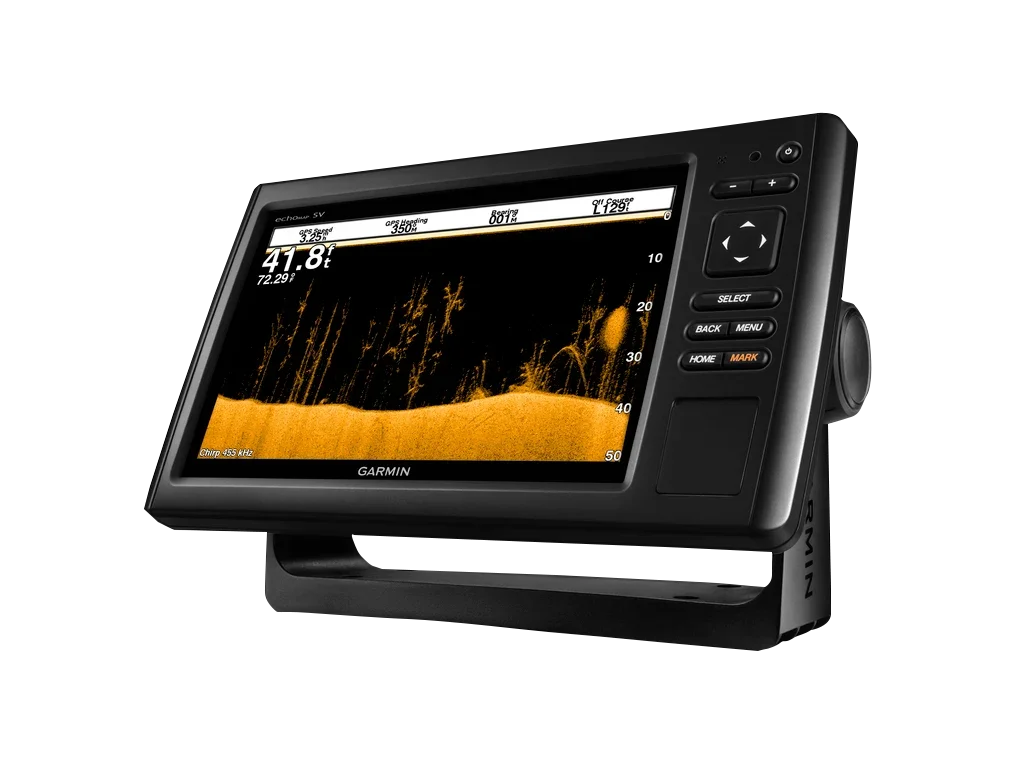

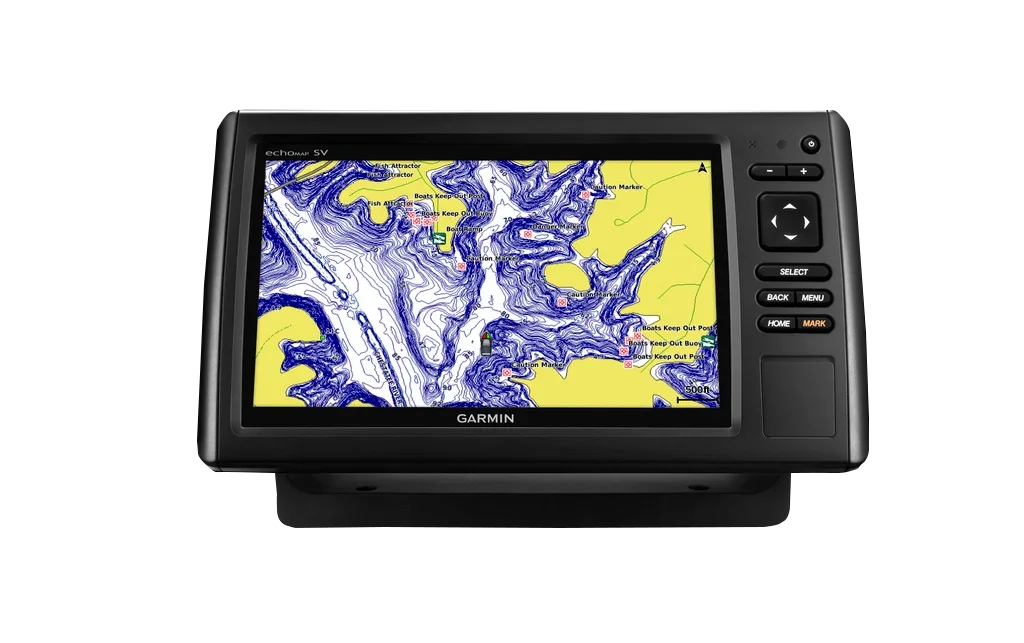

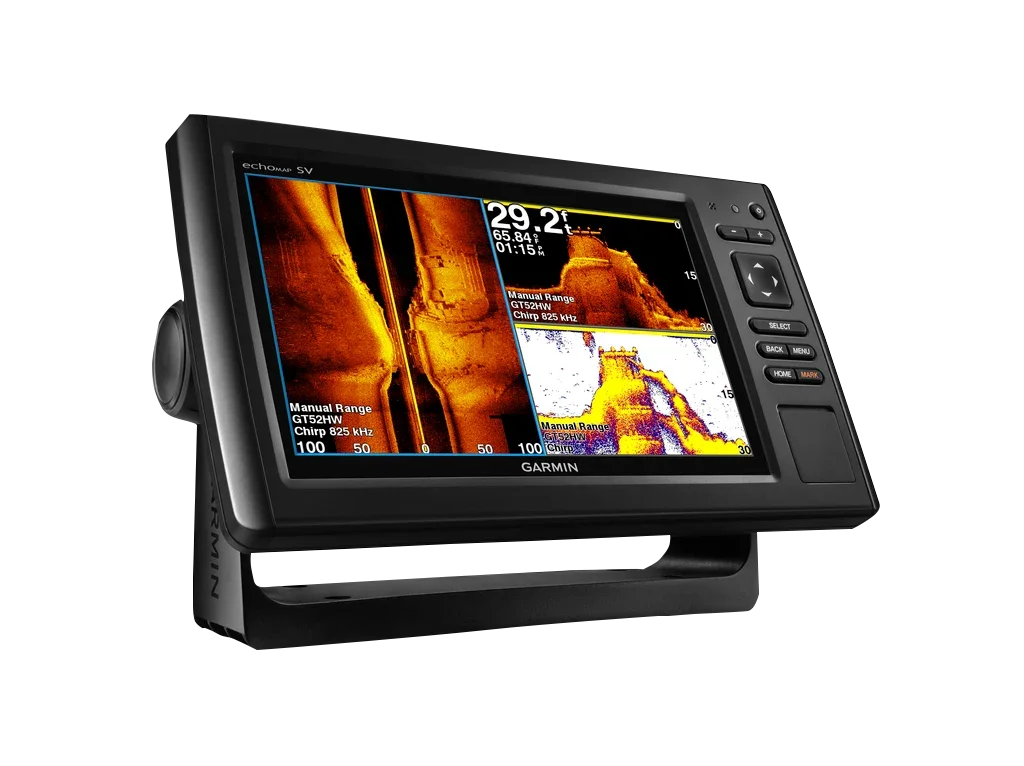

Garmin ECHOMAP CHIRP 93sv w/ Transducer (010-01804-01)
Garmin ECHOMAP CHIRP 93sv w/ Transducer (010-01804-01)
Model Number: 010-01804-01
Out of stock
Condition:
New
A brand new Garmin device. This Garmin ECHOMAP CHIRP 93sv w/ Transducer (010-01804-01) is retail packaged and factory sealed from Garmin USA. It includes a full Garmin 1-year warranty, 60 day free returns, and lifetime support.
Regular price
$999.99
Sale price
$999.99
Regular price
Unit price
per
Tech Specs
Garmin ECHOMAP CHIRP 93sv w/ Transducer - Advanced Fishing GPS Chartplotter with Real-Time Sonar Imaging
Introduction
The Garmin ECHOMAP CHIRP 93sv with transducer is a dual-frequency sonar and GPS chartplotter designed for serious anglers who demand superior underwater visibility and precise navigation. This 9-inch color display fishing system combines CHIRP sonar technology with preloaded mapping and real-time imaging capabilities, enabling you to locate structure, identify fish targets, and navigate familiar waters with confidence. The integrated transducer and rapid GPS refresh rate make this an all-in-one solution for both freshwater and coastal fishing applications.
Key Features
- 9-inch color display screen with weather-resistant construction for enhanced on-water visibility
- CHIRP sonar technology providing 77% improved target separation compared to traditional single-frequency sonar systems

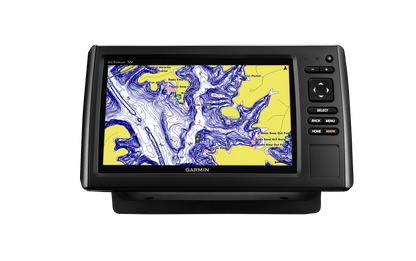

- Preloaded LakeVü HD maps covering over 17,000 U.S. water bodies, including more than 13,000 detailed HD lakes
- 5 Hz GPS and GLONASS positioning with support for up to 5,000 waypoint storage capacity
- Panoptix LiveVü forward-facing sonar displaying real-time underwater activity and lure movements up to 100 feet ahead
- Quickdraw Contours custom mapping feature allowing creation of personalized 1-foot contour maps

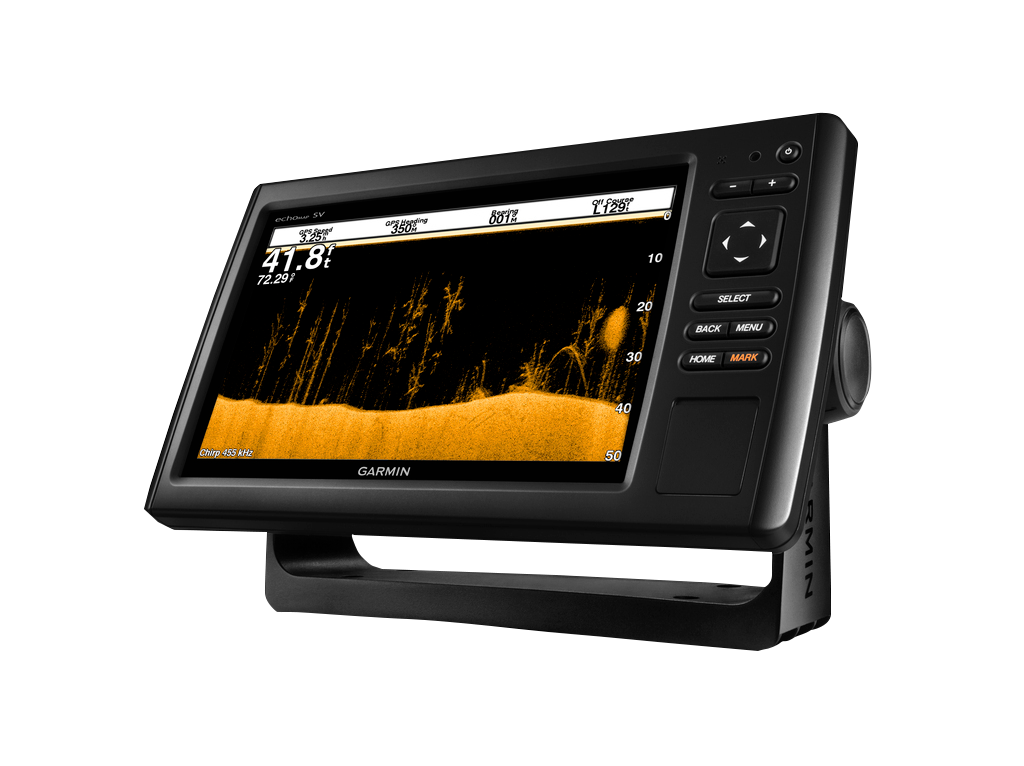

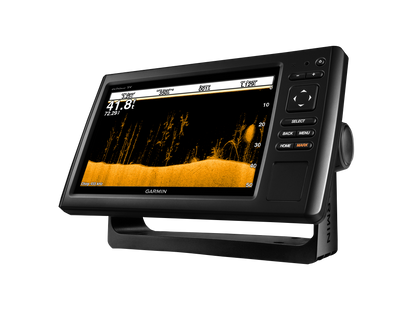

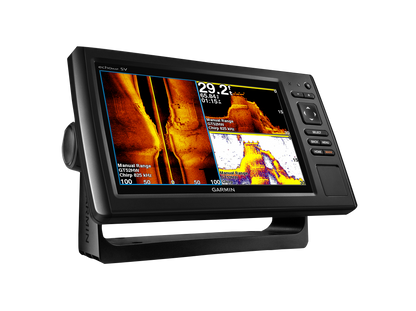

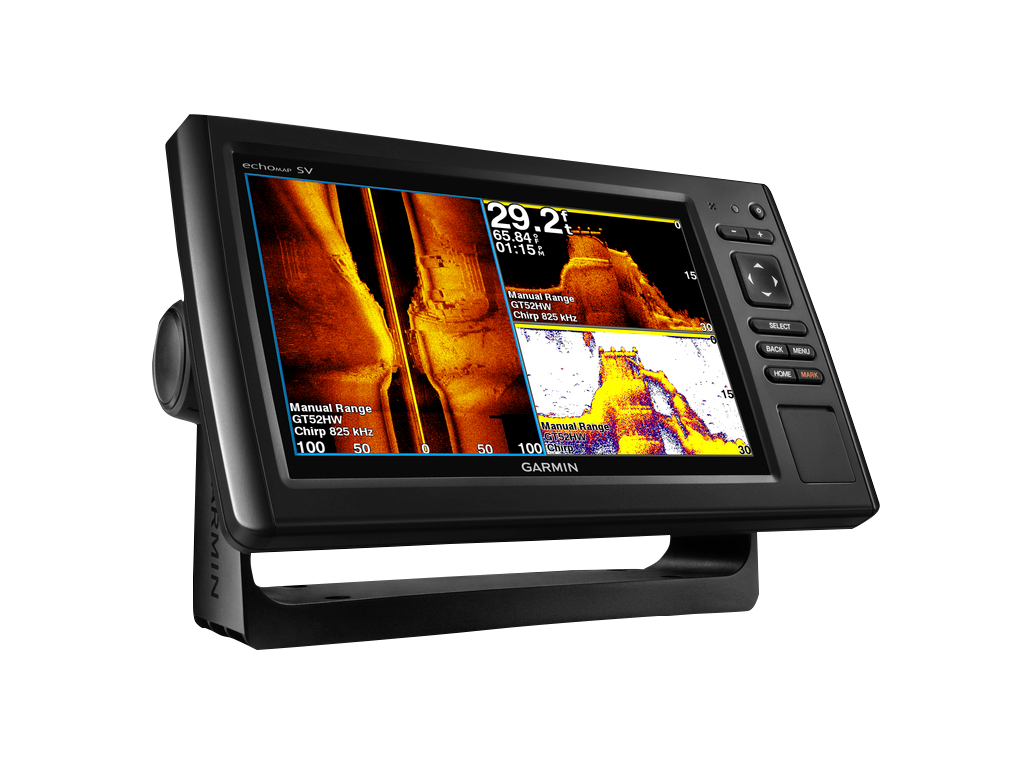

- CHIRP ClearVü and CHIRP SideVü scanning technology for near-photographic underwater imaging
- MicroSD card slot for expandable memory and map updates
Data Insights
Performance testing demonstrates the ECHOMAP CHIRP 93sv's superior sonar discrimination capabilities. The 77% enhancement in target separation allows anglers to effectively distinguish between fish targets and submerged structures—rocks, logs, and vegetation—that might otherwise produce false readings on conventional sonar systems. The 5 Hz GPS refresh rate updates your position five times per second, ensuring accurate tracking during active fishing and rapid boat movements. Real-time Panoptix imaging at ranges up to 100 feet forward provides immediate visual feedback on fish behavior and lure presentation, significantly improving strike success rates during dynamic fishing scenarios.
Usage Instructions
Mount the unit securely to your boat console using the provided hardware, ensuring a stable installation that allows screen visibility from your typical fishing position. Power on the device and navigate the menu system using the intuitive side-mounted keypad controls. Select your preloaded map view or switch to sonar mode by pressing the dedicated buttons. Adjust sonar sensitivity and frequency based on water depth and bottom composition. Periodically insert a microSD card into the expansion slot to download the latest LakeVü HD map updates and maintain optimal navigation accuracy.
Design & Material
The ECHOMAP CHIRP 93sv features a purposeful, compact form factor optimized for boat console integration without sacrificing functionality. The unit combines durable materials with a lightweight profile to facilitate installation flexibility and removal when needed. Its weather-resistant construction protects internal electronics from spray, humidity, and prolonged sun exposure typical of marine environments.
- 9-inch diagonal high-resolution color LCD screen with anti-glare treatment for direct sunlight readability
- Reinforced polymer housing with sealed edge bezel preventing water intrusion into the display area
- Intuitive five-button keypad layout with tactile feedback for operation without visual confirmation
- Compact dimensions engineered to fit standard marine console cutouts and mounting brackets
- Quick-release mounting bracket system enabling rapid installation and removal from boat installations
- Integrated microSD card slot positioned for easy access without removing the unit from service
Final Verdict
The Garmin ECHOMAP CHIRP 93sv represents the convergence of mapping, positioning, and sonar technology into a single reliable platform. Whether you fish large impoundments, river systems, or coastal areas, this chartplotter-sonar combo delivers the real-time underwater intelligence and navigational precision required to consistently locate and catch fish. The preloaded LakeVü HD maps eliminate guesswork on unfamiliar waters, while CHIRP sonar technology and Panoptix LiveVü features provide the imaging clarity to execute effective presentations. For anglers committed to maximizing fishing efficiency and success rates, the ECHOMAP CHIRP 93sv is an investment in technology that directly improves your time on the water. Upgrade your fishing capability today with this proven Garmin solution.
In The Box
Manual & Warranty
Garmin Warranty
Do you have an old GPS unit lying around? The GPS Nation Trade In and Up program is a great way to trade in your old and used GPS for credit towards a new GPS. The choice is entirely yours! We’ve made the process simple and streamlined. Follow these simple steps, and you will be on your way to receiving credit towards your brand new GPS!
1. Get a quote
To get your free quote, provide your GPS type, manufacturer, model, and condition. Within 24 hours, you will receive a quote for the trade-in value of your current product. The GPS trade-in/trade-up form is at the bottom of this page.
2. Ship your product(s) for trade
After accepting our offer, pack your product(s) safely and ship them to us using the pre-paid shipping label provided to you. We will provide a confirmation email when your trade-in arrives at our warehouse. You have 30 days from the date you complete your on-line trade to ship the product to GPS Nation.
3. Make your purchase
Once we receive your product at our warehouse and we validate the stated condition, we will send you a confirmation email. If you elect to receive credit towards a new GPS at gpsnation.com, your store credit will be issued, and you are free to make your purchase.
