Garmin GPSMAP 923xsv With GMR 18 HD+ Radome Marine Navigation System

Introduction

The Garmin GPSMAP 923xsv paired with the GMR 18 HD+ radome delivers professional-grade marine navigation designed for serious boaters who need reliable fish detection, real-time weather awareness, and precise coastal or inland navigation. This combination of a 9-inch chartplotter and integrated 4 kW radar system addresses the fundamental needs of fishing vessels, sailboats, and explorer craft: knowing where fish are located, understanding weather patterns ahead, and maintaining confidence in your position at all times.

Key Features

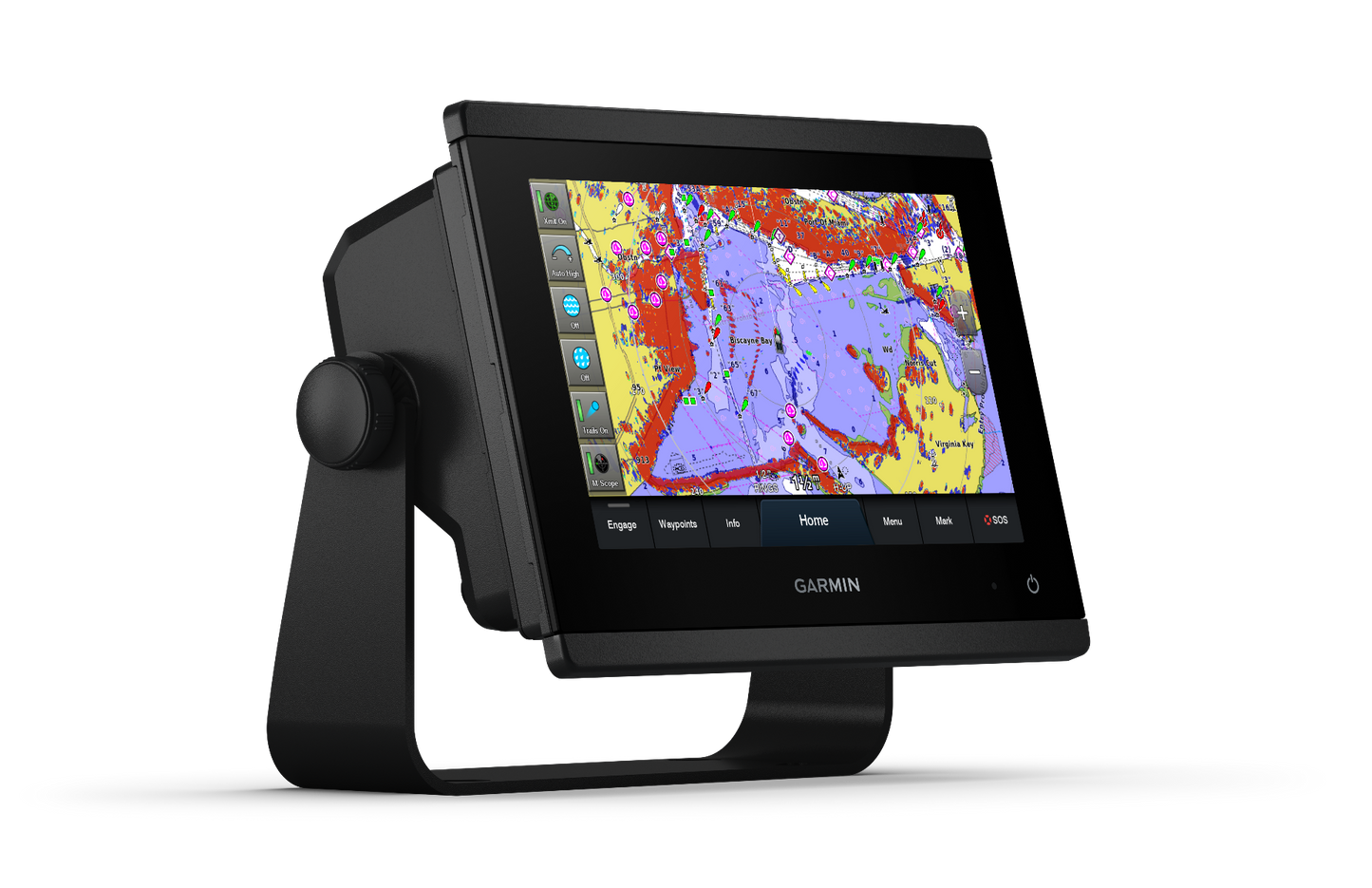

• 9-inch high-resolution IPS display with 50% more pixels than previous generation, delivering enhanced clarity in direct sunlight and ensuring critical navigation data remains legible in all lighting conditions
• Ultra High-Definition SideVü and ClearVü scanning sonar technology enabling 40% more efficient fish detection compared to older sonar models

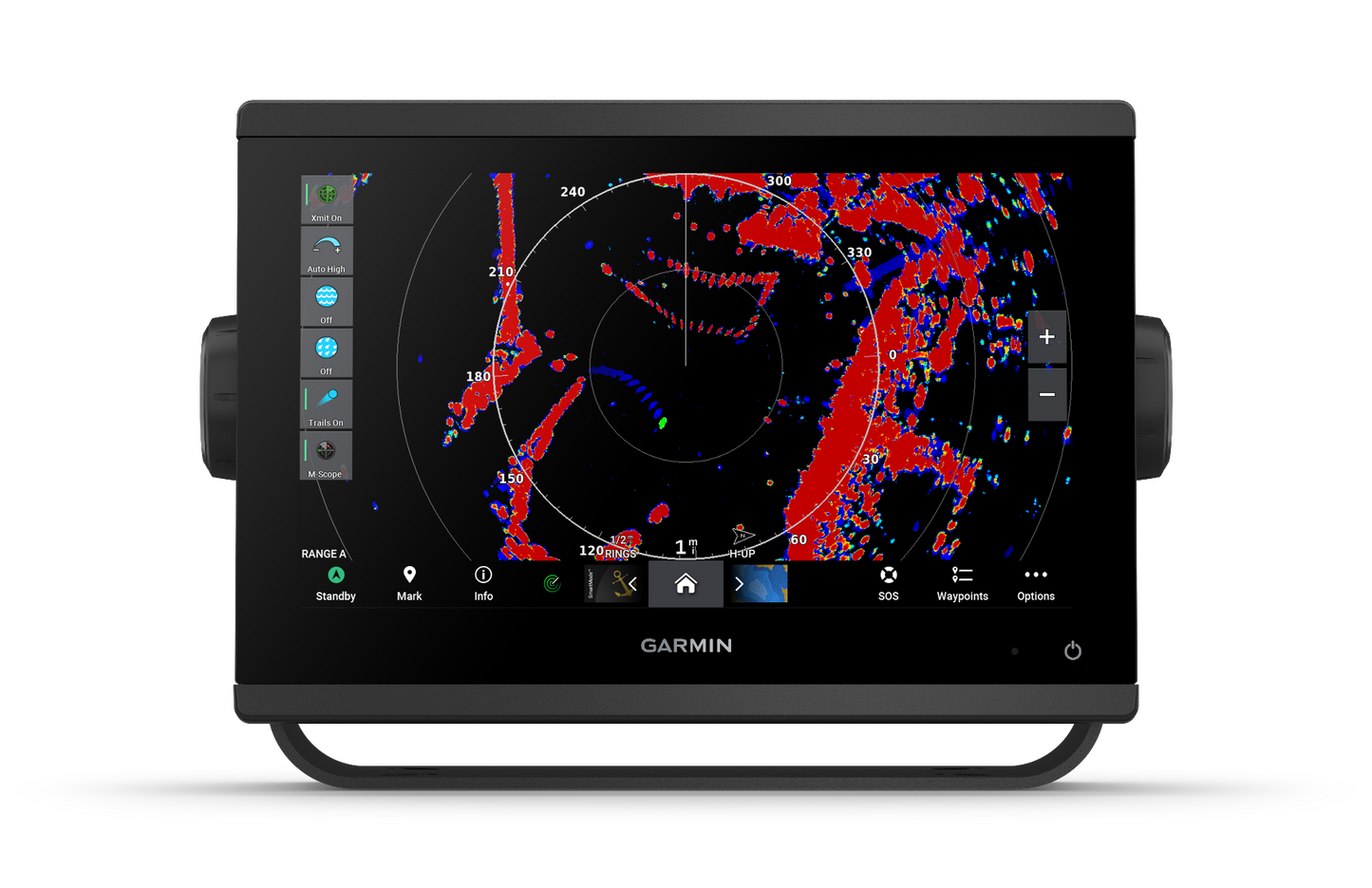

• 4 kW GMR 18 HD+ compact dome radar system providing 4-nautical-mile detection range with weather overlay capabilities
• Preloaded BlueChart g3 coastal charts and LakeVü g3 inland lake maps covering major fishing and cruising destinations

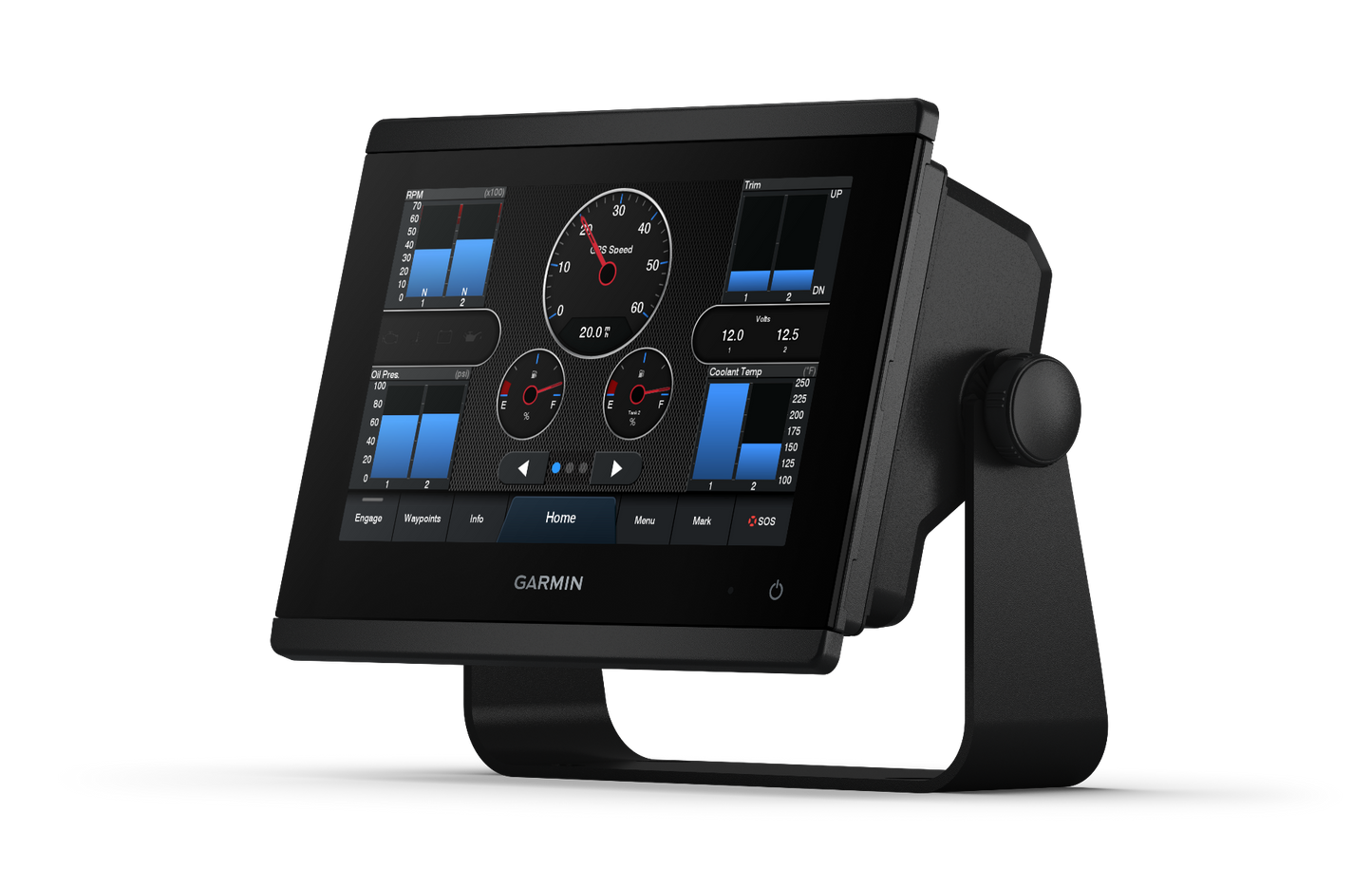

• OneHelm digital switching integration allowing simultaneous connection to multiple marine engines and network devices with unified control
• Garmin SailAssist feature set including layline display, true wind data fields, and performance metrics for competitive and recreational sailing applications
• ANT+ technology for wireless sensor connectivity to speed, heading, depth, and temperature instruments across the marine network

Data Insights

The GPSMAP 923xsv's sonar performance provides tangible advantages in fish-finding applications, with data showing approximately 40% greater detection efficiency when comparing Ultra High-Definition scanning to conventional sonar implementations. The expanded pixel density across the 9-inch touchscreen means navigational overlays, radar returns, and sonar imagery remain distinct even under high-glare conditions typical of open-water environments, reducing operator fatigue and decision-making lag during critical maneuvers.

Usage Instructions

Mount the display unit in a protected location with clear sightlines to the horizon and antenna mounting area. Connect the GMR 18 HD+ radome via the provided network cable and configure radar range settings according to your typical cruising distance. Synchronize with the ActiveCaptain app on your smartphone to receive real-time updates to charts, emergency alerts, and user-generated hazard reports. Enable map auto-zoom during active fishing or navigation, and schedule regular software updates through the device menu to ensure optimal sonar processing and chart accuracy.

Design & Material

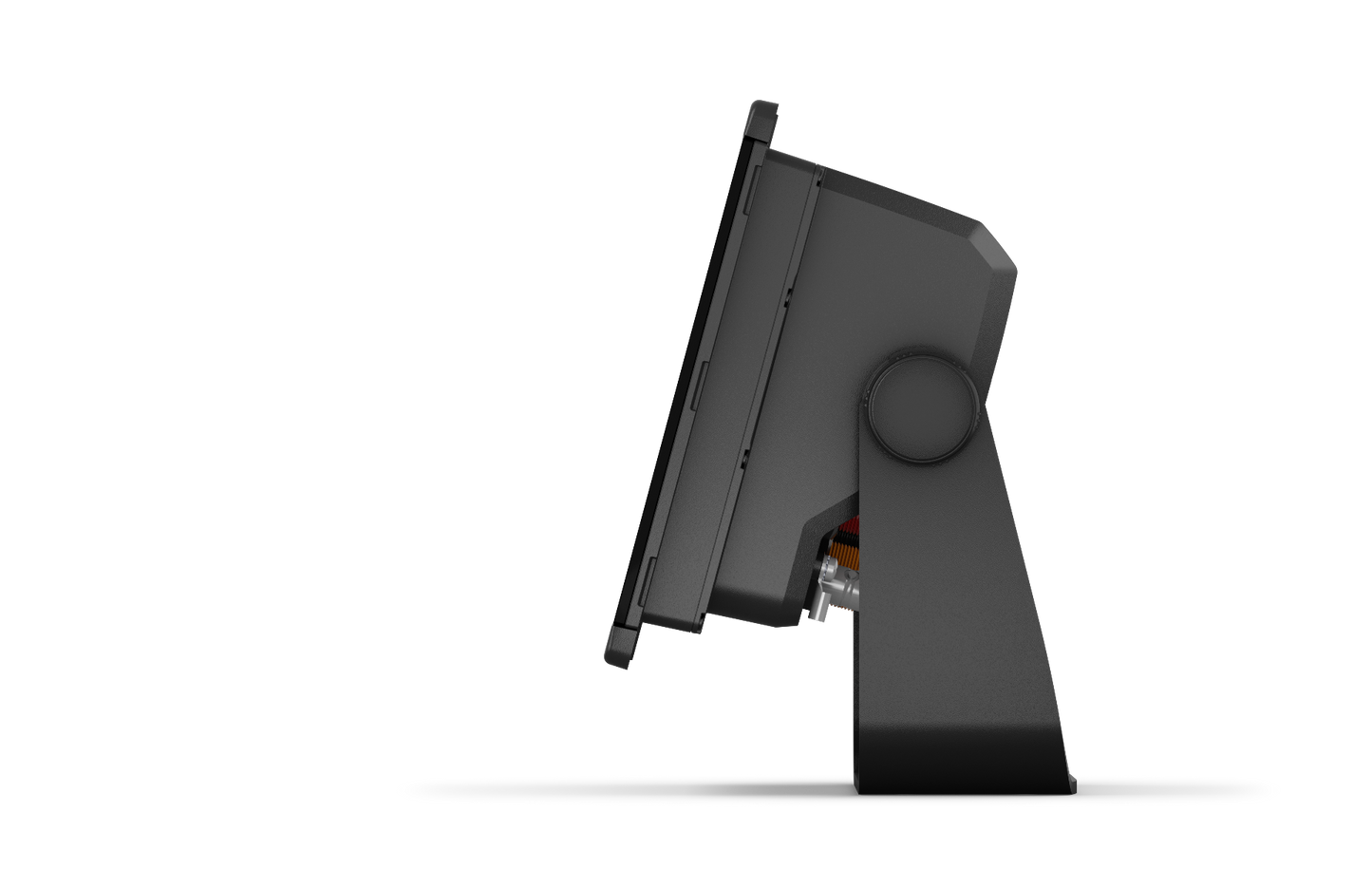

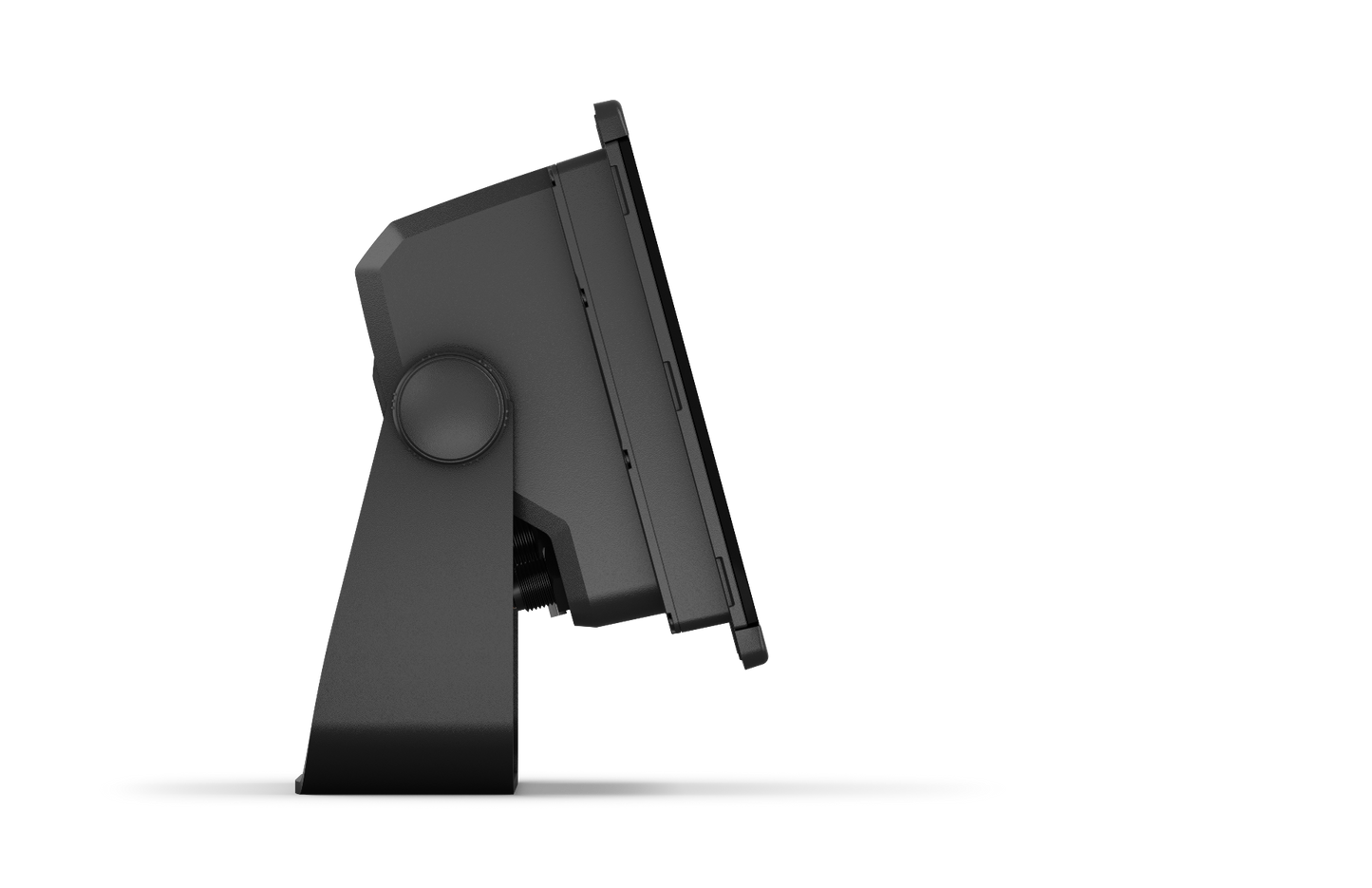

The GPSMAP 923xsv combines industrial marine aesthetics with functional engineering, featuring a compact footprint suitable for various helm configurations without requiring extensive rewiring of existing boat systems.

• Weather-resistant housing rated for salt-spray and splash exposure with sealed connector ports preventing water ingress into electronics
• Tempered glass IPS panel protecting the touchscreen while maintaining responsiveness and color accuracy even at viewing angles common in helm seating
• Anodized aluminum bezel providing corrosion resistance and dimensional stability across freeze-thaw cycles and thermal cycling

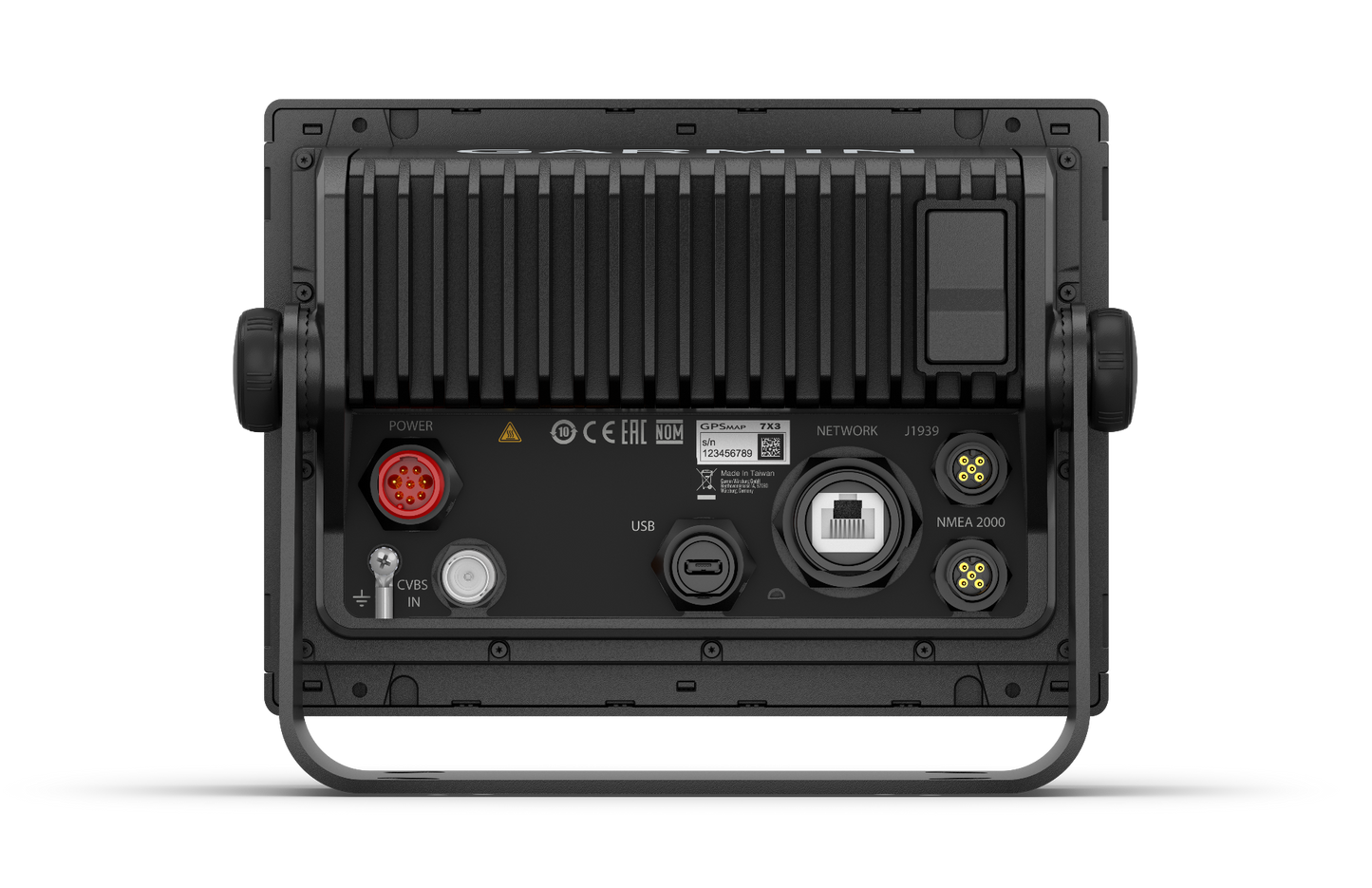

• Integrated antenna connectors and network terminations eliminating external cable clutter and reducing installation complexity

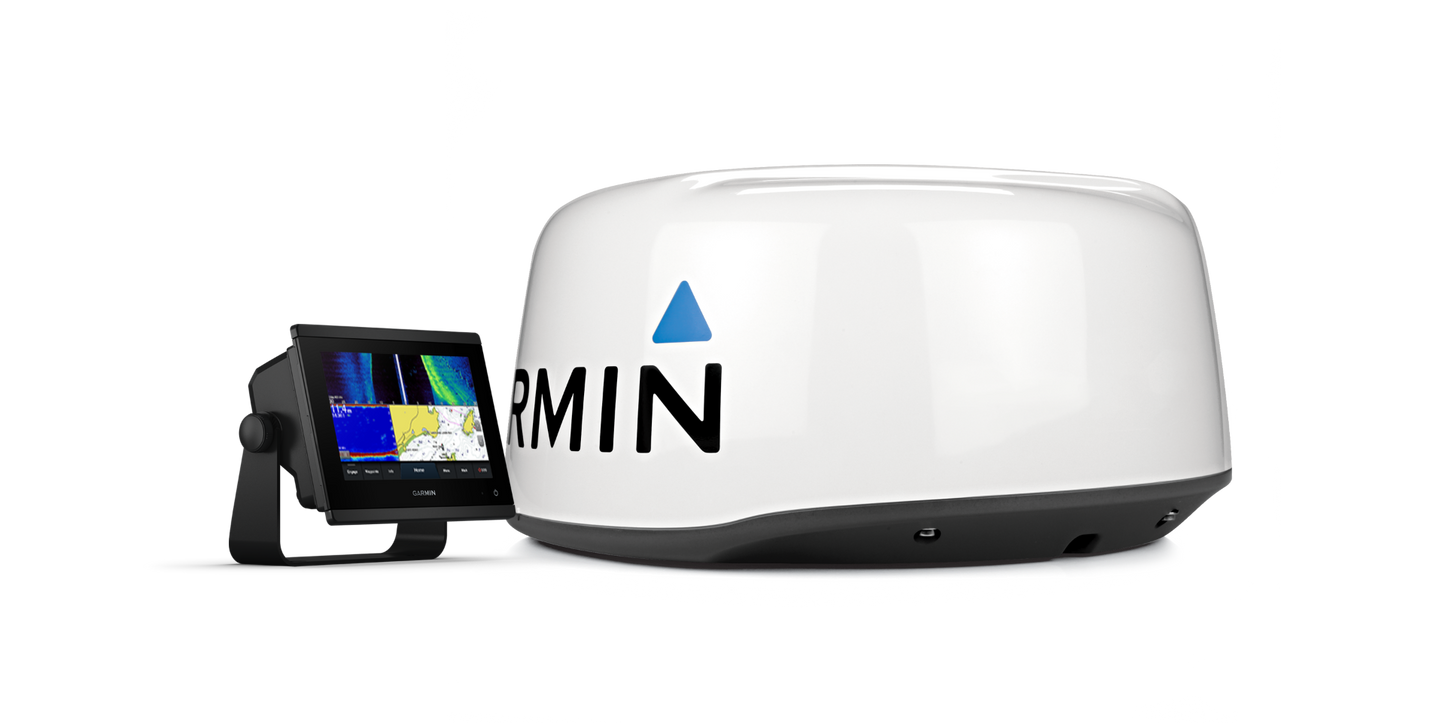

• Low-profile GMR 18 HD+ radome (approximately 24-inch diameter) with white gelcoat finish minimizing wind resistance and radar cross-section distortion
• Modular design allowing future hardware expansions through standardized Garmin marine network connectivity without system replacement

Final Verdict

The Garmin GPSMAP 923xsv with GMR 18 HD+ radome represents a complete marine electronics solution for operators who refuse to compromise between sonar performance, radar capability, and coastal navigation precision. The 40% sonar efficiency gain over legacy systems directly translates to more fish found per hour on the water, while the 4 kW radar delivers weather and traffic awareness extending miles ahead of your vessel. If you operate a fishing boat, offshore cruiser, or performance sailboat where real-time decision-making depends on accurate environmental data, this system eliminates the guesswork. Choose the GPSMAP 923xsv and invest in navigation technology that has earned trust across commercial fishing operations and professional maritime services worldwide.
