Garmin GSD 28 Sonar Module (010-02797-00) – High-Performance Deep-Water Fish Finder

Introduction

The Garmin GSD 28 Sonar Module delivers the sonar refresh speed and target clarity that serious offshore anglers need to locate and track fish in deep-water environments. Built to reveal underwater structure, baitfish movements, and game fish with exceptional real-time responsiveness, this high-powered sonar processor combines Garmin RapidReturn™ technology with dual-channel xCHIRP performance to provide detailed sonar imagery at extreme depths. Unlike conventional sonar modules that lag behind rapidly changing conditions, the GSD 28 processes sonar data significantly faster, enabling captains and anglers to respond immediately to fish movement and bottom structure changes in demanding offshore fishing scenarios.

Key Features

• Garmin RapidReturn™ sonar technology delivers 2 to 6 times faster ping rates compared to previous-generation GSD 26 systems for real-time underwater awareness
• Dual-channel xCHIRP sonar support with up to 3 kW output per channel for enhanced target separation and deep-water penetration
• Power output range of 300 W to 3 kW, allowing flexible configuration for various transducer setups and fishing applications
• Operating frequency range of 33–250 kHz across supported transducers for comprehensive sonar coverage from shallow to extreme depths
• Heave compensation compatibility with the optional MSC 10 external satellite compass to stabilize sonar returns during rough offshore conditions
• Broad transducer compatibility with Garmin and AIRMAR receiver options, supporting both new installations and retrofit applications
• IPX7 water-resistant construction to protect internal components from moisture exposure during extended offshore fishing trips

Data Insights

The GSD 28's RapidReturn technology fundamentally changes how anglers observe underwater activity. With sonar update rates 2 to 6 times faster than earlier systems, users see baitfish schools, individual fish movements, and bottom structure transitions with minimal delay. The dual-channel xCHIRP architecture improves target separation at extreme depths, allowing fishermen to distinguish between small baitfish and larger game species within dense schools. When paired with the MSC 10 satellite compass, the module actively compensates for wave motion and vessel movement, producing cleaner and more stable sonar returns that improve bottom tracking accuracy and reduce false readings in challenging sea states.

Usage Instructions

Install the GSD 28 according to Garmin marine installation guidelines and connect it to your compatible Garmin marine network system. Pair the module with appropriate Garmin or AIRMAR transducers matched to your vessel size, fishing environment, and target depths. For optimal performance in rough offshore conditions with significant wave action, integrate the optional MSC 10 external satellite compass to enable advanced heave compensation. Configure sonar settings including frequency selection, output power, and sensitivity levels based on water depth, target species, and bottom composition. Maintain regular inspection of all network connections and transducer cables to ensure reliable long-term operation and signal integrity.

Design & Material

The GSD 28 features a rugged, compact design engineered specifically for the demanding marine environment where recreational and professional offshore fishing operations take place. Built with durability as a core design principle, this sonar module integrates seamlessly into existing Garmin marine electronics systems while maintaining independence through flexible transducer configuration options.

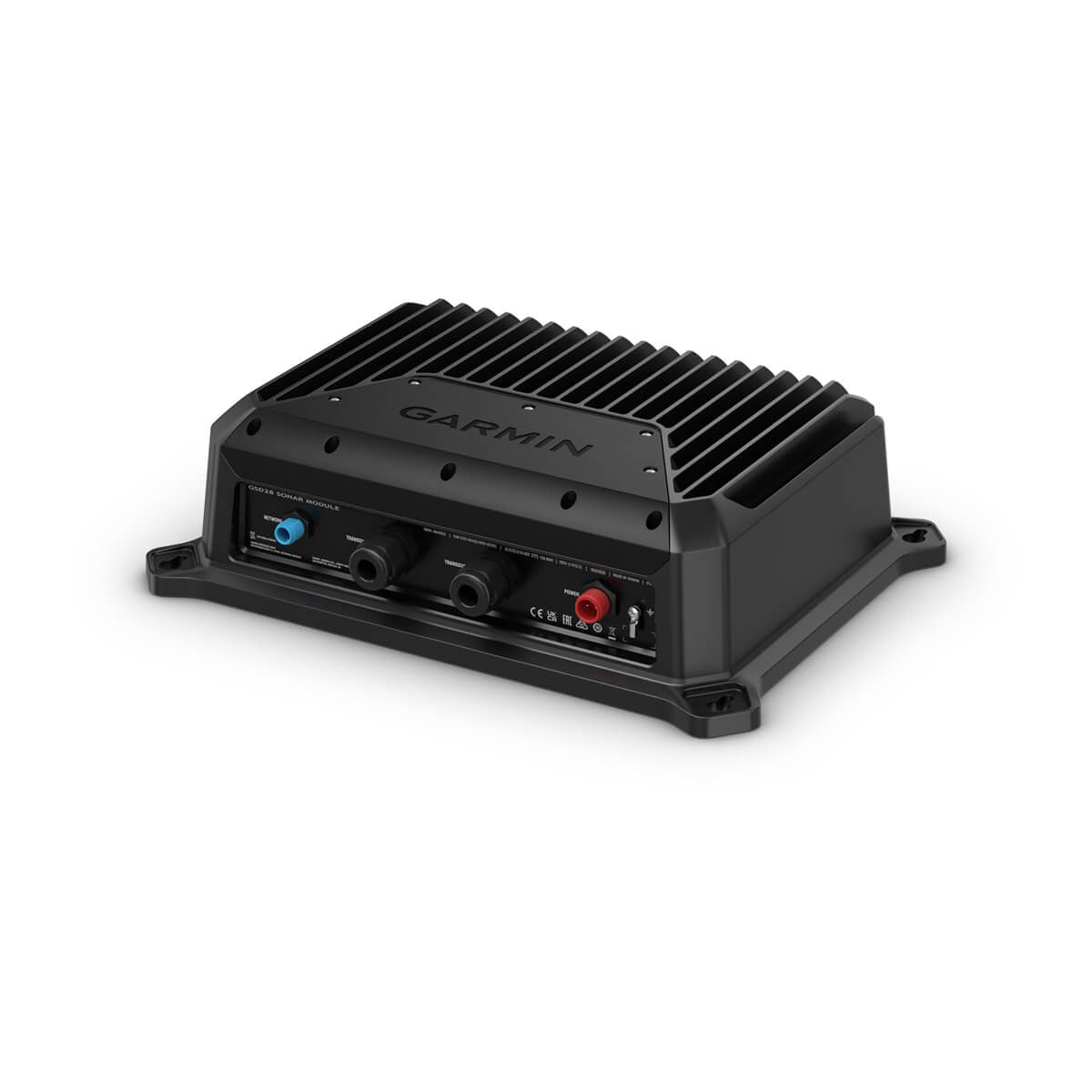

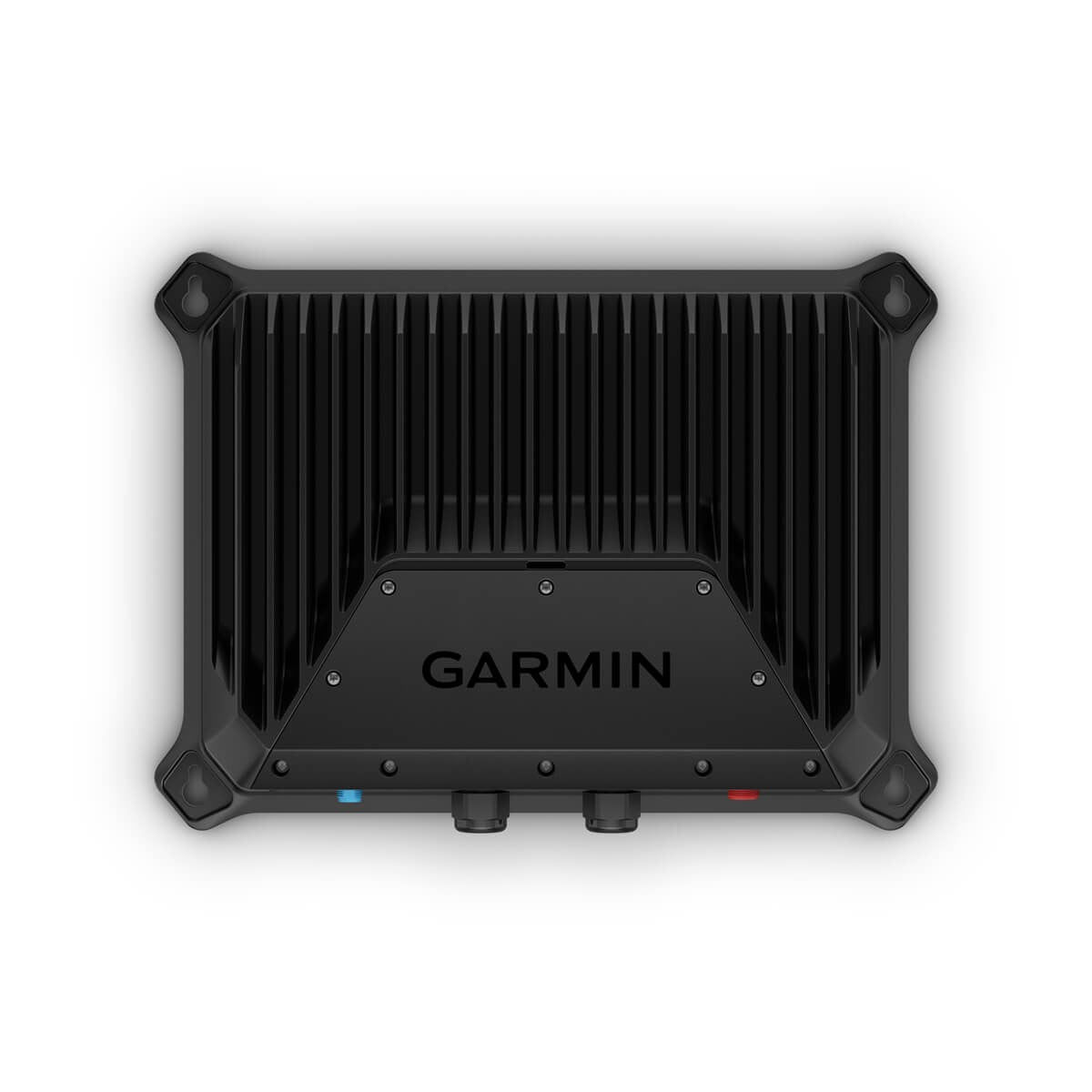

• Rugged die-cast aluminum housing with large ribbed heatsink fins designed for passive cooling in marine environments
• IPX7 water-resistant enclosure rated for moisture exposure and splash protection during marine operations
• Heavy-duty mounting system with integrated fastening points for secure installation on fishing vessels

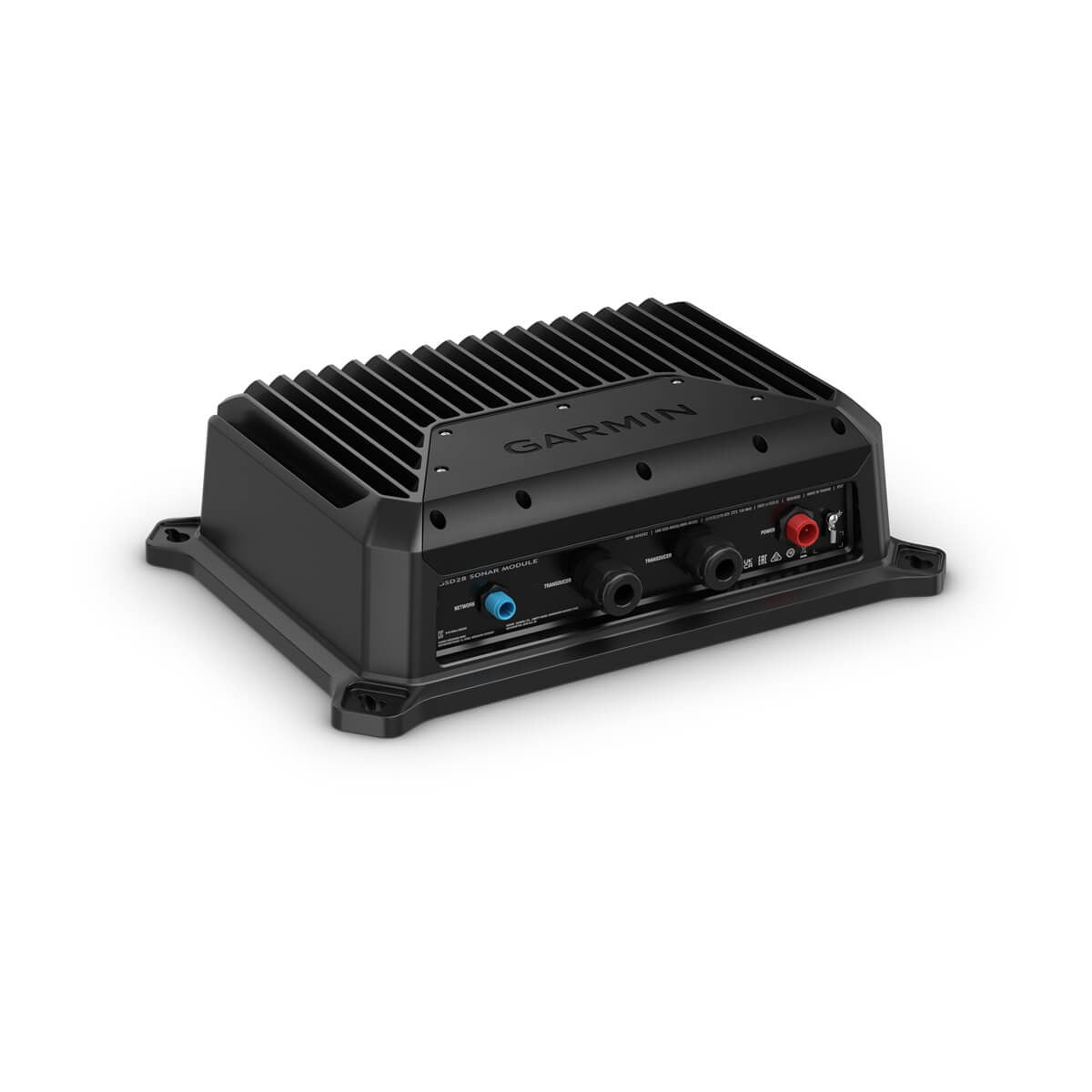

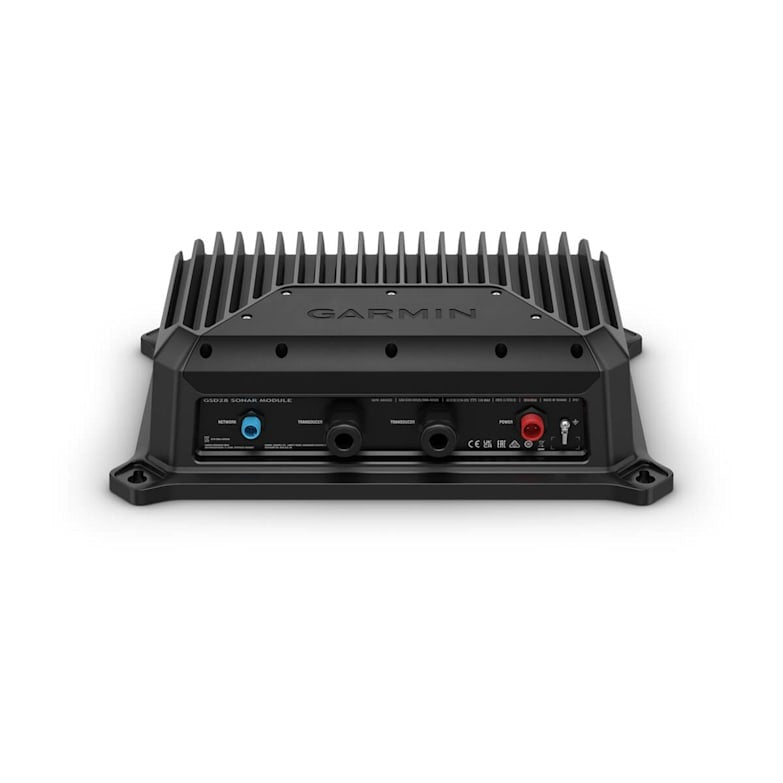

• Marine-grade connector interfaces with color-coded input and output terminals for simplified wiring and network integration
• Professional-grade construction supporting both boat builder and retrofit aftermarket installations on existing sonar systems
• Compact modular form factor designed for efficient electrical panel integration and minimal onboard space requirements

Final Verdict

For serious offshore anglers, charter captains, and sport fishing operations requiring real-time sonar performance at extreme depths, the Garmin GSD 28 Sonar Module represents a significant upgrade in underwater visibility and target identification capability. The combination of RapidReturn ping acceleration, powerful dual-channel xCHIRP processing, optional heave compensation, and broad transducer compatibility creates a sonar solution specifically built for the challenges of deep-water fishing. Whether upgrading an existing Garmin system, outfitting a new build, or replacing aging sonar electronics on a fishing vessel, the GSD 28 delivers the speed and precision needed to maximize time on productive structure and improve catch success in demanding offshore environments. Invest in the GSD 28 to transform how you read and respond to underwater conditions.
