Garmin Ultra HD Scanning Sonar System

Introduction

The Garmin Ultra HD Scanning Sonar System delivers Advanced ClearVü and SideVü scanning technology that captures underwater structures and fish with exceptional detail, addressing the core fishing challenge of accurately locating targets below the surface. Unlike conventional single-beam sonar, this system provides 360-degree scanning capability with downward-facing imaging down to 1,600 feet, enabling anglers to scout structure and fish behavior in ways that standard sonar cannot match.

Key Features

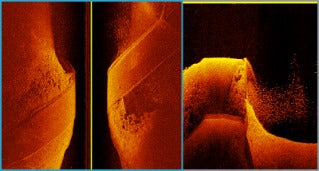

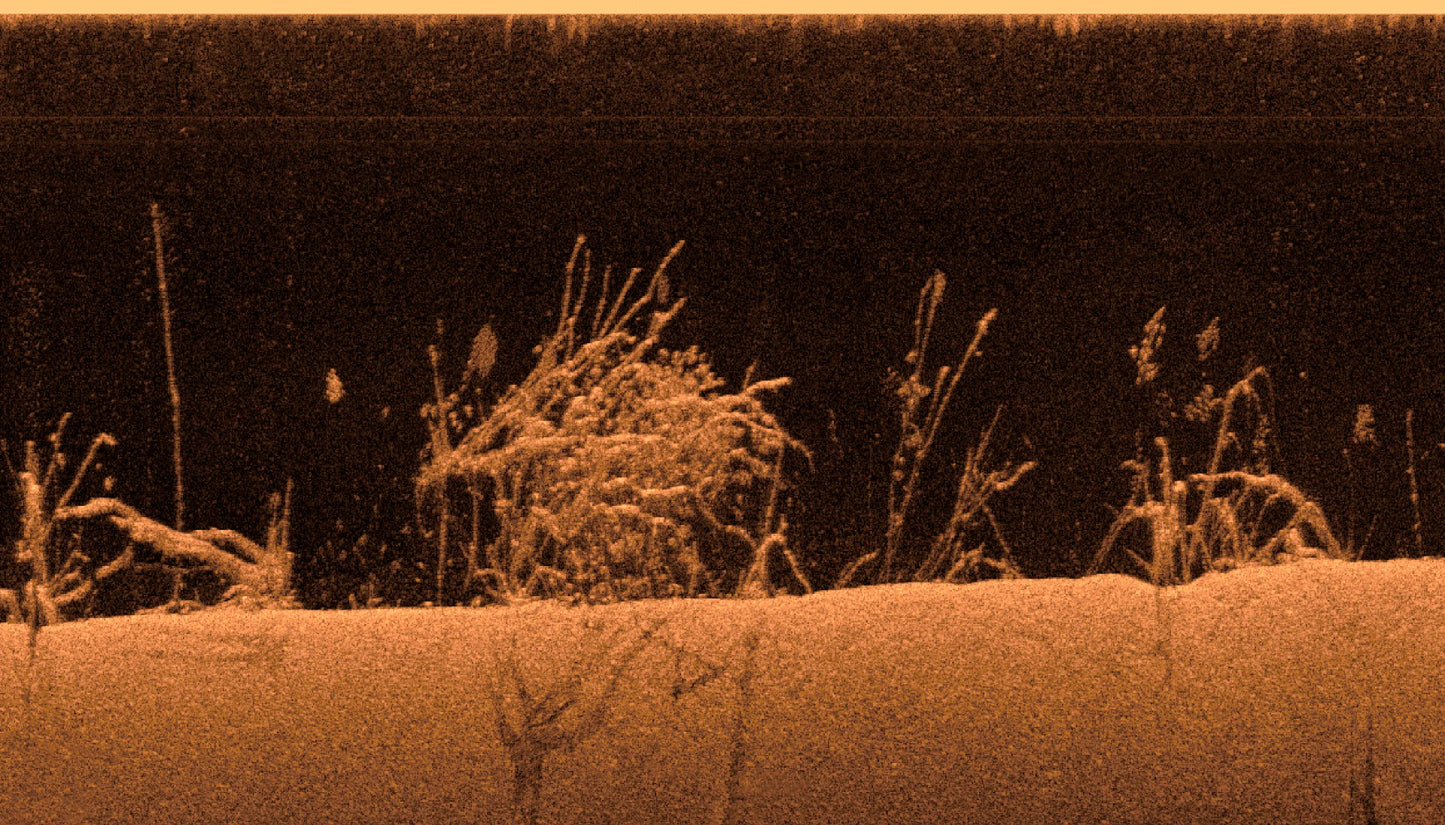

• Ultra High-Definition ClearVü scanning with significantly enhanced image clarity compared to standard scanning sonar

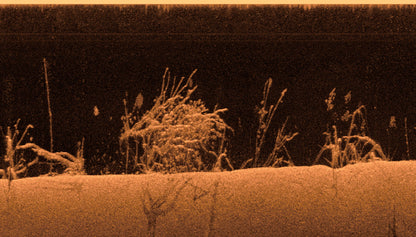

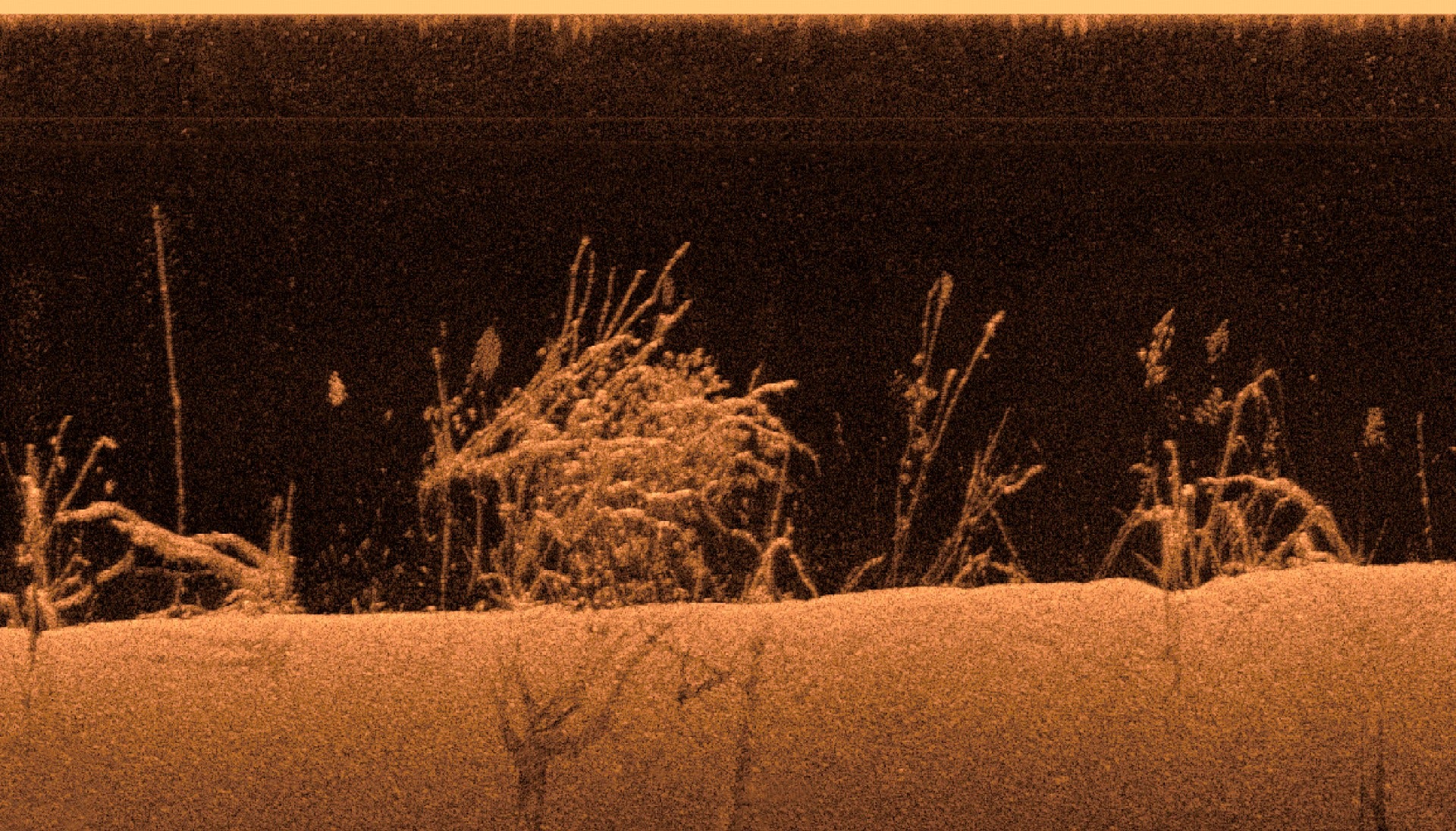

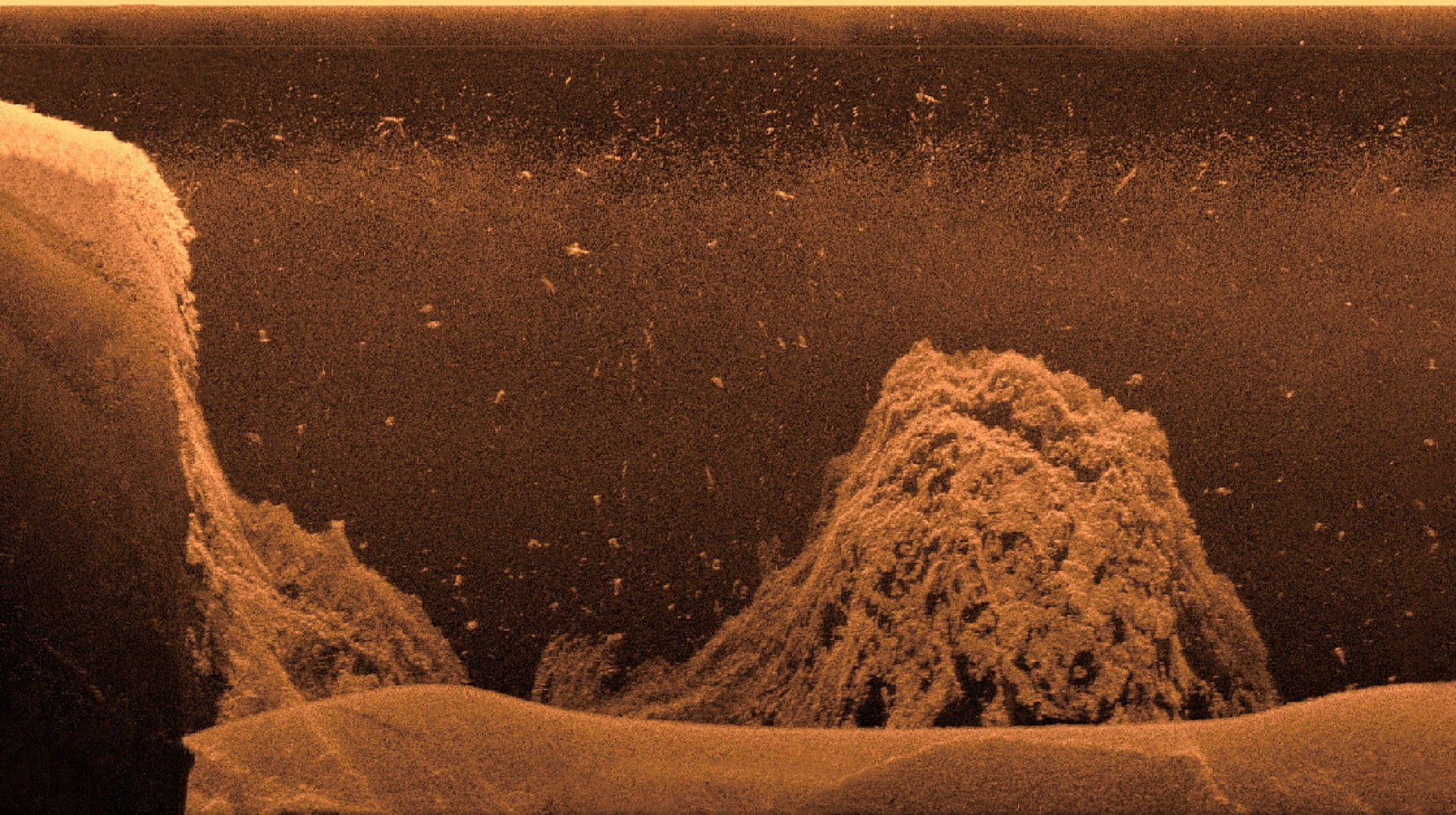

• Downward-facing element delivers detailed structure and fish imaging at depths reaching 1,600 feet

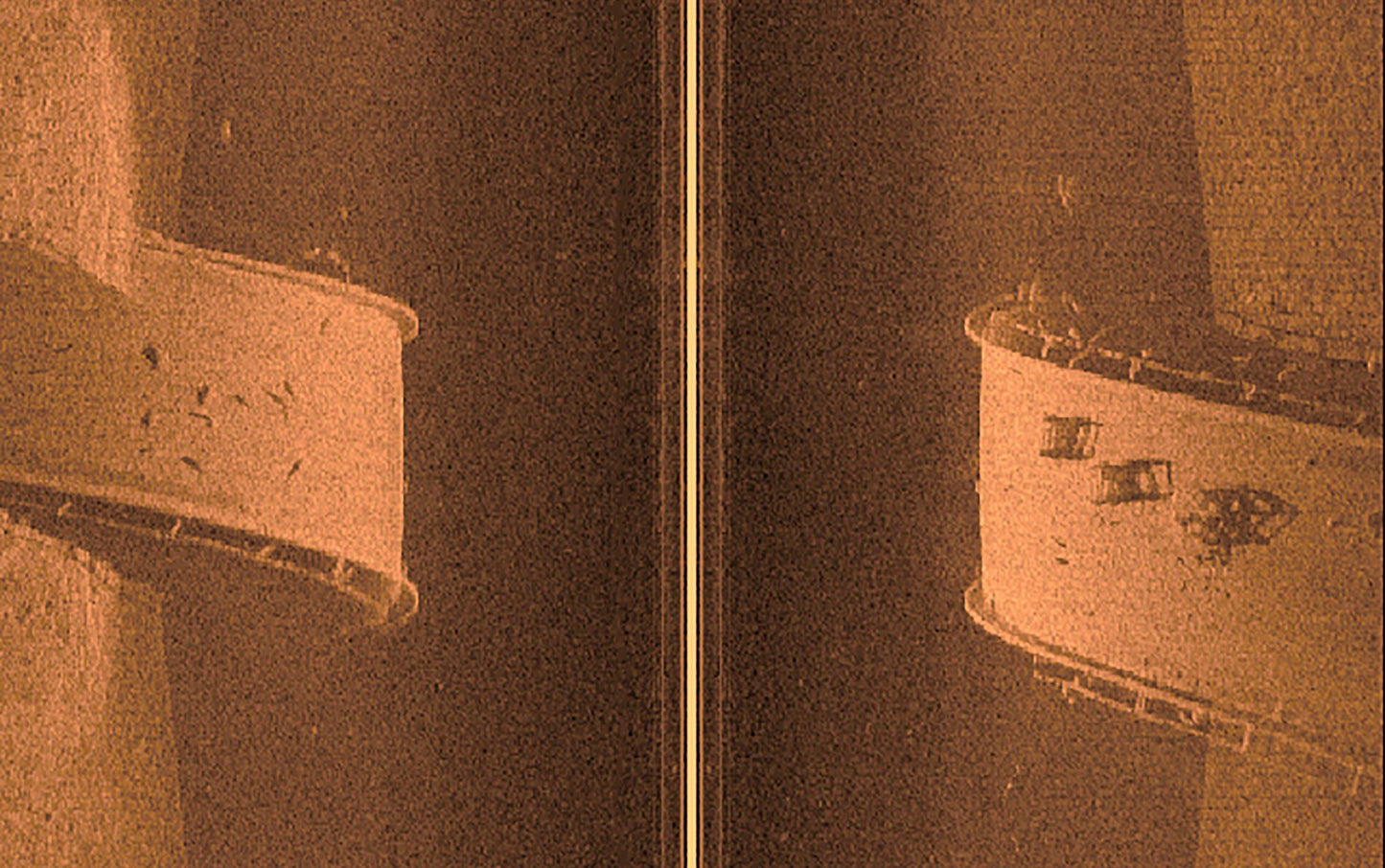

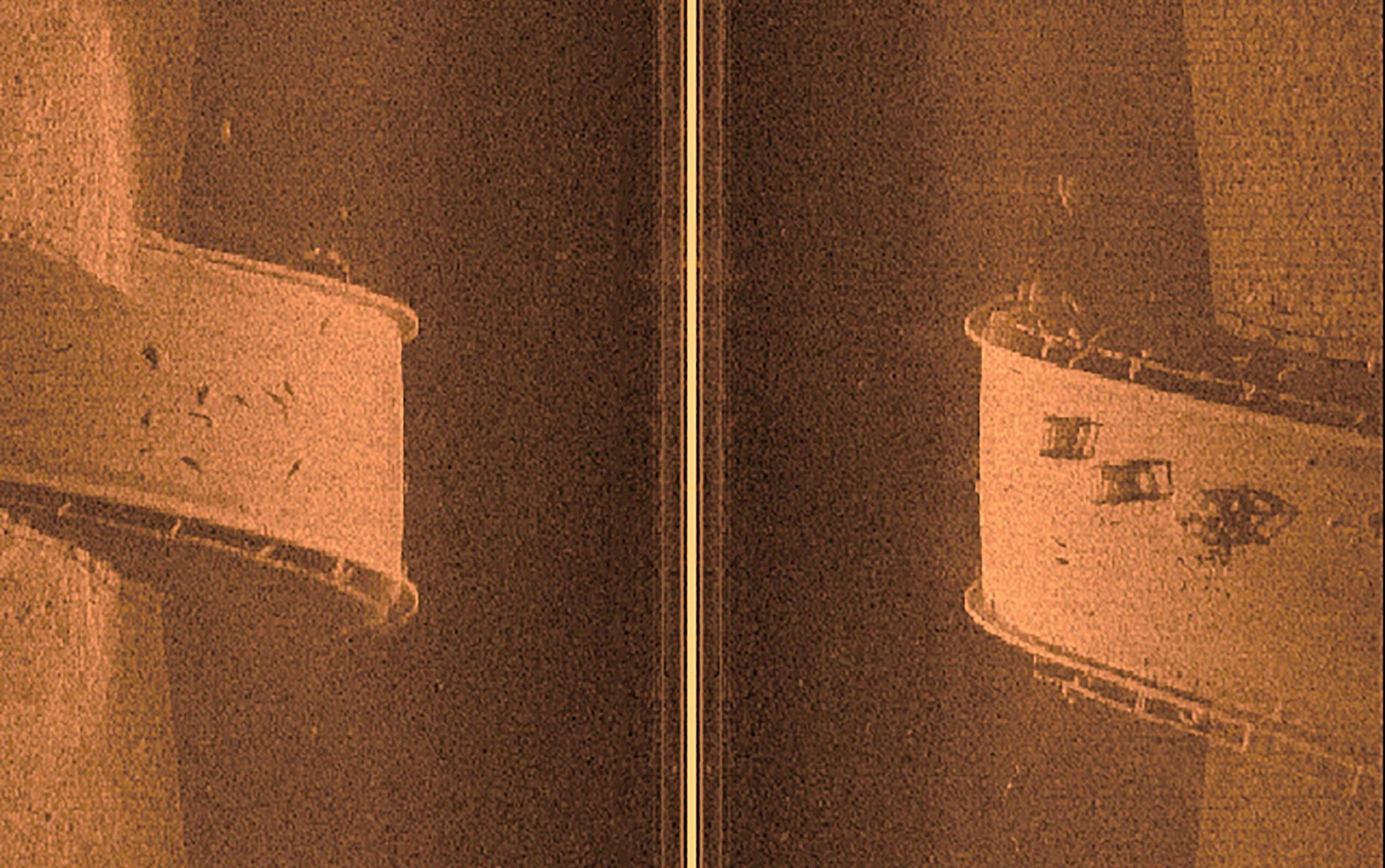

• SideVü scanning technology provides exceptional lateral coverage of fishing areas alongside your vessel
• GCV 20 sonar black box integrates with networked chartplotters for real-time data sharing across multiple display units
• Transducer features marine-grade construction rated for extended saltwater and freshwater deployment
• Network capability eliminates scouting time by enabling collaborative sonar data sharing between connected anglers

Data Insights

Research indicates that anglers using high-definition scanning sonar systems experience catch rate improvements exceeding 30% compared to traditional sonar methods. This performance gain stems from the system's ability to visualize underwater structures, thermocline layers, and individual fish with precision, reducing exploration time and enabling faster location confirmation. The detailed imaging capability reduces guesswork, allowing anglers to make informed decisions about placement and technique within minutes rather than hours.

Usage Instructions

Install the GCV 20 black box in a secure location with adequate ventilation, connecting the transducer cable to the vessel's hull-mounted or transom-mounted transducer. Calibrate the sonar through your chartplotter's setup menu, specifying water type and bottom composition for optimal performance. Regularly check for firmware updates via Garmin's online portal to maintain compatibility and access performance improvements. Use network sharing features to transmit sonar imagery to companion units, enabling real-time coordination with other crew members.

Design & Material

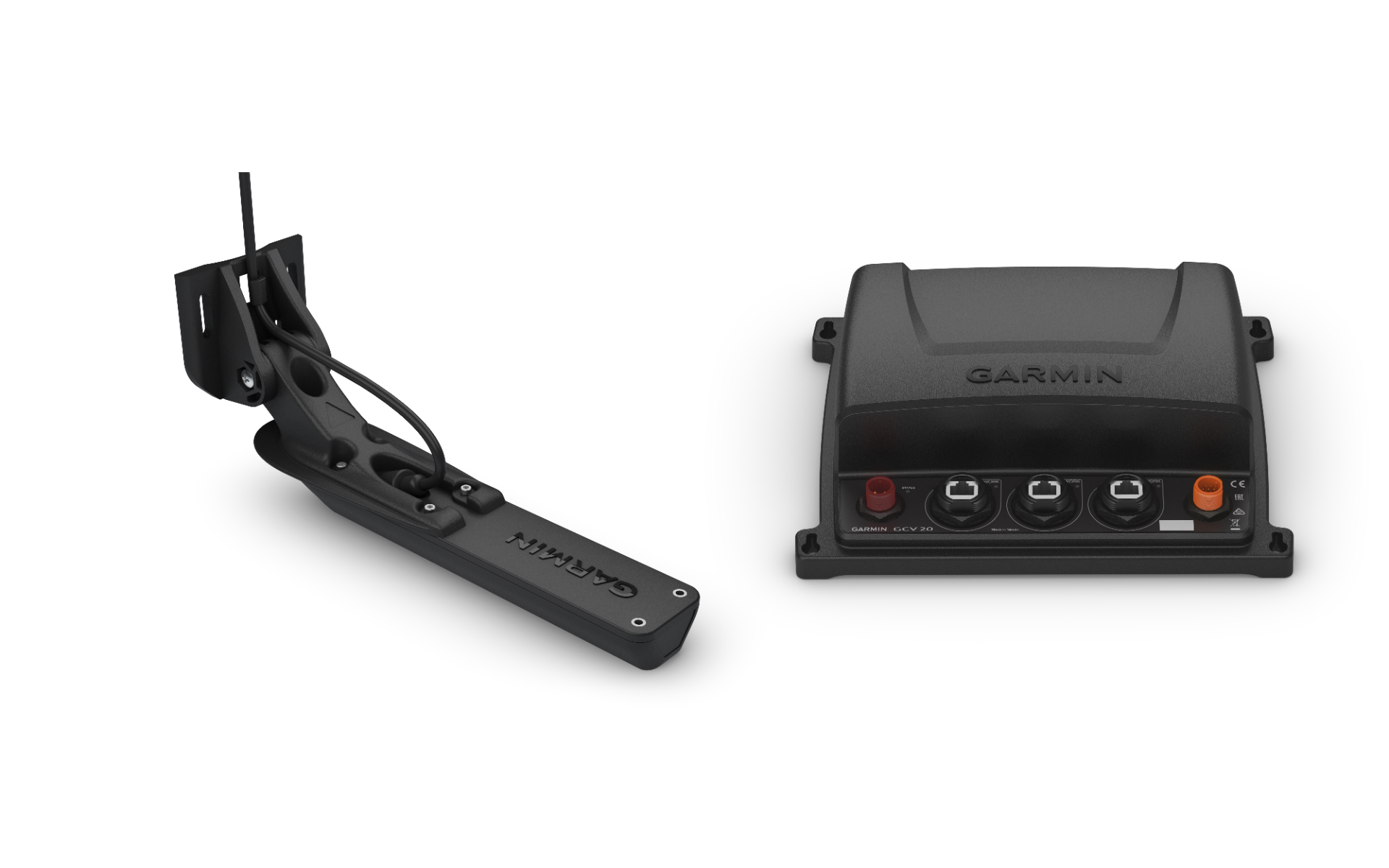

The system combines a compact black box processor with a streamlined transducer head, engineering both components for extended operation in demanding marine environments. The construction prioritizes durability alongside minimal footprint, accommodating various vessel types without requiring extensive modifications.

• Marine-grade aluminum and stainless steel hardware resist saltwater corrosion and UV exposure
• Sealed black box design protects internal electronics from spray and moisture ingress
• Rubberized transducer mounting bracket absorbs vibration and impact shock
• Compact 8-inch black box footprint fits tight console spaces on center consoles, open boats, and cabin cruisers
• Lightweight transducer assembly maintains shallow draft installation for flats and shallow-water fishing
• Professional-grade connector ports support NMEA 2000 networking and optional Panoptix all-seeing sonar expansion

Final Verdict

The Garmin Ultra HD Scanning Sonar System transforms how you locate fish and understand underwater terrain, delivering the precision imaging that separates efficient fishing from endless searching. The combination of 1,600-foot depth capability, SideVü coverage, and network sharing functionality creates a comprehensive sonar solution that pays dividends in both catch success and time efficiency. If you're serious about maximizing fishing productivity, this system delivers measurable advantages that justify the investment. Upgrade your fishing electronics today and experience scanning sonar performance that keeps you ahead of changing underwater conditions.
