Garmin AIRMAR B175HW 20° Tilt Transducer (010-12181-22) – Flush-Mount Bronze Thru-Hull Sonar

Introduction

The Garmin AIRMAR B175HW 20° Tilt Transducer delivers 1 kW of sonar power in a flush-mounted bronze housing designed to eliminate installation complexity while maintaining full underwater performance. Unlike conventional transducers that require external fairing blocks to compensate for hull angles, the B175HW integrates a 20° tilted ceramic element directly into its housing, automatically aligning with typical hull deadrise on fiberglass and wooden vessels. The thru-hull mounting extends less than 1/4 inch beyond the hull, reducing hydrodynamic drag while remaining safe for trailer rollers and bunks—a critical advantage for boats that spend as much time on the water as they do at the launch ramp.

Key Features

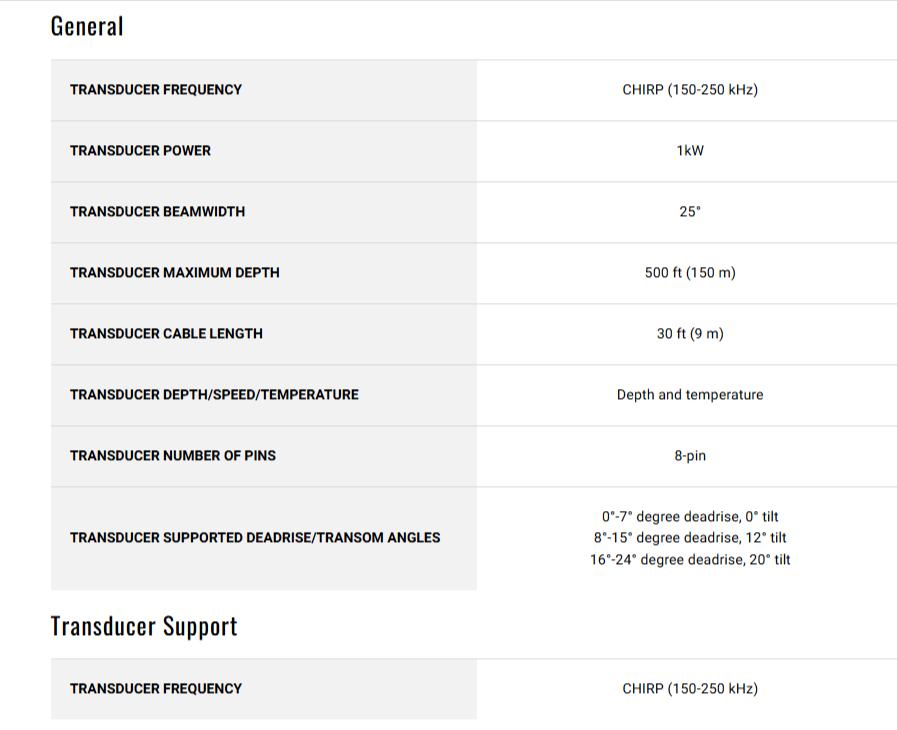

• High-power sonar output delivers up to 1 kW of transmission power for deep-water performance
• Operating frequency range spans 150–250 kHz with high wide-band capability for precise target separation and crisp fish detection
• Maximum depth penetration reaches 150 metres on compatible Garmin chartplotters and fishfinders
• Integrated 20° tilted ceramic element automatically compensates for hull deadrise, eliminating fairing block installation and reducing hull modifications
• Flush-mounted bronze housing protrudes less than 1/4 inch from hull, minimizing drag and protecting transducer during launching and trailering
• 8-pin connector provides plug-and-play integration with supported Garmin sonar systems including Echomap and Force series units

Data Insights

The B175HW's combination of 1 kW power delivery and wide-band 150–250 kHz frequency range produces superior underwater imaging compared to single-frequency transducers. The 20° integrated tilt eliminates typical 2–3 hour installation procedures required for fairing block alignment, while the low-profile bronze housing significantly reduces drag compared to conventional dome-shaped designs. On average, anglers report detecting fish targets at depths beyond 100 metres with reliable detail, and the high frequency bandwidth allows for 40+ degree beam patterns that cover broader search areas without power loss.

Usage Instructions

Begin by selecting a thru-hull mounting location on the boat's transom or starboard side, ensuring clearance from running gear and ventilation ports. Follow the supplied installation manual to drill the hull opening to exact specifications and install the transducer housing with the integrated gasket seal. Connect the 8-pin transducer cable to your compatible Garmin chartplotter or standalone fishfinder, then run the cable through existing conduit or along the hull to the display unit. After initial setup, configure the transducer frequency and sonar gain settings within your Garmin device menu, then conduct a test run in shallow water to verify proper signal reception before heading into deep water or offshore environments. Perform monthly visual inspections of the bronze housing and connector for salt spray corrosion, and rinse the transducer with fresh water after every saltwater trip.

Design & Material

The B175HW features precision marine-grade bronze construction engineered for prolonged seawater exposure and mechanical durability. Its streamlined thru-hull profile balances hydrodynamic efficiency with robust component protection, while the internal 20° ceramic element alignment ensures consistent sonar beam geometry across all operating frequencies without external calibration.

• Heavy-duty bronze housing resists galvanic corrosion and maintains structural integrity in saltwater environments
• Integrated 20° tilted ceramic sonar element requires no external fairing blocks or mechanical fairing block assemblies
• Flush-mount design extends less than 1/4 inch beyond hull surface, reducing hydrodynamic drag and vibration
• Watertight sealed gasket assembly prevents water ingress into the hull opening
• 8-pin stainless steel connector ensures reliable signal transmission with corrosion-resistant contact surfaces
• Optimized for fiberglass and wooden hull types; not recommended for aluminum or steel vessels without additional compatibility consultation

Final Verdict

The Garmin AIRMAR B175HW 20° Tilt Transducer is an essential upgrade for anglers and boat owners seeking professional-grade sonar performance without fairing block complications. Its flush-mounted bronze design, integrated 20° tilt compensation, 1 kW power capability, and deep 150-metre depth penetration deliver the accuracy needed for offshore fishing, coastal navigation, and year-round sonar confidence on Garmin-compatible systems. If you run a fiberglass or wooden hull and want transducer installation to take hours instead of days—while maximizing performance and eliminating drag—the B175HW is the proven choice.
