Garmin AIRMAR M265LH In-Hull CHIRP Transducer (010-12380-20)

Introduction

The Garmin AIRMAR M265LH is a 1 kW in-hull CHIRP transducer that delivers professional-grade sonar performance without requiring hull drilling or external thru-hull fittings. Designed for fiberglass boats, this transducer operates on dual CHIRP frequencies to handle both deep offshore waters and shallow-water structure detection, making it ideal for anglers who want powerful imaging capability while preserving hull integrity and reducing drag exposure.

Key Features

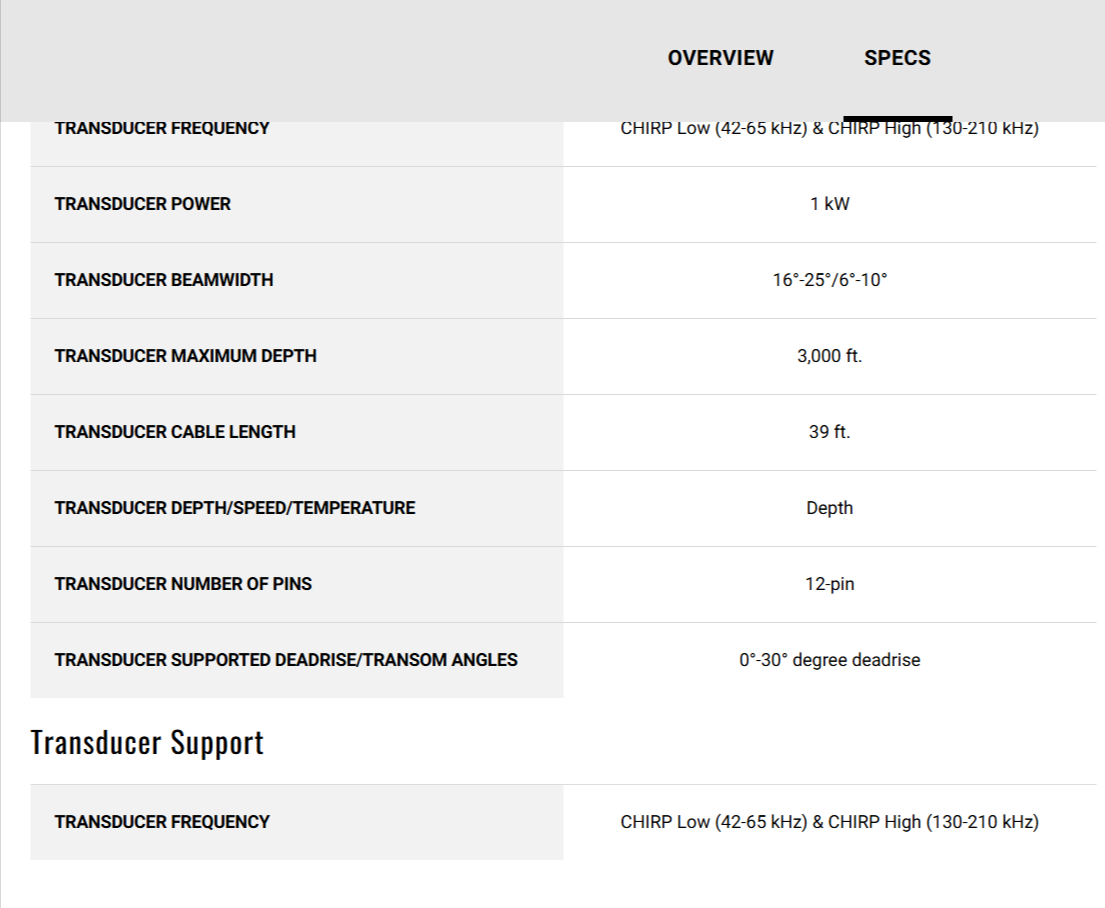

• 1 kW power output with dual CHIRP frequency operation (42–65 kHz low frequency and 130–210 kHz high frequency)
• Low-frequency beamwidth of 16°–25° for deep-water penetration with excellent target separation
• High-frequency beamwidth of 6°–10° for crisp detail and precise fish/structure identification
• Maximum operating depth of 3,000 feet with reliable bottom tracking in offshore conditions
• In-hull installation compatible with fiberglass hulls featuring hull deadrise angles from 0° to 30°
• No external transducer housing required—maintains smooth hull profile and reduces hydrodynamic drag

Data Insights

The M265LH's dual-frequency architecture delivers measurable performance advantages across fishing scenarios. The 42–65 kHz low CHIRP penetrates deep water effectively for offshore targeting, while the 130–210 kHz high CHIRP produces detailed imaging in shallow water, enabling anglers to distinguish individual fish from bait schools and structure with the narrow beamwidth design (16°–25° at low frequency, 6°–10° at high frequency). The 1 kW power rating places this among Garmin's best-performing in-hull transducers, supporting operation to 3,000 feet depth with consistent bottom lock and target definition across a wide range of water conditions.

Usage Instructions

Install the M265LH into the hull cavity according to Garmin and AIRMAR installation documentation provided with the unit. The transducer is designed specifically for in-hull mounting on fiberglass boats with hull deadrise between 0° and 30°. Connect the cable to a compatible Garmin sonar system, configure sonar settings according to your fishing environment, and inspect the installation periodically to maintain optimal acoustic coupling. Do not attempt installation on cored-hull vessels, as internal void spaces can degrade sonar transmission.

Design & Material

The M265LH features a compact in-hull design that houses premium CHIRP transducer elements within a protected chamber, eliminating external exposure and potential impact damage while maintaining full acoustic performance. The robust construction balances weight efficiency with marine-grade durability, offering clean integration for fiberglass hull vessels.

• 1 kW CHIRP transducer element with dual-frequency capability
• In-hull mounting design eliminates external thru-hull fitting and hull penetration
• Narrow beam technology optimizes fish target separation and bottom detail definition
• Marine-grade construction rated for saltwater and freshwater environments
• Compatible with Garmin sonar systems supporting in-hull transducer operation
• Reduced drag profile compared to external thru-hull transducers—preserves boat hydrodynamics

Final Verdict

The Garmin AIRMAR M265LH delivers 1 kW sonar performance without the commitment of hull drilling, making it the practical choice for boat owners who demand professional fish-finding imaging while protecting their vessel's structural integrity. With dual CHIRP frequencies spanning 42–210 kHz, narrow beam widths for precise targeting, 3,000-foot depth capability, and seamless integration with Garmin sonar systems, the M265LH provides the underwater clarity and reliability that serious offshore and coastal anglers depend on—backed by in-hull protection and minimal installation complexity.
