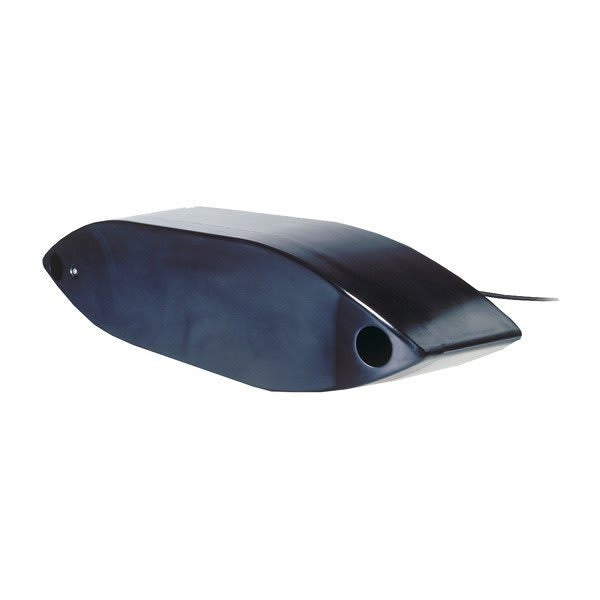

Garmin AIRMAR R109LM CHIRP Transducer (010-12809-20)

Introduction

The Garmin AIRMAR R109LM CHIRP Transducer is built for anglers who demand superior fish-finding performance and accurate underwater detail in coastal and offshore environments. Utilizing advanced low- and medium-frequency CHIRP technology, this transducer provides exceptional target resolution, allowing users to distinguish individual fish, bait schools, and underwater structures with remarkable clarity.

Designed specifically for larger vessels measuring 40 feet and above, the R109LM is compatible with fiberglass, wood, and metal hull constructions. Its advanced sonar capabilities enable deep-water operation down to 10,000 feet while maintaining the detail necessary to identify fish-holding structures and productive fishing zones.

Whether targeting offshore game fish, exploring deep-water terrain, or monitoring bait activity, the R109LM delivers the precision and performance required for successful fishing expeditions.

Key Features

Advanced CHIRP Sonar Technology

• Utilizes low- and medium-frequency CHIRP sonar for superior target detection.
• Produces clearer sonar returns and enhanced fish separation.
• Improves underwater visibility compared to traditional fixed-frequency sonar.

Dual-Frequency Performance

• Low-frequency operating range of 38–75 kHz.
• Medium-frequency operating range of 80–130 kHz.
• Optimized for a variety of fishing depths and conditions.

Exceptional Depth Capability

• Supports bottom tracking at depths up to 10,000 feet.
• Ideal for offshore fishing and deep-water exploration.
• Maintains reliable sonar performance in challenging environments.

Superior Fish Target Separation

• Distinguishes individual baitfish and game fish with impressive accuracy.
• Helps identify fish activity throughout the water column.
• Enhances the ability to locate productive fishing areas.

Structure Identification

• Reveals underwater structures, contours, and bottom composition.
• Provides detailed information for locating fish-holding habitats.
• Supports more informed fishing decisions.

Large Vessel Compatibility

• Designed for boats 40 feet and larger.
• Compatible with fiberglass, wood, and metal hulls.
• Suitable for professional and recreational offshore fishing vessels.

Performance Insights

The R109LM combines low-frequency and medium-frequency CHIRP sonar to deliver exceptional depth penetration and target resolution. The low-frequency range excels in deeper waters, providing strong bottom tracking and fish detection at significant depths, while the medium-frequency range improves target detail and separation.

This combination allows anglers to identify individual fish within bait schools, distinguish game fish from surrounding activity, and accurately interpret underwater structures. The transducer's ability to maintain performance down to 10,000 feet makes it particularly valuable for offshore applications where precise sonar data is critical.

By continuously sweeping across a range of frequencies, CHIRP technology generates cleaner sonar returns and more detailed underwater information than conventional sonar systems, improving overall fish-finding efficiency.

Usage Instructions

Install the R109LM according to Garmin and AIRMAR installation recommendations, ensuring proper placement for optimal sonar performance. Verify compatibility with the vessel's hull type and mounting requirements before installation.

Connect the transducer to a compatible Garmin marine electronics system and configure the appropriate sonar settings based on water depth and fishing conditions. Utilize the low-frequency range for deep-water applications and the medium-frequency range when enhanced target detail is required.

Regular inspection and maintenance of the transducer and mounting hardware will help ensure reliable long-term performance.

Design & Construction

The Garmin AIRMAR® R109LM is engineered for demanding marine environments and larger vessel applications. Its robust construction is designed to withstand offshore conditions while delivering consistent sonar performance over extended periods of operation.

Built for compatibility with fiberglass, wood, and metal hulls, the transducer provides installation flexibility across a wide range of vessel types. Its advanced acoustic design maximizes CHIRP sonar performance, helping anglers gain a clearer understanding of underwater environments.

Design Highlights

• Advanced low- and medium-frequency CHIRP technology
• Operating frequency range of 38–75 kHz (Low CHIRP)
• Operating frequency range of 80–130 kHz (Medium CHIRP)
• Bottom detection capability to 10,000 feet
• Exceptional fish target separation
• Enhanced structure and bottom identification
• Designed for boats 40 feet and larger
• Compatible with fiberglass hulls
• Compatible with wood hulls
• Compatible with metal hulls
• Offshore and coastal fishing optimized
• Professional-grade sonar performance

Final Verdict

The Garmin AIRMAR® R109LM CHIRP Transducer is an outstanding choice for serious anglers and marine professionals seeking exceptional deep-water sonar performance and target resolution. Its combination of low- and medium-frequency CHIRP technology provides remarkable fish detection, structure identification, and bottom tracking capabilities across a wide range of fishing environments.

With the ability to distinguish individual baitfish, game fish, and underwater structures while operating at depths up to 10,000 feet, the R109LM delivers the level of precision required for successful offshore fishing. For larger vessels seeking reliable, professional-grade sonar performance, this transducer represents a powerful and dependable solution.
