Garmin AIRMAR TM265LH Transducer (010-12378-20)

Introduction

The Garmin AIRMAR TM265LH is a high-output transom-mount transducer built for deep-water sonar where standard equipment falls short. Delivering 1 kW of sonar power, it penetrates to depths of 3,000 feet while maintaining the target resolution needed to distinguish individual fish from bait schools and bottom structure. This transducer is engineered for boat owners running offshore operations, targeting deep-water game fish, or managing marine expeditions where underwater visibility and bottom tracking demand premium performance.

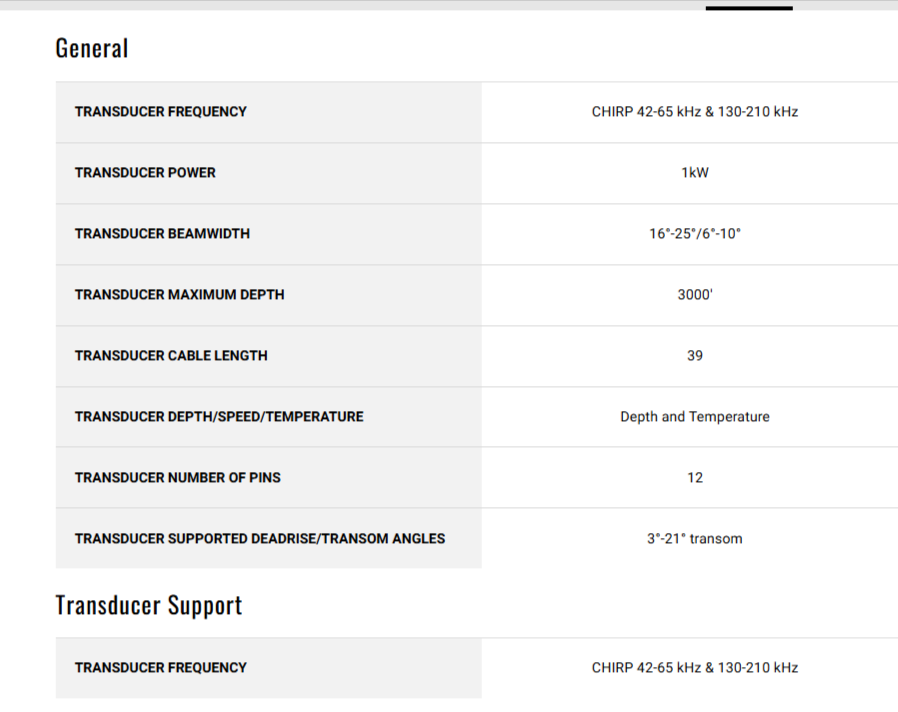

Key Features

• 1 kW high-power sonar output for maximum depth penetration
• Accurate depth readings up to 3,000 feet in challenging marine environments
• Dual CHIRP frequency technology: 42–65 kHz (low) and 130–210 kHz (high) for adaptive sonar performance
• Low-frequency beamwidth of 16°–25° for wide-area coverage and broad water column imaging
• High-frequency beamwidth of 6°–10° for precise target separation and detailed structure identification
• Transom-mount design compatible with transom angles between 3° and 21°
• Reliable bottom tracking and detailed water column imaging across varying depths
• Heavy-duty marine construction rated for demanding offshore and deep-water conditions

Data Insights

The combination of 1 kW output with dual CHIRP frequencies positions the TM265LH where deep-water sonar performance requires both penetration and clarity. The 42–65 kHz low-frequency range excels at depth, cutting through water column noise to track bottom contours and structure at extreme ranges. The high-frequency 130–210 kHz range operates simultaneously, delivering the 6°–10° narrow beamwidth necessary for resolving individual targets and defining bottom hardness. This dual approach eliminates the compromise between range and detail, enabling operators to survey deep offshore structure and detect pelagic species with confidence neither frequency alone can match.

Usage Instructions

Mount the TM265LH on a compatible transom positioned within the 3° to 21° angle specification, following the supplied installation guide to ensure secure attachment and proper transducer alignment. Connection to a compatible Garmin fishfinder or chartplotter is required; configure CHIRP sonar settings according to your water depth and target species. Verify operation before departing, and maintain consistent performance by inspecting and cleaning the transducer housing regularly to remove salt buildup and debris that can degrade sonar quality.

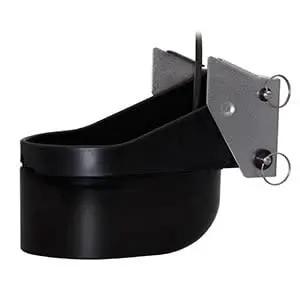

Design & Material

The TM265LH uses a durable transom-mount housing engineered for saltwater and freshwater environments where corrosion and impact are routine concerns. Its compact form factor and rugged construction support year-round operation without compromising sonar accuracy, while the heavy-duty mounting bracket accommodates standard transom configurations on fishing and commercial vessels.

• Transom-mount design rated for 3° to 21° transom angles
• 1 kW power handling with dual frequency-band capability
• Composite and metal construction designed for saltwater durability
• Dual CHIRP frequency coverage: 42–65 kHz and 130–210 kHz
• Adaptive beamwidth technology: 16°–25° (low frequency) and 6°–10° (high frequency)
• Integrated mounting bracket with corrosion-resistant hardware

Final Verdict

The Garmin AIRMAR TM265LH delivers professional-grade deep-water sonar in a form factor that fits standard fishing and marine vessels. If your operation demands accurate readings beyond 1,000 feet, clear target separation in deep structure, and reliable bottom tracking in demanding conditions, this 1 kW transducer eliminates the guesswork offshore fishing requires. Pair it with a compatible Garmin chartplotter or fishfinder and gain the underwater detail that transforms deep-water exploration from searching blind to fishing with certainty.
