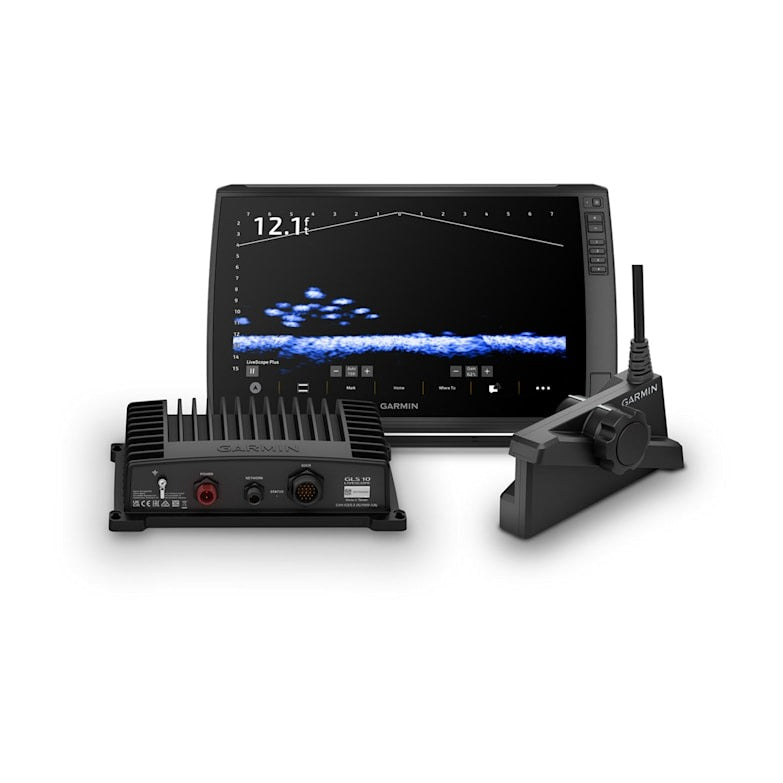

Garmin ECHOMAP™ Ultra 2 Ice House System Includes ECHOMAP™ Ultra 2 166sv Chartplotter and LiveScope™ Plus System (010-03386-02)

Introduction

The Garmin ECHOMAP™ Ultra 2 Ice House System is designed to transform the ice fishing experience with advanced sonar technology, detailed mapping, and a large, easy-to-read display. Combining the ECHOMAP Ultra 2 166sv chartplotter with the LiveScope Plus System, this complete package provides real-time sonar views, precise mapping, and flexible display options for serious anglers.

The system features a stunning 16-inch Full HD IPS touchscreen display that delivers crisp visuals and excellent viewing angles, even in challenging conditions. With support for HDMI output, users can share sonar and mapping data on a television or external monitor inside an ice house for enhanced visibility. Preloaded Garmin Navionics+ mapping provides extensive coverage of inland and coastal waters, helping anglers navigate confidently while locating productive fishing spots.

Key Features

Large Full HD Display

• 16-inch Full HD IPS touchscreen display for exceptional clarity and detail.
• Wide viewing angles provide excellent visibility throughout the ice house.
• Responsive touchscreen operation simplifies navigation and system control.

LiveScope™ Plus System

• Includes GLS™ 10 sonar black box and LVS34-IF transducer.
• Provides real-time sonar images with exceptional target separation and clarity.
• Helps identify fish movements and structure beneath the ice.

Dual LiveScope Viewing Modes

• Supports LiveScope Forward mode for scanning ahead of the fishing position.
• Supports LiveScope Down mode for viewing activity directly beneath the ice hole.
• Easily switch between modes using the included 0-degree pole mount.

Garmin Navionics+™ Mapping

• Preloaded with mapping for more than 25,000 inland and coastal lakes.
• Detailed contour information assists with locating productive fishing areas.
• Supports confident navigation and strategic fishing decisions.

HDMI Output

• Share sonar and mapping information on compatible TVs and external displays.
• Ideal for larger ice houses or group fishing setups.
• Enhances visibility and collaboration during fishing sessions.

Built-In Sonar Capabilities

• Supports advanced sonar functionality for use both on the ice and in open water.
• Delivers comprehensive underwater awareness for year-round fishing.

Performance Insights

The ECHOMAP Ultra 2 Ice House System delivers an immersive fishing experience by combining live sonar technology with advanced mapping and display capabilities. The LiveScope Plus System provides near real-time views of fish, structure, and lure movement, helping anglers react instantly to changing underwater conditions.

The large 16-inch display enhances visibility and detail, allowing users to monitor sonar returns, maps, and custom screen combinations simultaneously. The ability to switch between LiveScope Forward and Down modes offers greater flexibility, making it easier to adapt to different fishing techniques and environments.

With Garmin Navionics+ mapping covering thousands of lakes, anglers gain valuable insights into underwater contours and key fishing locations, helping improve efficiency and overall success on the water.

Usage Instructions

Set up the ECHOMAP Ultra 2 chartplotter and connect the included GLS 10 sonar module and LVS34-IF transducer. Mount the transducer using the supplied swivel pole and select either LiveScope Forward or LiveScope Down mode depending on your fishing strategy.

Use the touchscreen interface to customize sonar and mapping combinations, create personalized display layouts, and monitor fish activity in real time. For enhanced viewing inside an ice house, connect the system to a compatible television or external display through the HDMI output.

Leverage the preloaded Garmin Navionics+ maps to identify fishing hotspots, navigate unfamiliar waters, and improve overall fishing efficiency.

Design & Construction

The ECHOMAP Ultra 2 Ice House System is engineered for anglers who demand premium performance in cold-weather conditions. The included LVS34-IF transducer features a specialized cable that remains flexible in freezing temperatures, ensuring reliable operation throughout the ice fishing season.

The large Full HD IPS display provides exceptional image quality while maintaining excellent visibility from multiple viewing angles. Combined with the robust sonar hardware and versatile mounting system, the package is built to deliver dependable performance in demanding winter environments.

Design Highlights

• 16-inch Full HD IPS touchscreen display
• HDMI output for televisions and external monitors
• GLS™ 10 sonar black box included
• LVS34-IF LiveScope™ transducer with cold-weather flexible cable

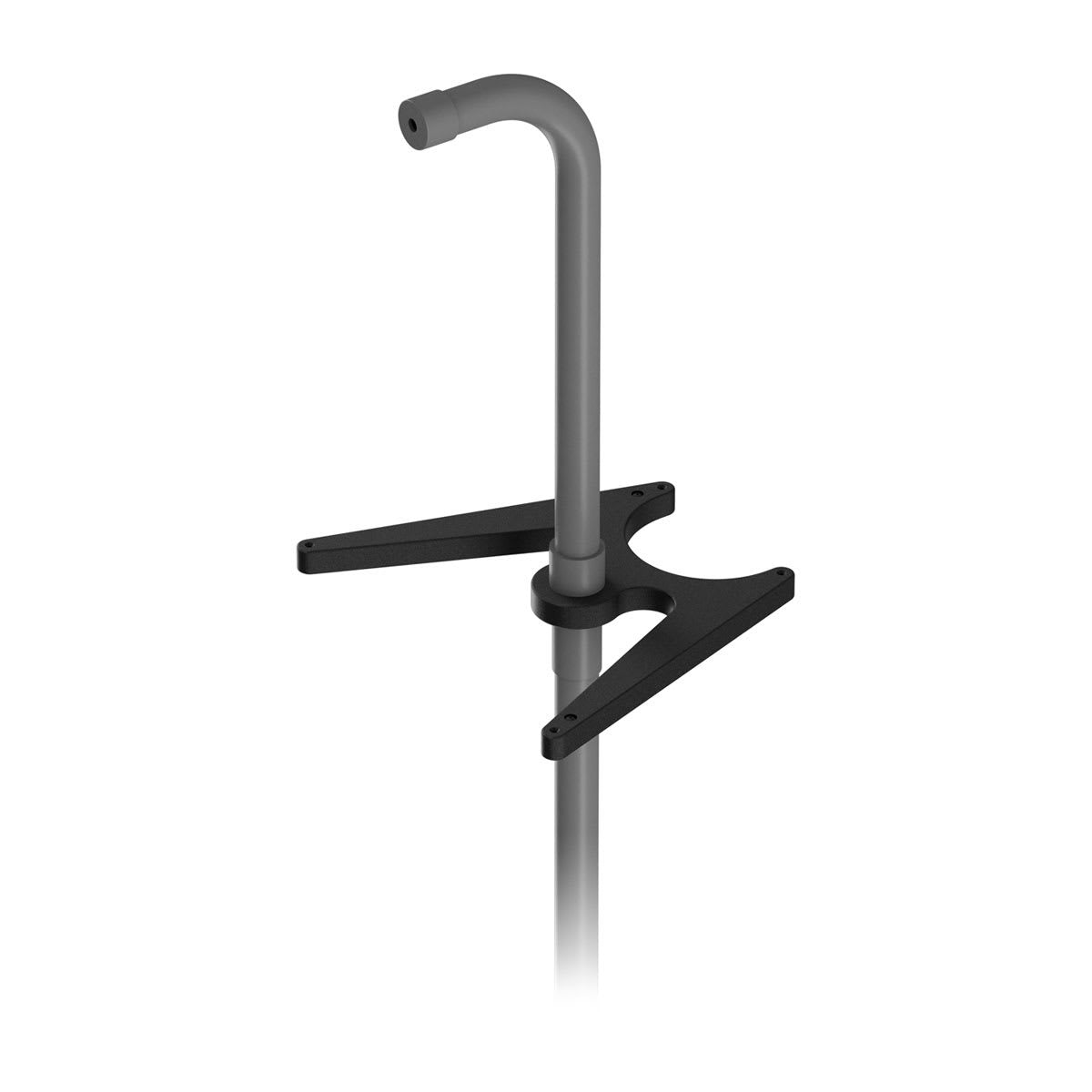

• Swivel pole mount for convenient positioning
• Quick switching between LiveScope Forward and Down modes
• Preloaded Garmin Navionics+™ mapping
• Customizable sonar and mapping display layouts
• Suitable for ice fishing and open-water applications

Final Verdict

The Garmin ECHOMAP™ Ultra 2 Ice House System is a premium all-in-one solution for dedicated ice anglers seeking the best in sonar imaging, mapping, and display technology. Its massive 16-inch Full HD touchscreen, advanced LiveScope Plus System, and extensive Garmin Navionics+ mapping coverage provide unmatched situational awareness beneath the ice.

Whether tracking fish movement in real time, analyzing underwater structure, or sharing sonar data on a larger screen, this system delivers the tools needed to fish more effectively and confidently. For anglers looking to maximize their ice fishing success with cutting-edge Garmin technology, the ECHOMAP Ultra 2 Ice House System is an exceptional investment.
