Garmin ECHOMAP Ultra 2 166sv Chartplotter with GT56UHD-TM Transducer

Introduction

The Garmin ECHOMAP Ultra 2 166sv delivers tournament-grade sonar imaging and navigation from one of the market's largest chartplotter displays at 16 inches Full HD. Built for anglers and captains who demand detailed underwater visibility and reliable positioning, this system pairs the included GT56UHD-TM transducer with advanced CHIRP sonar, Ultra High-Definition ClearVü™ and SideVü™ scanning technologies, and full LiveScope™ sonar compatibility. The expansive touchscreen combined with keyed assist controls handles rapid-fire sonar adjustments and chart navigation without the learning curve of smaller displays, making it practical for both day-to-day fishing and mission-critical navigation across inland lakes, coastal bays, and offshore waters.

Key Features

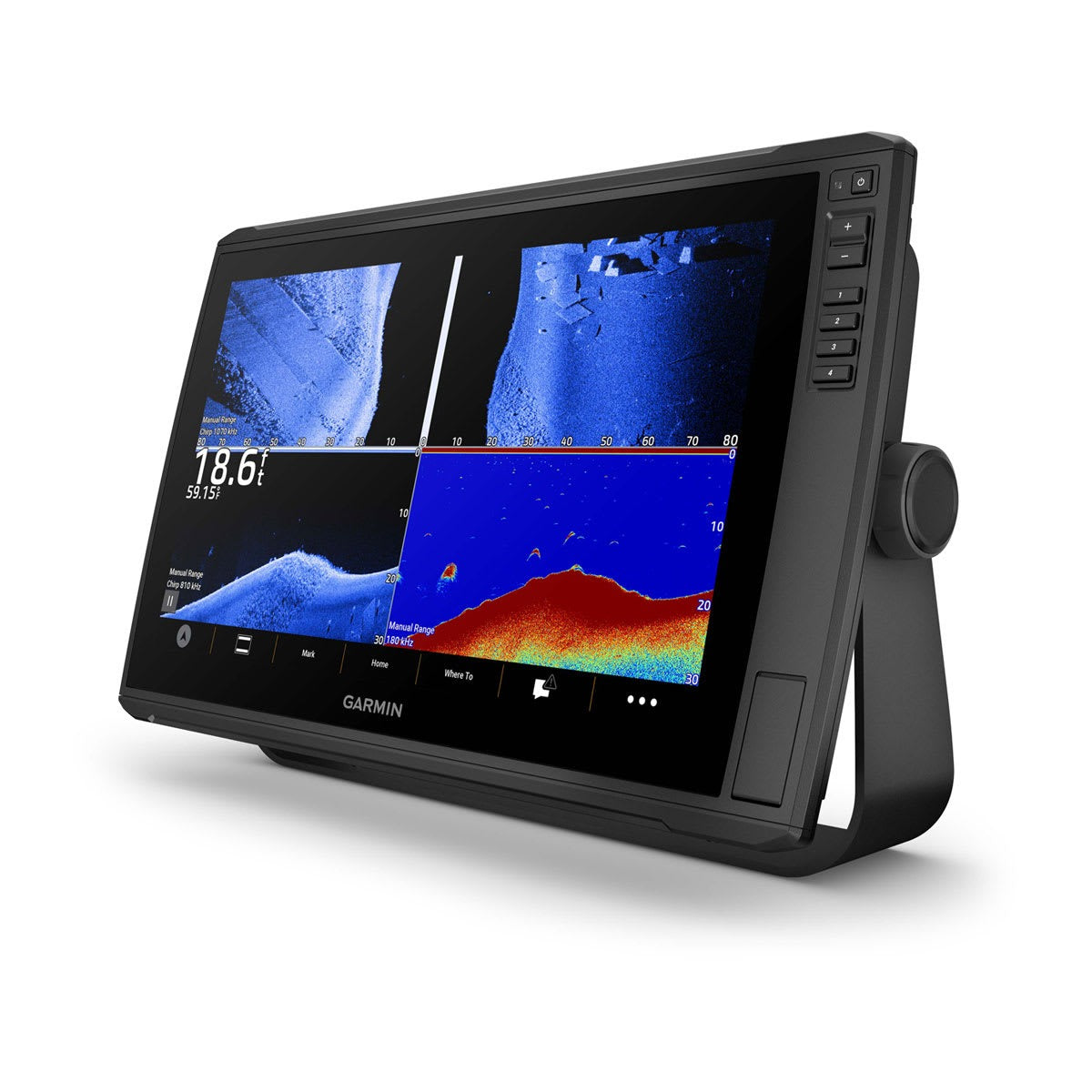

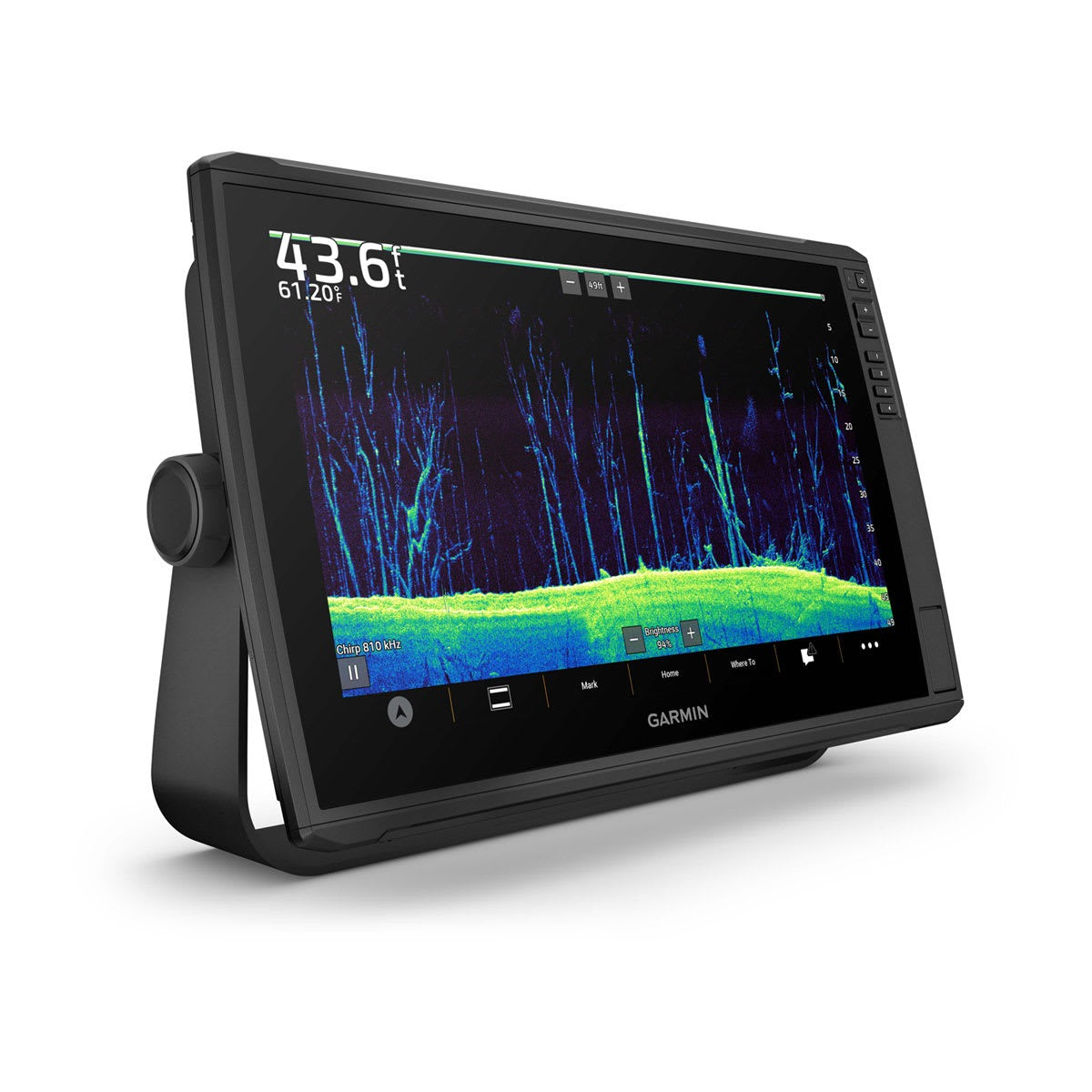

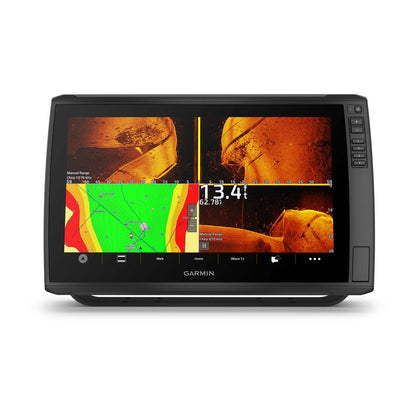

• 16-inch Full HD touchscreen display with high-contrast color palettes for superior target recognition in any lighting condition
• GT56UHD-TM transducer included, supporting Garmin CHIRP traditional sonar with 40-degree beam coverage

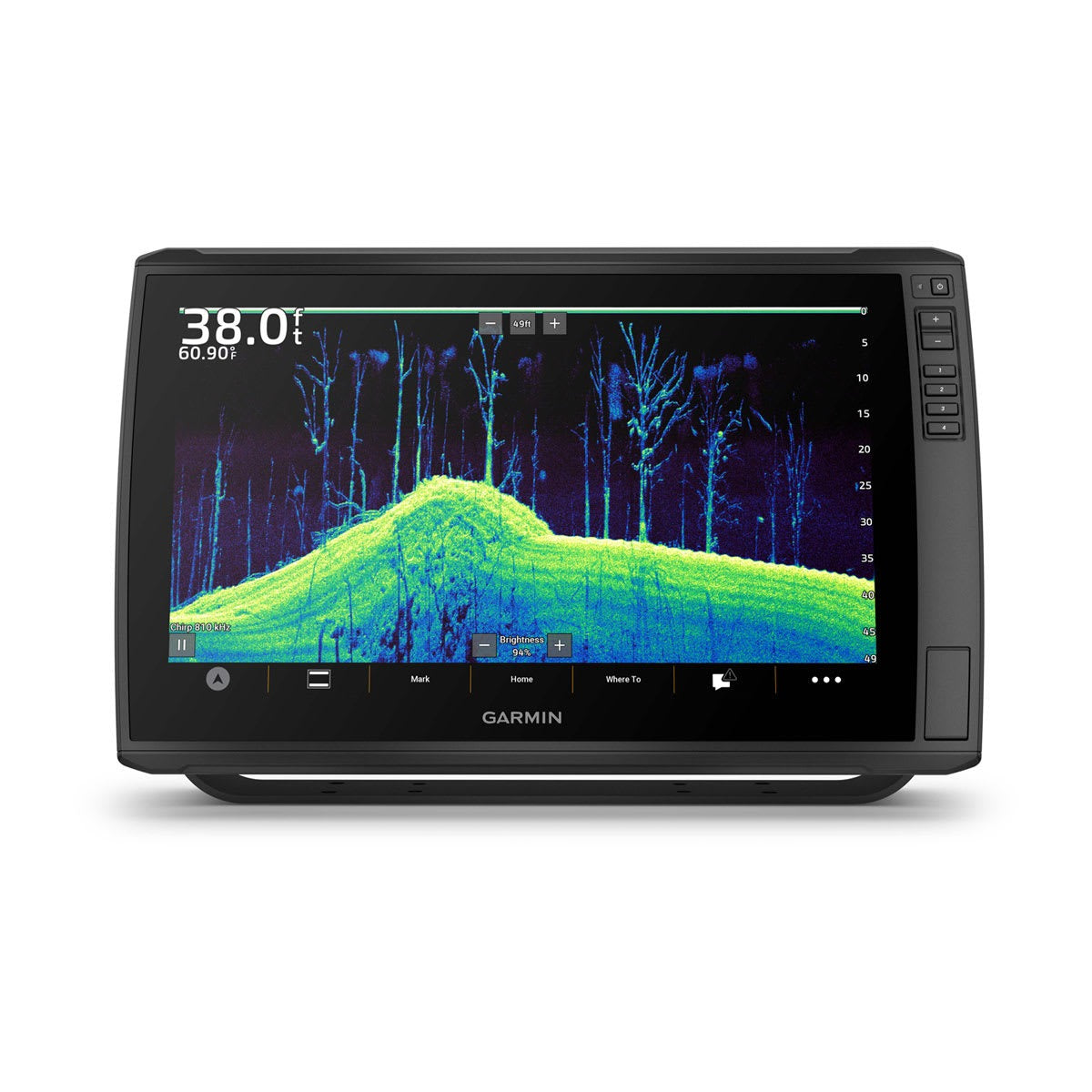

• Ultra High-Definition ClearVü™ scanning sonar beneath the boat for detailed bottom structure and fish identification

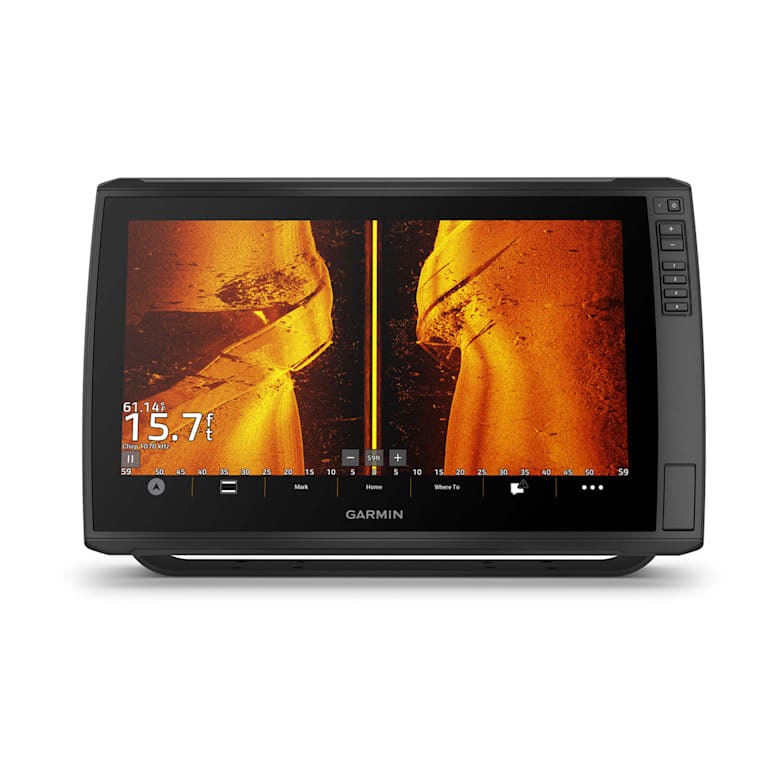

• Ultra High-Definition SideVü™ scanning sonar delivering 270-degree coverage to search for productive fishing zones beyond the direct boat path
• Full LiveScope™ sonar system compatibility for real-time underwater video when paired with compatible LiveScope transducers
• Multi-band GPS positioning technology providing enhanced accuracy for waypoint marking, route creation, and confidence navigation
• HDMI output enabling screen sharing to external televisions or displays for crew visibility on larger vessels
• Integrated Bluetooth® voice control supporting hands-free operation of Force® trolling motors and key sonar functions
• Garmin Navionics+™ chart compatibility with optional Navionics Vision+ premium upgrade for enhanced depth contours and navigational detail
• NMEA 2000® network compatibility for expanded sensor and system integration

Data Insights

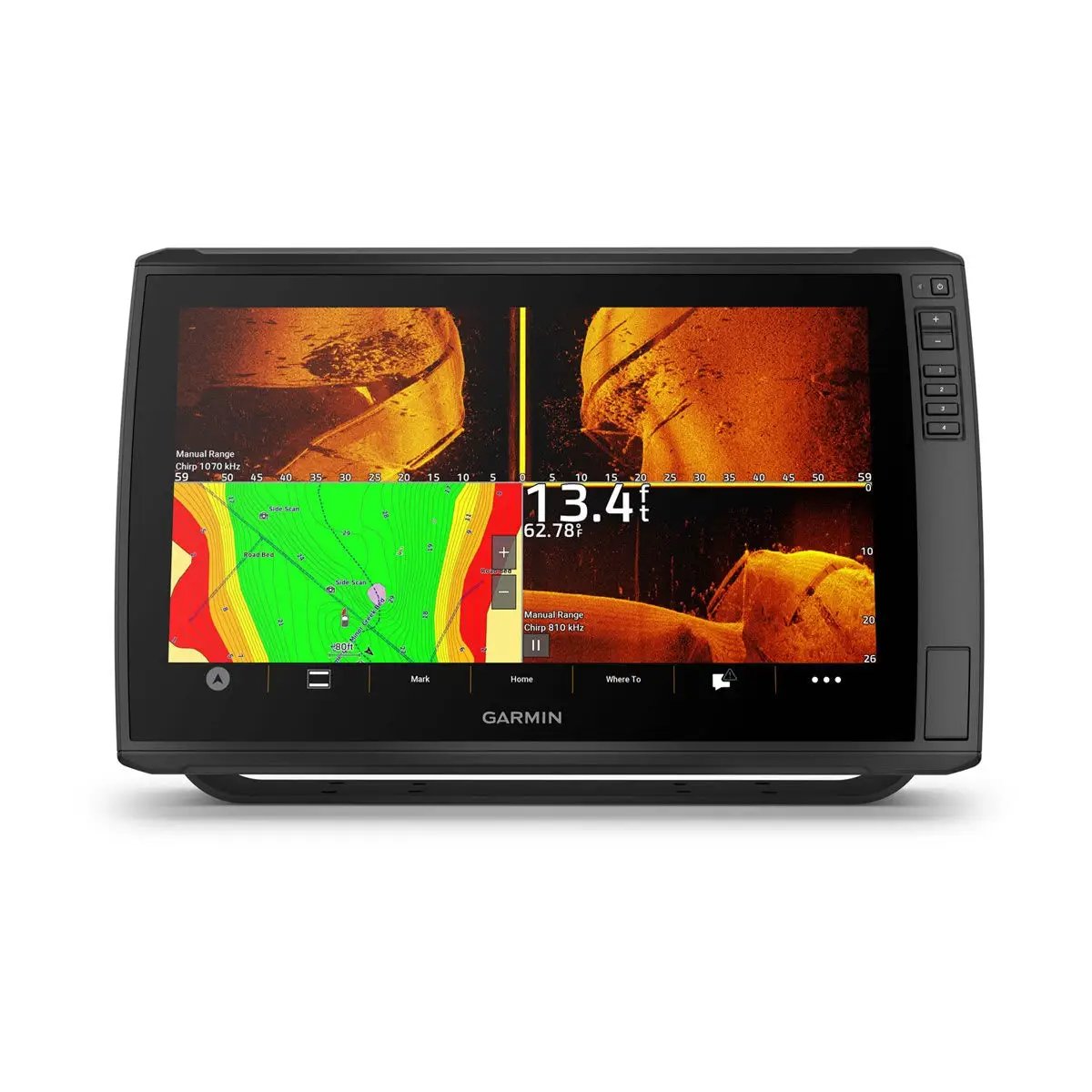

The 16-inch Full HD display provides significantly more screen real estate than mid-size 12-inch or 10-inch chartplotters, enabling simultaneous split-screen viewing of sonar, charts, and navigation data without reducing legibility. The GT56UHD-TM transducer's dual-frequency CHIRP sonar and Ultra High-Definition imaging technologies work together to distinguish fish targets from structures, vegetation, and bottom composition with clarity that supports faster decision-making and more accurate fishing spot identification. Multi-band GPS positioning increases geometric accuracy compared to single-frequency systems, reducing positioning error during mark creation and waypoint navigation in challenging conditions.

Usage Instructions

Mount the ECHOMAP Ultra 2 166sv using the adjustable bail mount, positioning it for optimal viewing angle from your helm. Connect the GT56UHD-TM transducer to the system following Garmin's wiring guidelines and configure sonar, chart, and GPS settings based on your target fishery and waters. Pair the chartplotter with the ActiveCaptain® mobile app to access over-the-air updates, Quickdraw™ Community mapping features, and screen recording capabilities. For hands-free trolling motor control, wirelessly connect a compatible Force® motor and use voice commands to adjust thrust, direction, and anchor mode while maintaining focus on the sonar display.

Design & Material

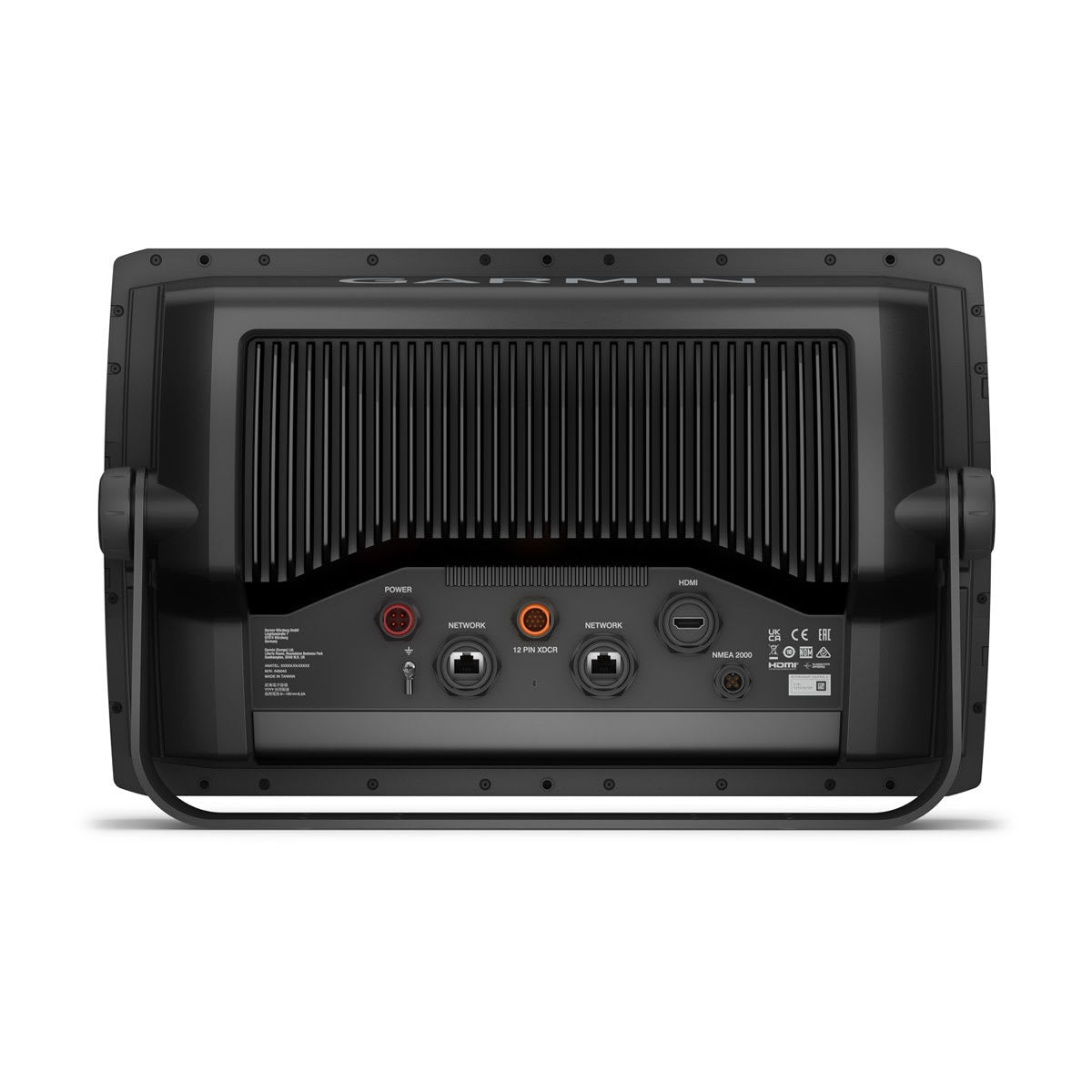

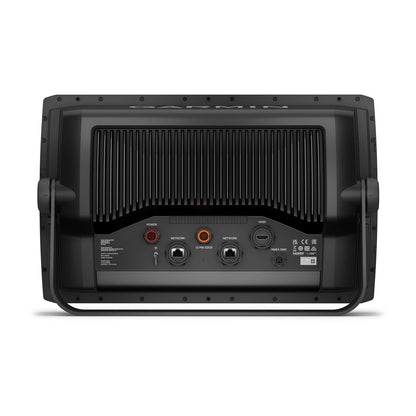

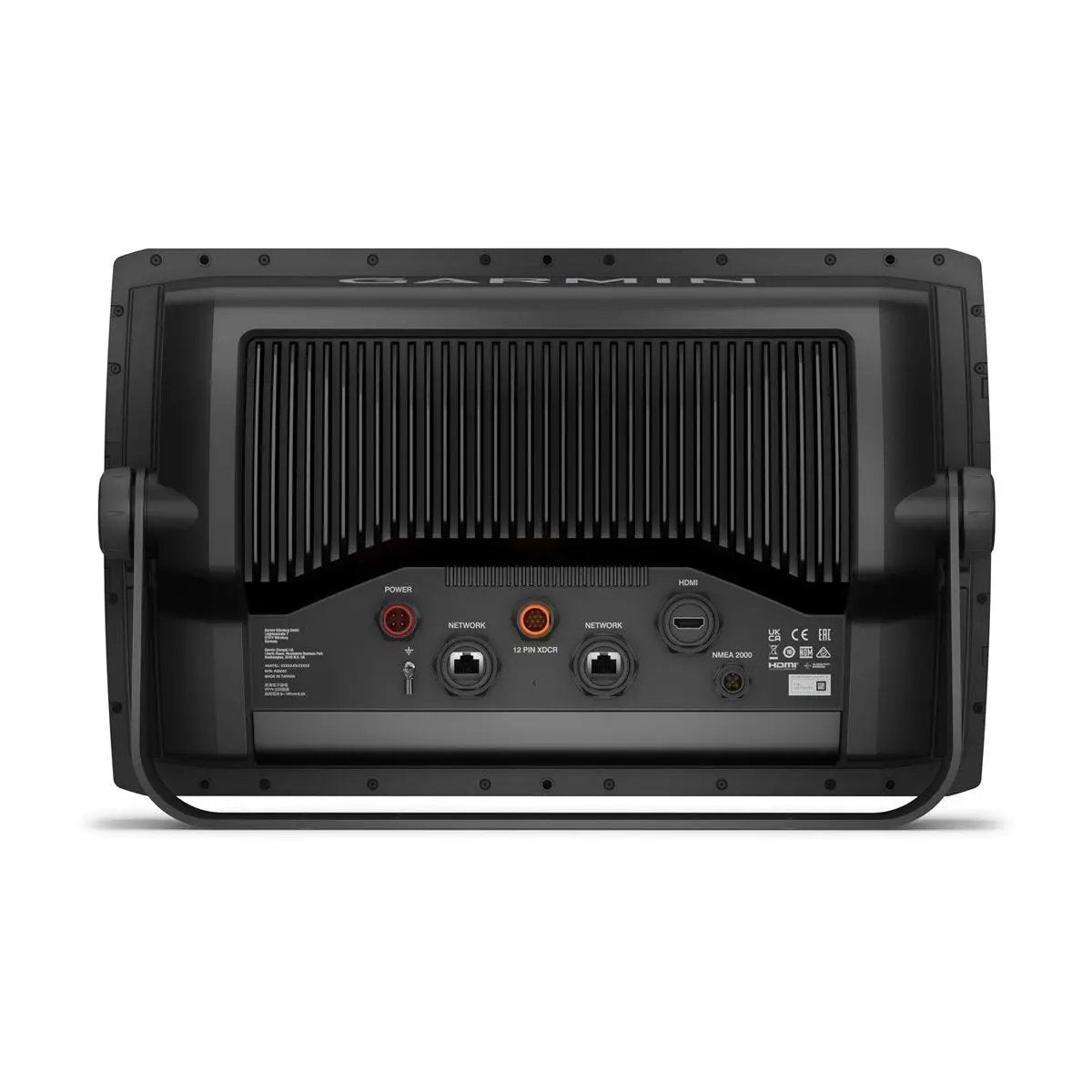

The ECHOMAP Ultra 2 166sv is engineered for marine environments with a robust construction balancing a large, responsive Full HD touchscreen against tactile keyed assist buttons for reliable operation in rough water and changing weather. The adjustable bail mount accommodates various helm configurations and allows tilt adjustments for sun glare reduction. Connectivity options include HDMI output for display expansion, NMEA 2000 networking, Bluetooth wireless links, and dedicated transducer ports supporting multiple sonar technologies.

• 16-inch Full HD touchscreen with high-brightness output for readability in direct sunlight
• Dedicated keyed assist controls enable sonar zoom, gain adjustment, and menu navigation without relying solely on touchscreen input

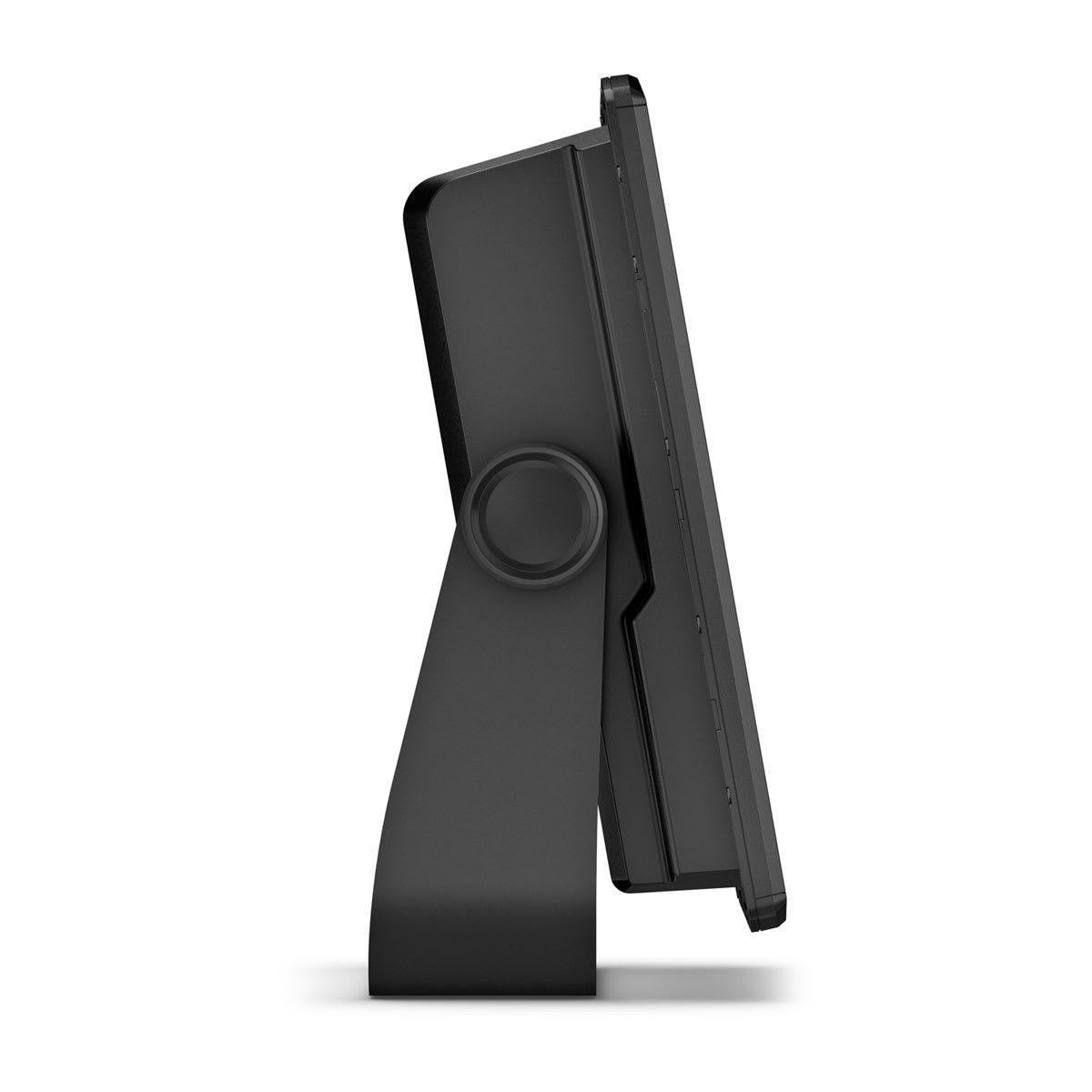

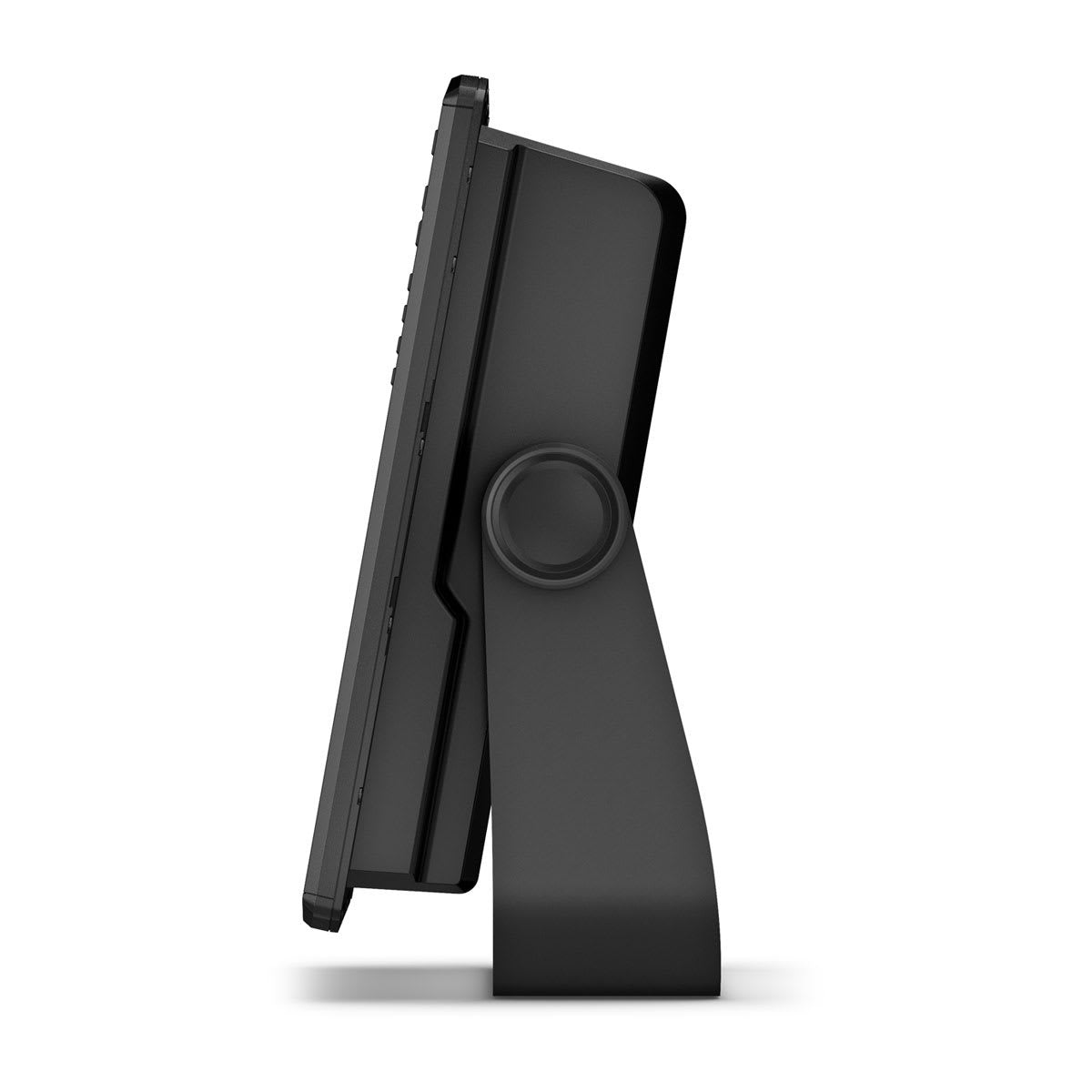

• Adjustable bail mount with tilt capability for customized viewing angles and glare management
• GT56UHD-TM transducer with stainless-steel mounting hardware rated for saltwater and freshwater deployment
• HDMI port for external display connection and crew-accessible sonar screen sharing
• Integrated Bluetooth and wireless networking architecture for Force motor pairing and ActiveCaptain app connectivity
• NMEA 2000 compatibility for sensor integration with compatible autopilot, radar, and environmental monitoring systems
• Model number 010-03386-01 for accurate parts and accessory sourcing

Final Verdict

The Garmin ECHOMAP Ultra 2 166sv with GT56UHD-TM transducer is the choice for anglers and boat operators who refuse to compromise on sonar detail, screen size, or navigation accuracy. Its 16-inch Full HD display, tournament-grade sonar imaging, full LiveScope compatibility, and hands-free voice control create a complete fishing electronics platform that scales from small fishing boats to larger coastal and offshore vessels. Whether marking structure in shallow reservoirs, tracking baitfish in open water, or navigating unfamiliar coastlines, the ECHOMAP Ultra 2 delivers the visibility and precision needed to fish confidently and navigate with certainty. Upgrade to the system that prioritizes both performance and usability for serious fishing applications.
