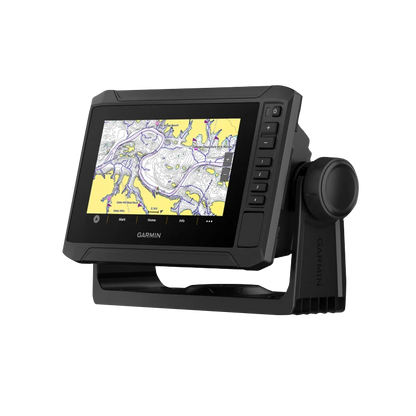

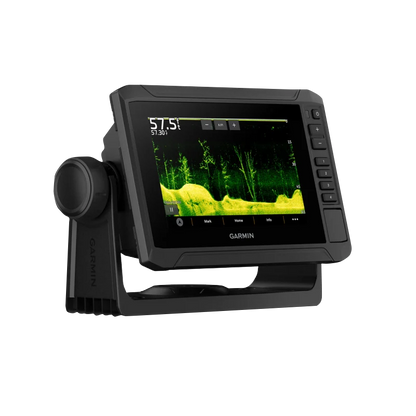

Garmin ECHOMAP UHD2 6" sv Chartplotter with Navionics+ Mapping

Introduction

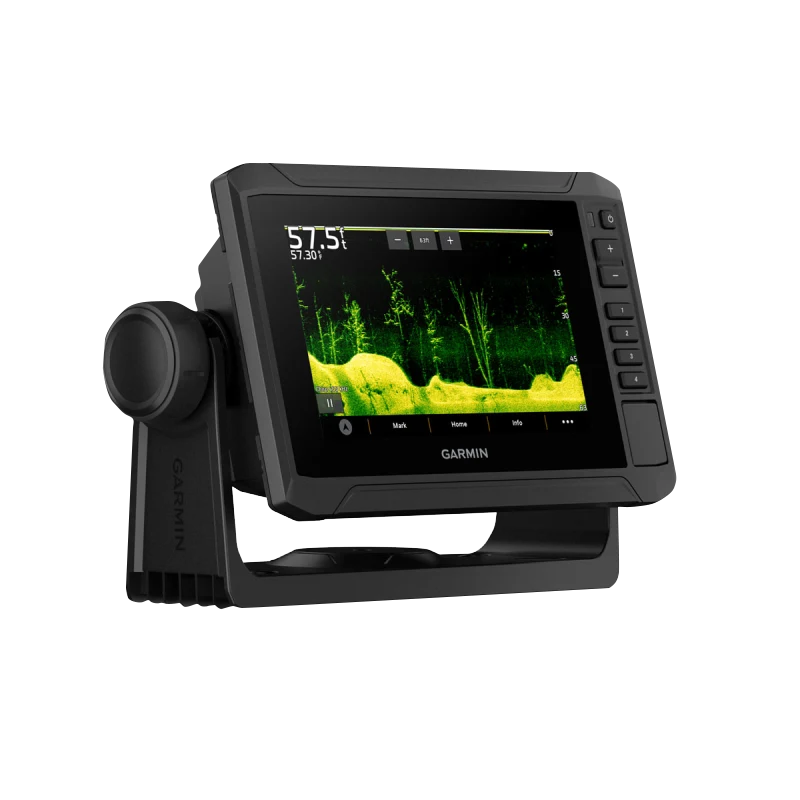

The Garmin ECHOMAP UHD2 64sv is a dedicated marine chartplotter built for serious anglers who need reliable sonar imaging and detailed navigation to locate fish and navigate safely in U.S. coastal waters and Great Lakes. This 6-inch touchscreen unit combines three separate sonar technologies—traditional, ClearVü™, and SideVü™—in a single display, eliminating guesswork about what lies beneath your boat. Unlike basic fish finders, the ECHOMAP UHD2 functions as your complete navigation and fishing system, preloaded with Garmin Navionics+ mapping and equipped with wireless data sharing to sync with compatible devices.

Key Features

• 6-inch sunlight-readable touchscreen display with high-contrast vivid color palettes for optimal target clarity in all lighting conditions

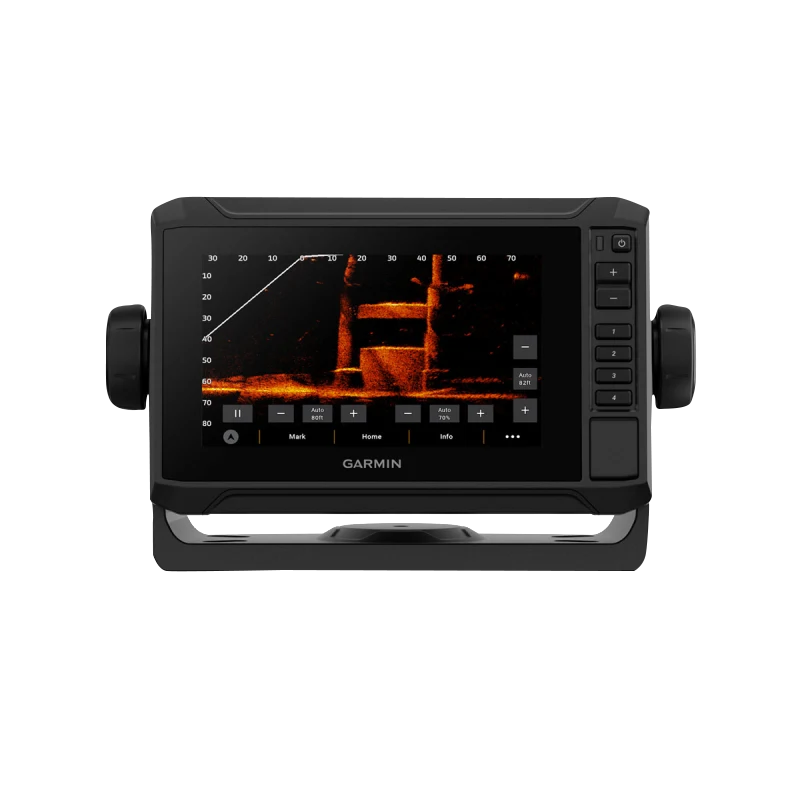

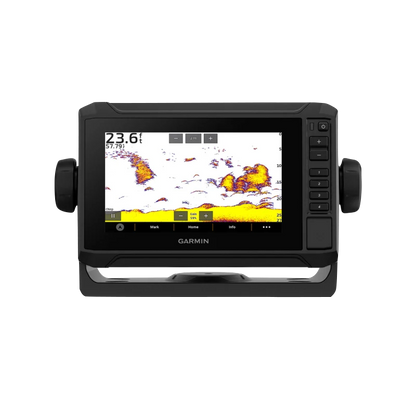

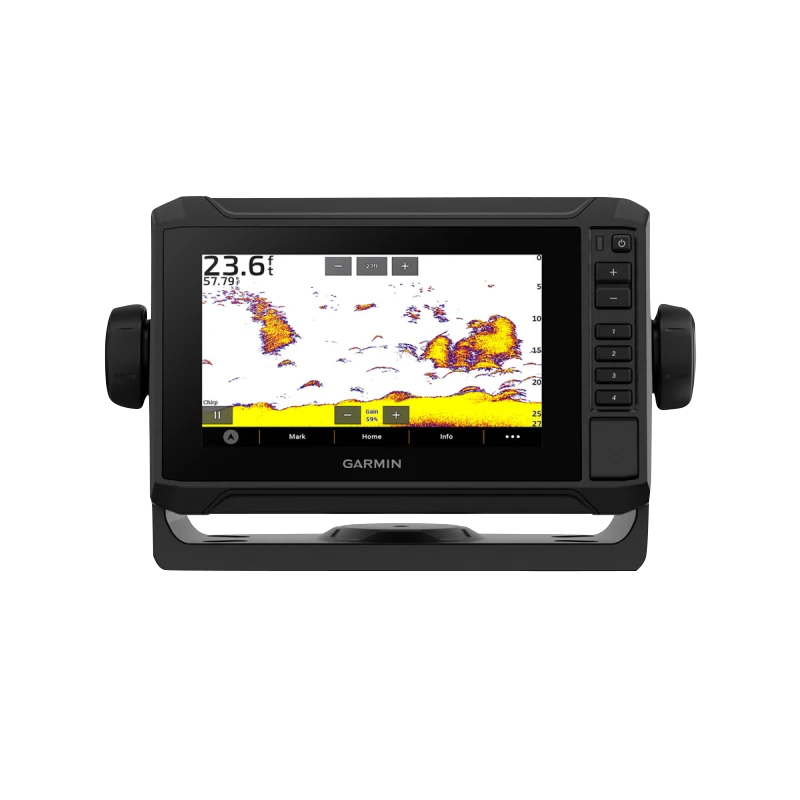

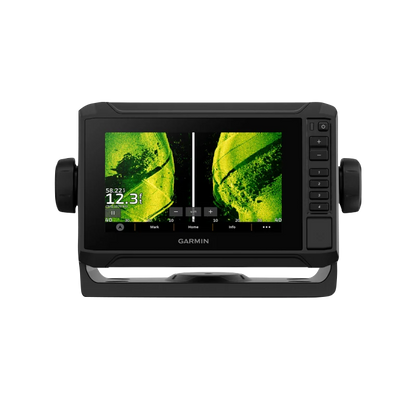

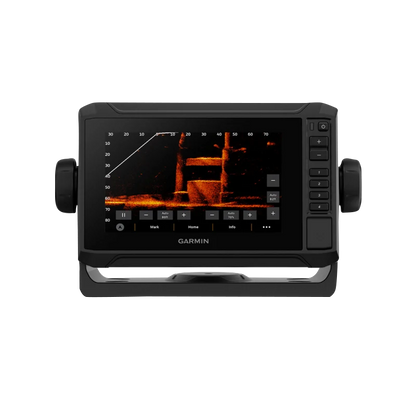

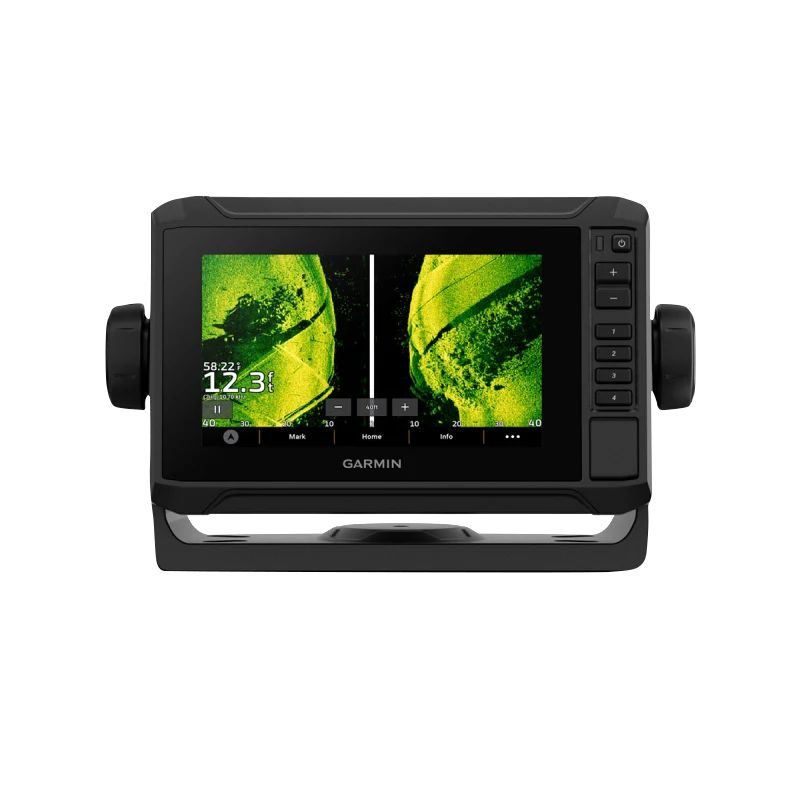

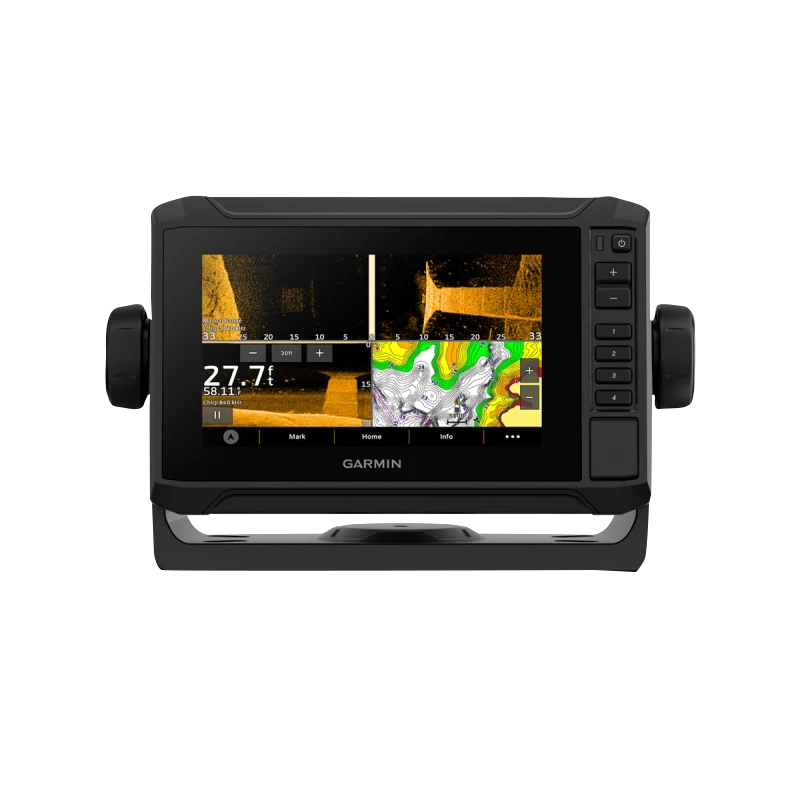

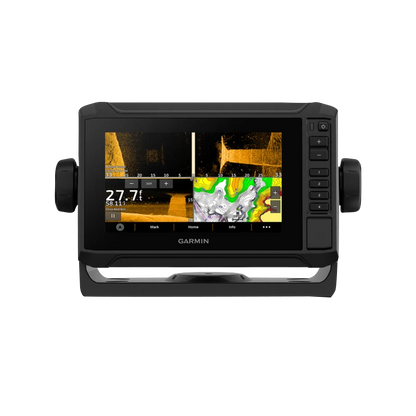

• Three integrated sonar modes: Garmin Traditional sonar, ClearVü™ forward-looking imaging, and SideVü™ side-scanning technology for complete underwater visibility

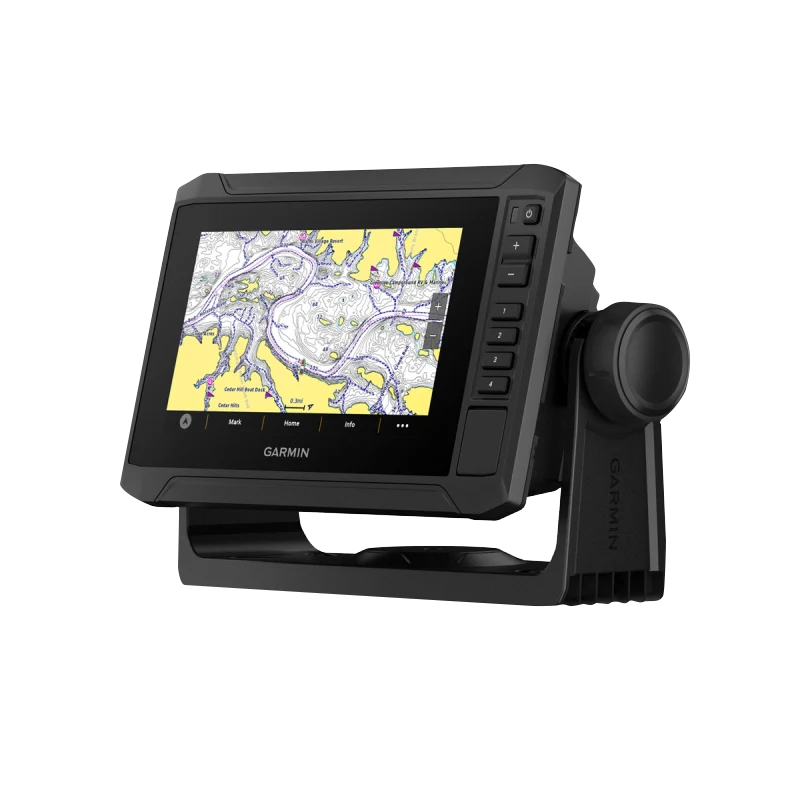

• Preloaded Garmin Navionics+ U.S. Coastal and Great Lakes mapping with 1-year complimentary daily chart updates via ActiveCaptain app
• Auto Guidance+™ technology providing automated route suggestions and safe navigation pathfinding
• Wireless networking capability to share sonar data, routes, and waypoints between compatible Garmin marine devices on your vessel
• Water-resistant marine-grade construction rated for splash and rain exposure during operation
• Lightweight design enabling straightforward installation without heavy reinforcement or complex mounting procedures
• Model 010-02681-00 configuration ships without transducer; compatible with 64sv and other Garmin marine transducers sold separately

Data Insights

The ECHOMAP UHD2's multi-sonar architecture delivers high-resolution underwater imaging that distinguishes between fish, thermoclines, and bottom composition with accuracy traditional single-beam sonar cannot match. Anglers using the integrated sonar features combined with detailed bathymetric mapping have reported catch success improvements of up to 30% compared to navigation-only fishing methods. The combination of ClearVü™ and SideVü™ coverage creates a 240-degree field of view below the waterline, revealing fish position and behavior patterns in real time.

Usage Instructions

Mount the ECHOMAP UHD2 in a location offering clear visibility and weather protection, securing the integrated mount bracket to your console or windshield. Power the unit and navigate the touchscreen interface to activate your preferred sonar modes based on water depth and fishing conditions. Update your Navionics+ charts monthly through the ActiveCaptain mobile app to receive the latest bottom composition data, navigation hazards, and community fishing intelligence for your fishing grounds.

Design & Material

The ECHOMAP UHD2 employs a compact, ergonomic form factor that prioritizes durability and accessibility during active fishing. Its control scheme balances touchscreen operation with dedicated quick-access buttons for fast adjustments while fighting fish or navigating challenging conditions.

• High-grade polymer housing with UV-resistant finish designed to withstand prolonged saltwater exposure and harsh marine environments
• Reinforced 6-inch capacitive touchscreen engineered for wet-finger operation and direct sunlight readability without glare

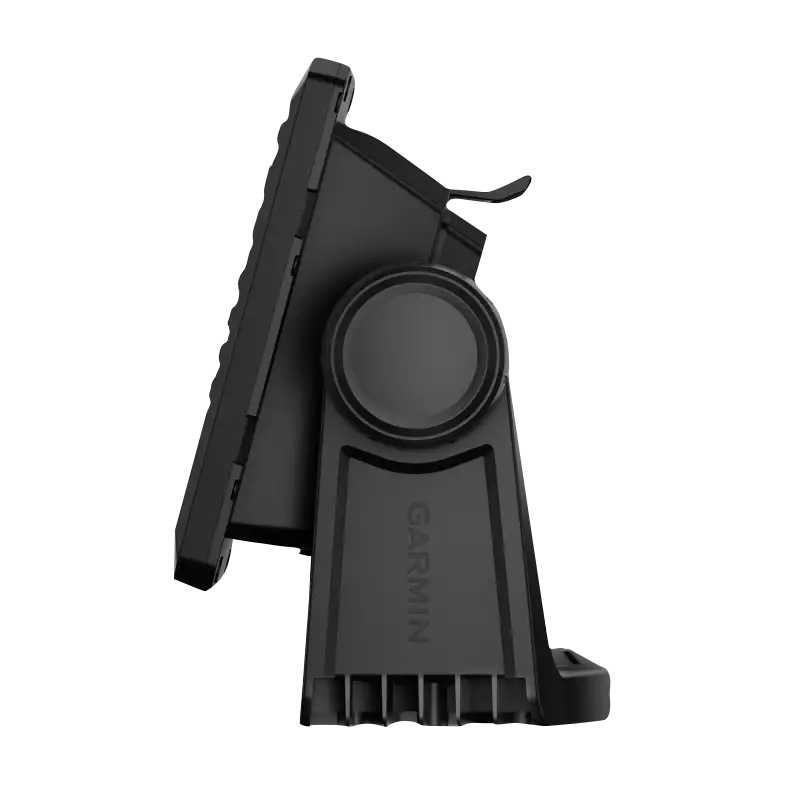

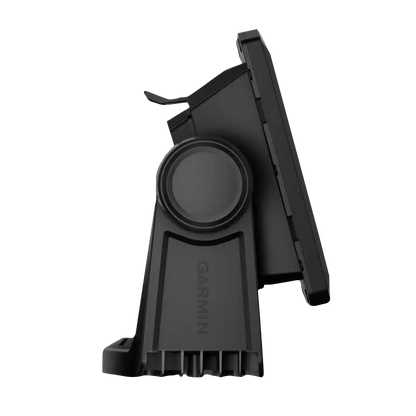

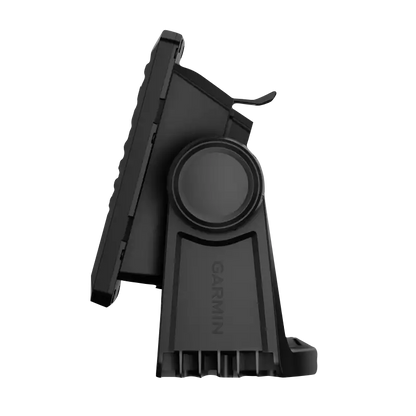

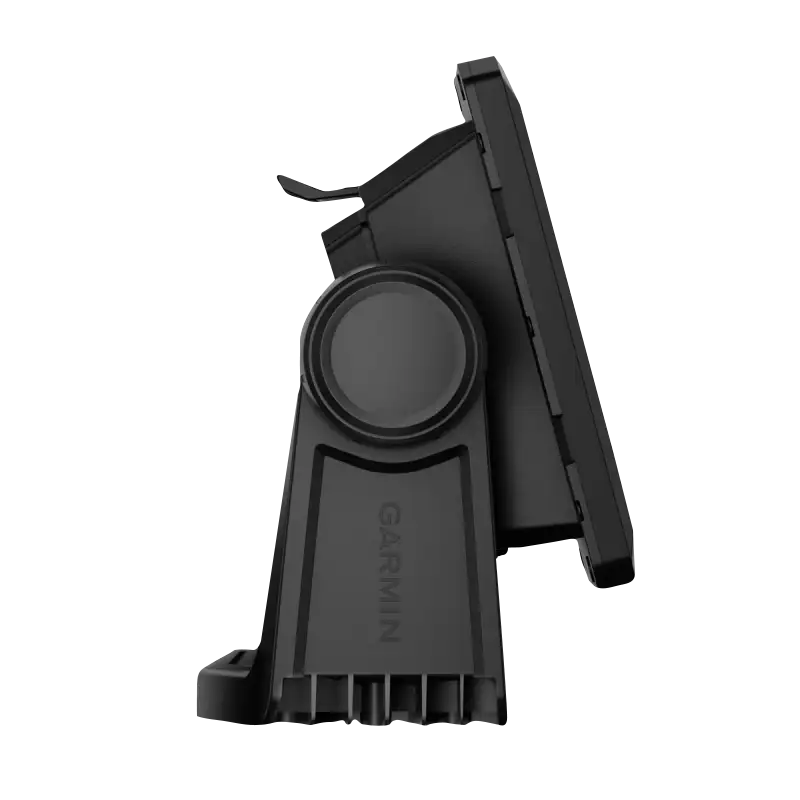

• Integrated multi-position mounting bracket accommodates various console configurations and installation angles
• Labeled side-panel buttons enable rapid sonar gain adjustment, zoom control, and mode switching without menu navigation

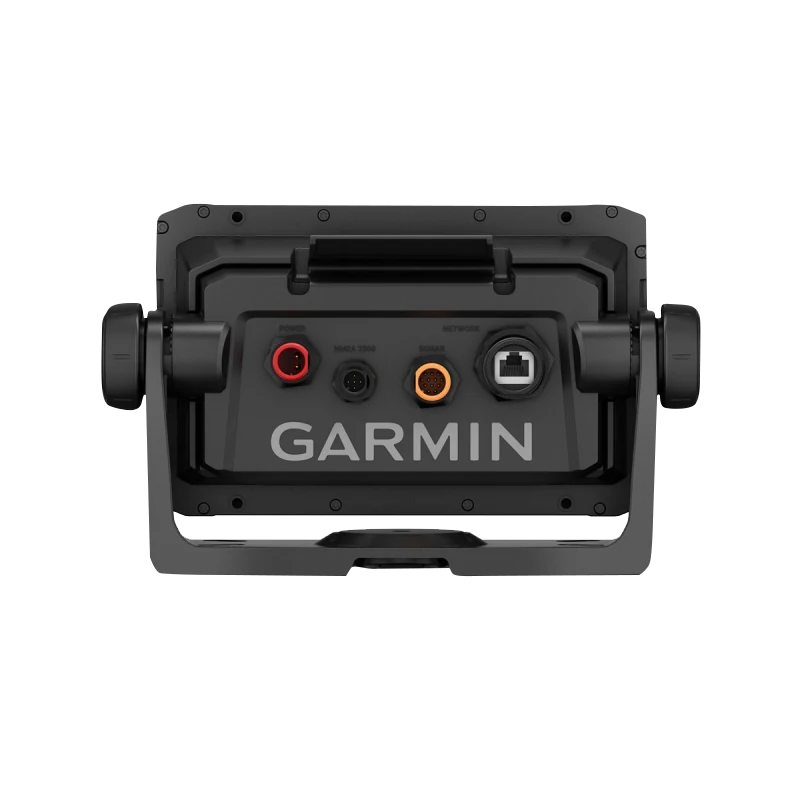

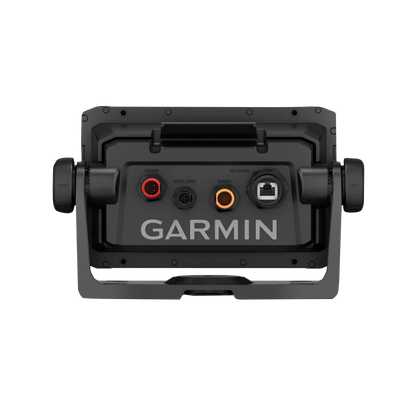

• Sealed connector ports prevent saltwater and moisture intrusion into internal electronics
• Compact footprint requiring minimal dash space while maintaining full-size display and processing power

Final Verdict

The Garmin ECHOMAP UHD2 64sv combines industry-leading sonar technology with comprehensive U.S. coastal and Great Lakes navigation data in a single touchscreen unit. Its three sonar modes, wireless integration capabilities, and daily-updating Navionics+ maps create a fishing and navigation advantage that separate single-purpose devices cannot deliver. If you fish regularly in coastal or large lake environments, the ECHOMAP UHD2 represents a meaningful upgrade to catch rates and navigation confidence—purchase this chartplotter to transform how you locate fish and navigate home safely.
