Garmin ECHOMAP UHD2 7" sv Chartplotter with GT54UHD-TM Transducer and Navionics+ Mapping

Introduction

The Garmin ECHOMAP UHD2 7" sv (model 010-02684-01) combines a multi-function chartplotter with integrated sonar imaging to give anglers and boaters real-time underwater visibility paired with precise GPS navigation. This dual-display unit merges traditional sonar data with advanced scanning capabilities, delivering the situational awareness needed to locate structure, identify fish, and navigate confidently in inland waters.

Key Features

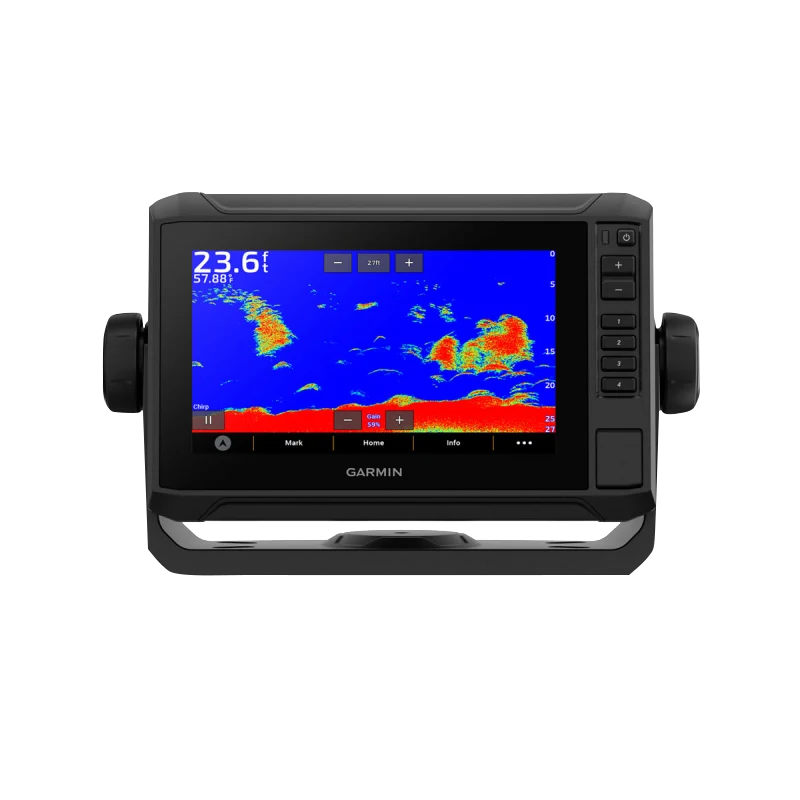

• 7-inch color touchscreen display with keyed assist controls and water-resistant housing

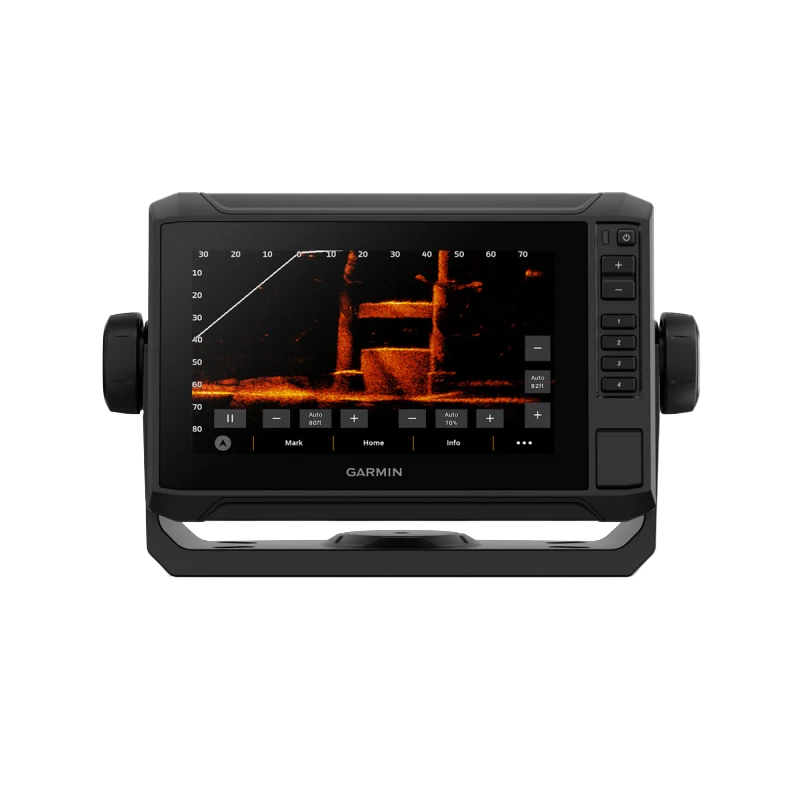

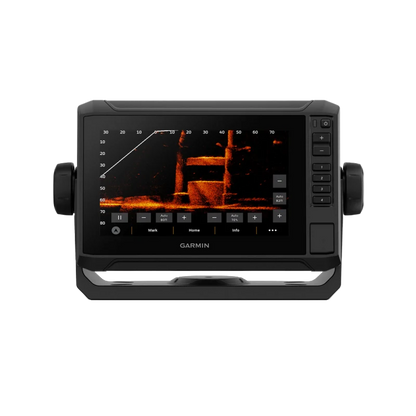

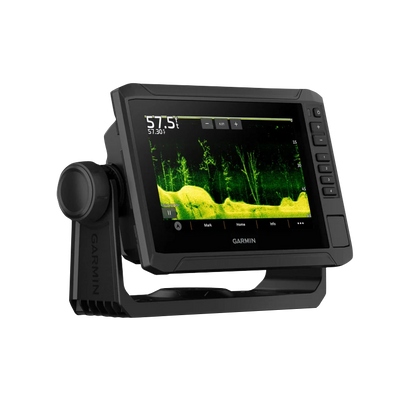

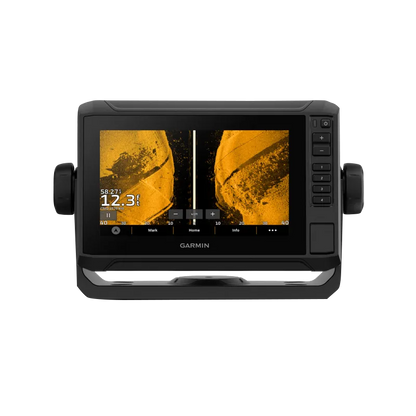

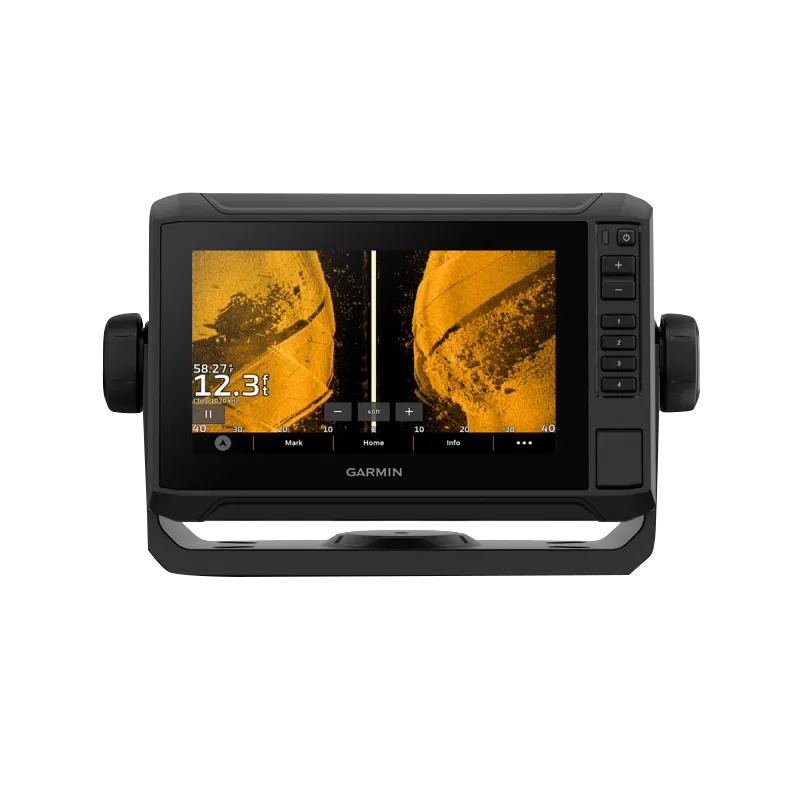

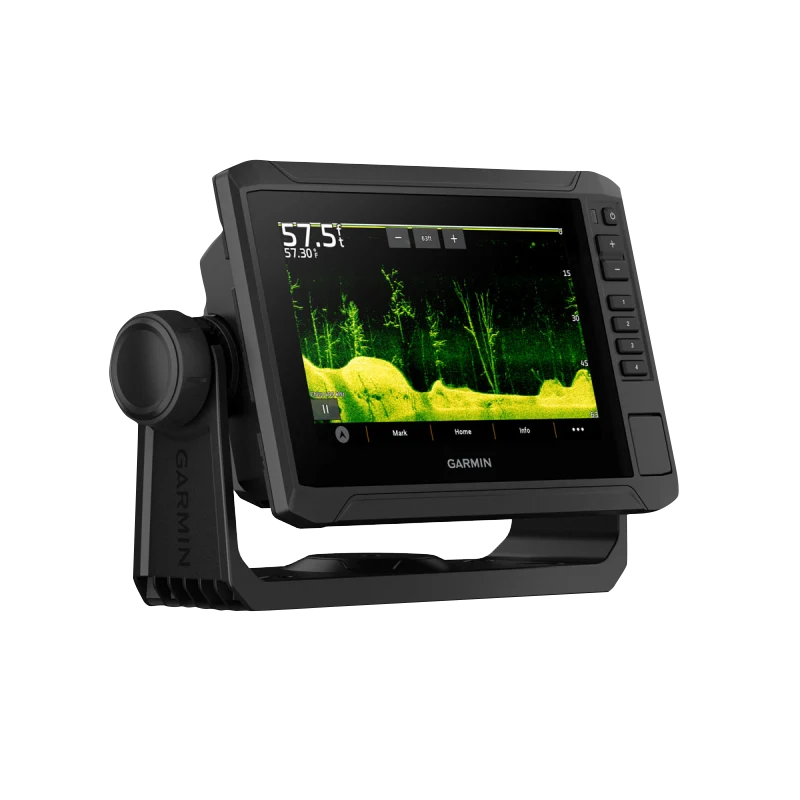

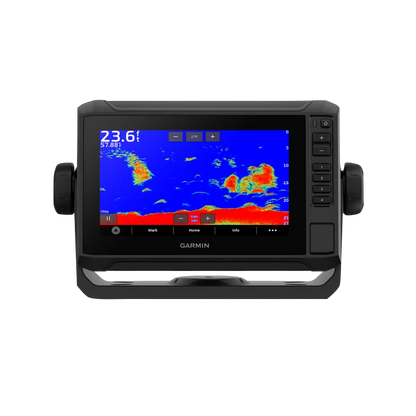

• GT54UHD-TM transducer with CHIRP traditional sonar, ClearVü, and SideVü dual-frequency scanning modes
• Up to 30% increased clarity compared to previous ECHOMAP models for enhanced target definition

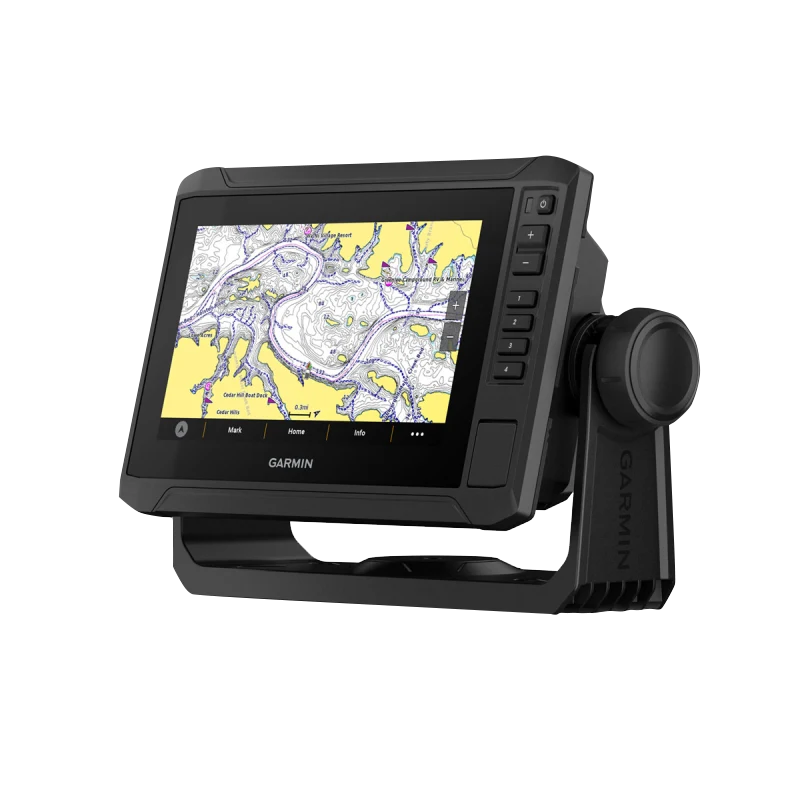

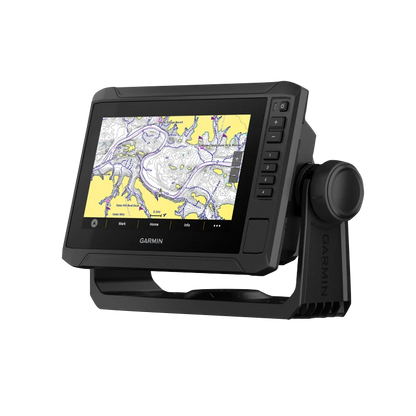

• Preloaded Garmin Navionics+ U.S. Inland Mapping with 1-year daily chart update subscription included
• LiveScope™ real-time sonar compatible for live imaging of fish and underwater structure
• Wireless networking to connect with other ECHOMAP UHD2 units for sonar, waypoint, and route sharing

Data Insights

The ECHOMAP UHD2's multi-frequency sonar system operates with Garmin's CHIRP technology across dual frequencies, enabling detailed bottom structure mapping and fish detection with measurably improved contrast over prior-generation units. The integrated ClearVü and SideVü capabilities provide a 30% visual clarity advantage, which translates to faster identification of drop-offs, thermoclines, and fish-holding cover when compared to single-frequency alternatives.

Usage Instructions

Mount the ECHOMAP UHD2 securely to your vessel and position the GT54UHD-TM transducer below the waterline at a stable depth. Power on the unit and select your preferred sonar mode—CHIRP for traditional bottom imaging, ClearVü for forward/downward structure, or SideVü for lateral scanning. Use the preloaded Navionics+ maps to plot routes and mark waypoints. Regularly sync software updates through the ActiveCaptain mobile app to maintain optimal performance and access the latest map corrections.

Design & Material

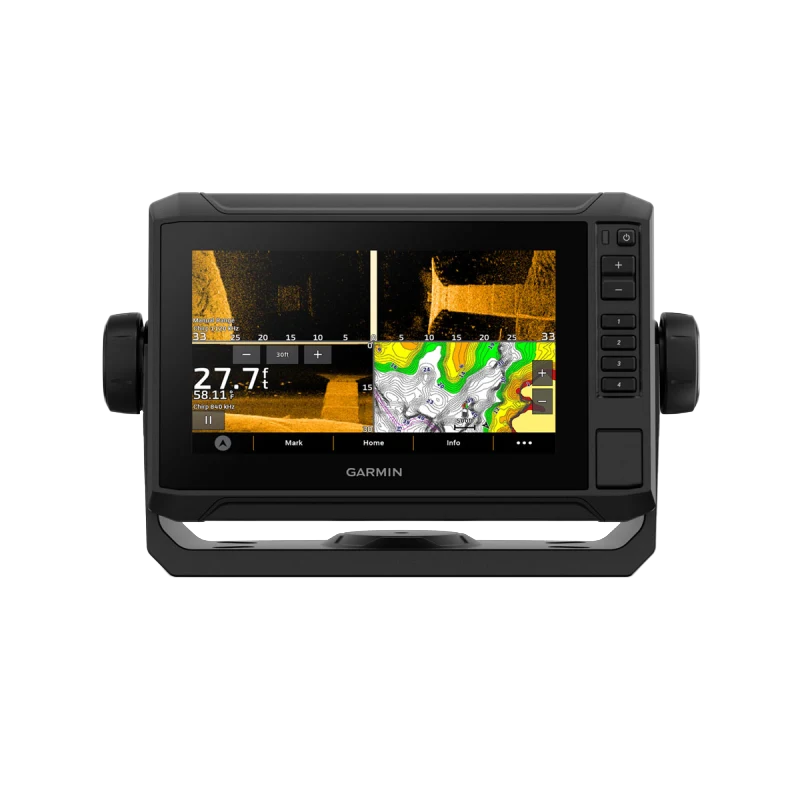

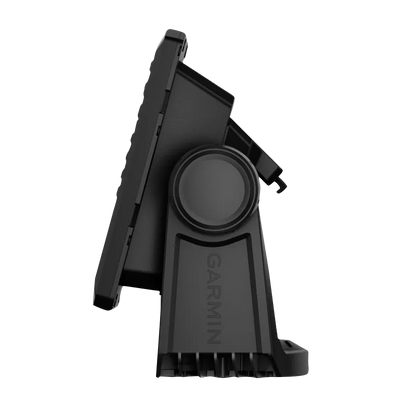

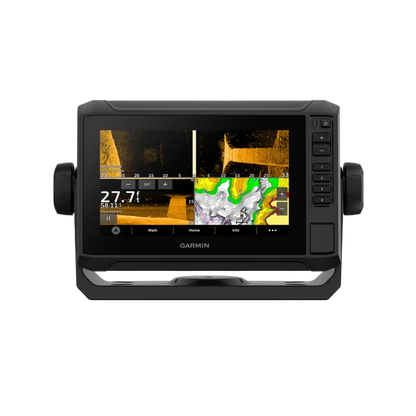

Built to withstand prolonged marine exposure, the ECHOMAP UHD2 features marine-grade construction with a sunlight-readable display that maintains legibility in high glare conditions. The compact 7-inch form factor integrates into tight helm spaces while delivering dual sonar views simultaneously, and the supplied mounting bracket provides flexible installation options across various vessel types.

• Water-resistant housing rated for salt and freshwater spray exposure
• Sunlight-readable IPS display with high-contrast sonar color palettes
• Ergonomic touchscreen interface with tactile side-button controls for gloved operation
• Compact mounting footprint designed for console, dash, or t-top installation
• Lightweight construction with corrosion-resistant aluminum frame

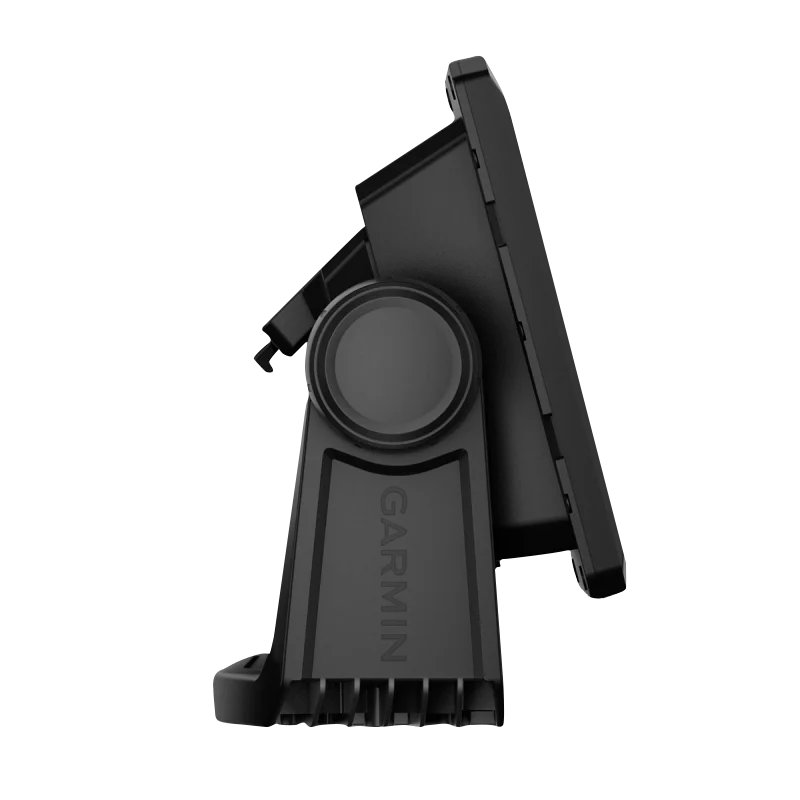

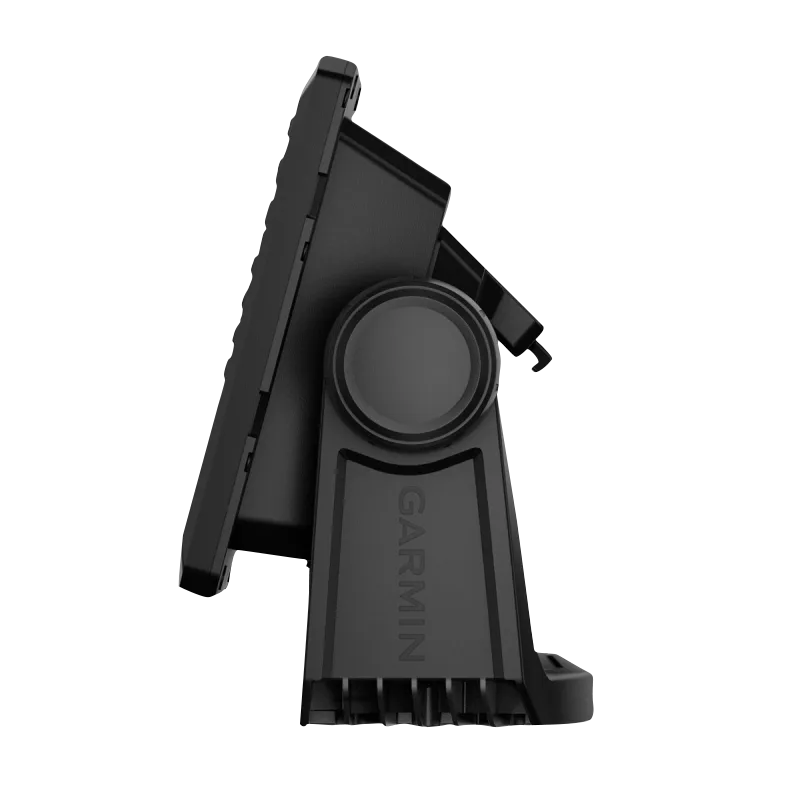

• Dual-axis adjustment capability for optimal screen viewing angles

Final Verdict

The Garmin ECHOMAP UHD2 7" sv represents the integration of proven sonar technology and coastal-grade mapping reliability into a single display that eliminates guesswork from fishing and navigation. With 30% improved imaging clarity, real-time structure detection, and wireless connectivity to share findings across a fleet, this chartplotter provides measurable performance advantages for serious anglers and professional captains. Invest in the ECHOMAP UHD2 to gain the underwater awareness and navigational precision that consistently separates successful trips from wasted fuel and time.
