Garmin Fusion Signature Series 4 Channel 1400-Watt Marine Amplifier

Introduction

The Garmin Fusion Signature Series 4 Channel 1400-Watt Marine Amplifier delivers full-spectrum audio power engineered specifically for saltwater environments. Built with Class-D technology, this amplifier produces clean, distortion-free sound while consuming significantly less power than conventional amplifiers, making it ideal for extended boating excursions where battery preservation matters. The True-Marine™ design standards mean this amplifier withstands the corrosive combination of salt spray, temperature fluctuations, UV exposure, and constant vibration that challenges standard marine electronics.

Key Features

• 1400-watt total power output across four channels for flexible speaker and subwoofer configurations
• Class-D amplifier technology achieving up to 80% efficiency, delivering 30% greater power efficiency compared to traditional Class-AB amplifiers
• Four-channel design powers up to four speaker pairs independently or combines channels for two speaker pairs plus one subwoofer
• Conformal coated PCBs provide multi-layer protection against salt fog, moisture intrusion, and UV degradation in harsh marine conditions
• Rigid die-cast aluminum alloy heat sink with single-piece chassis construction for optimal thermal management under continuous operation

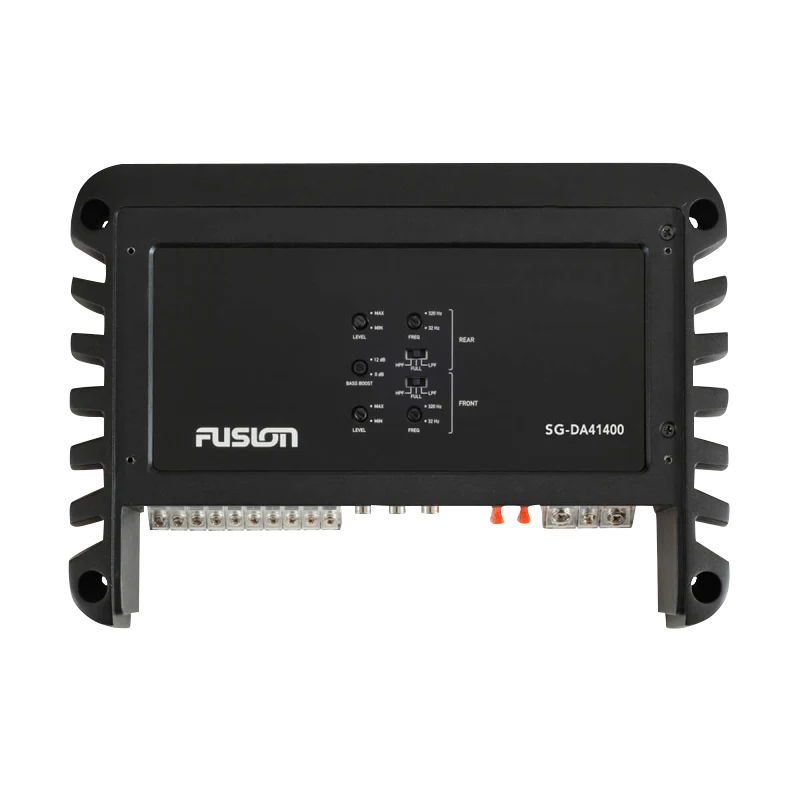

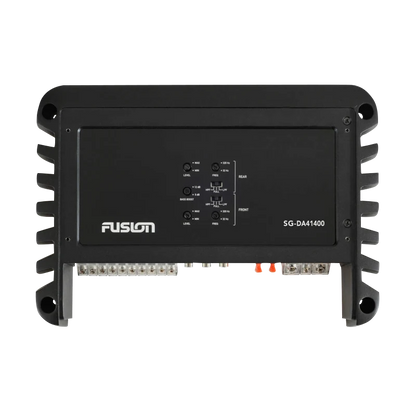

• Variable bass boost control, subsonic filter, and adjustable low/high-pass crossover filters for customized sound tuning across different marine audio setups

Data Insights

The 1400-watt power output positions this amplifier among the higher-capacity options in marine audio, while its Class-D architecture delivers measurable performance advantages. The 30% efficiency gain over Class-AB designs translates directly into reduced battery drain—critical on vessels where charging capacity is limited. Users experience longer listening sessions without compromising system voltage, and the amplifier's thermal efficiency means less cooling demand in confined boat compartments where ventilation is already restricted.

Usage Instructions

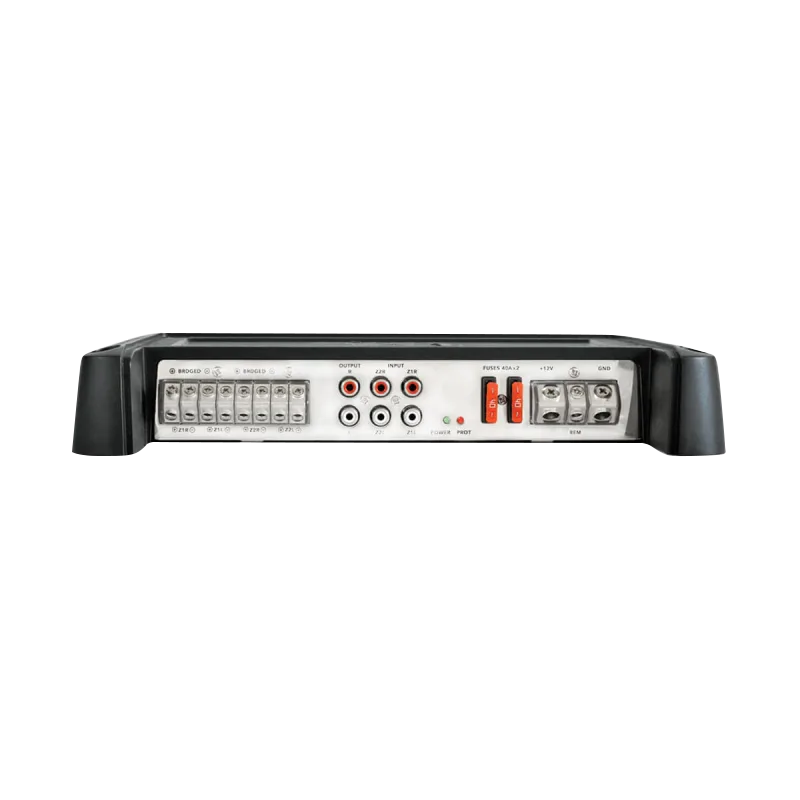

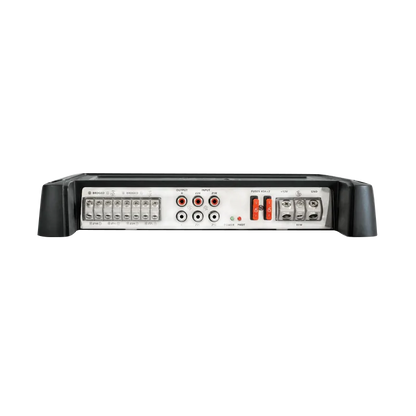

Mount the amplifier in an area with unrestricted airflow around the heat sink, as proper ventilation prevents thermal shutdown during extended use. Connect speaker leads according to your desired configuration—single subwoofer with stereo speakers, or full four-channel distribution. Use the crossover filters to separate frequencies between speakers and subwoofers, and adjust the variable bass boost for your specific acoustic environment. Periodically verify all connections remain tight, as vibration and humidity cycles can gradually loosen terminals over months of operation.

Design & Material

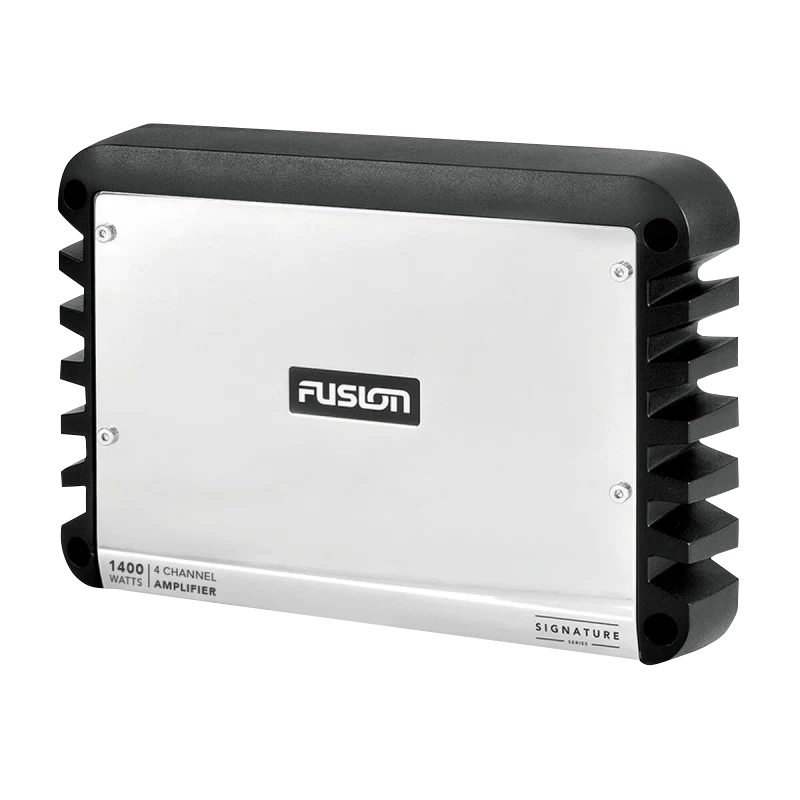

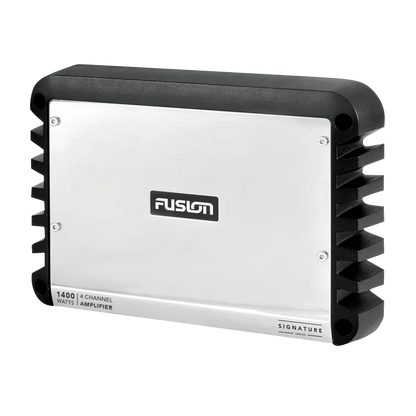

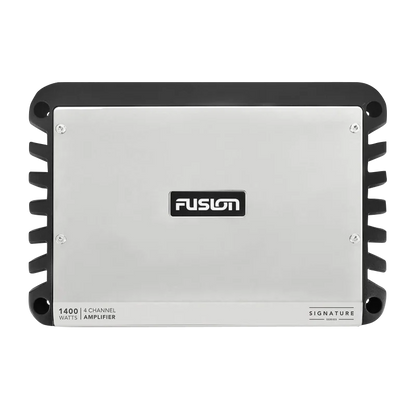

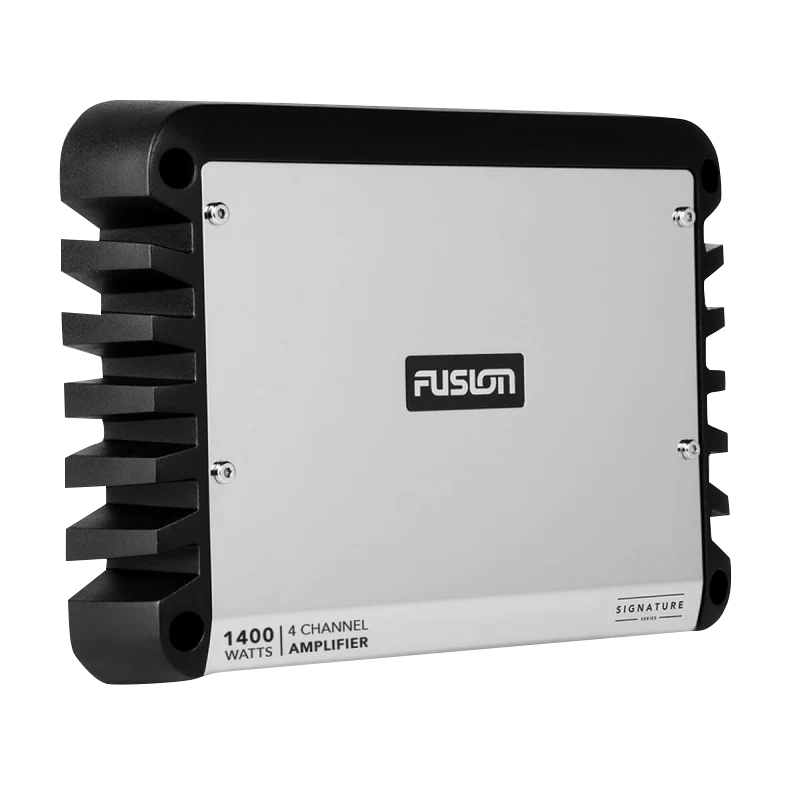

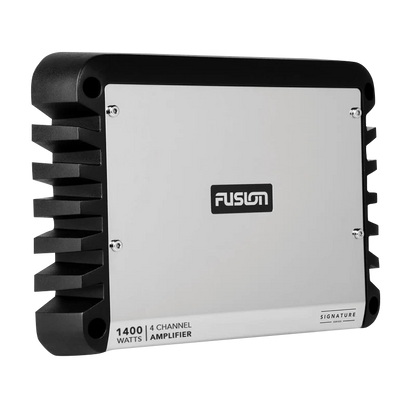

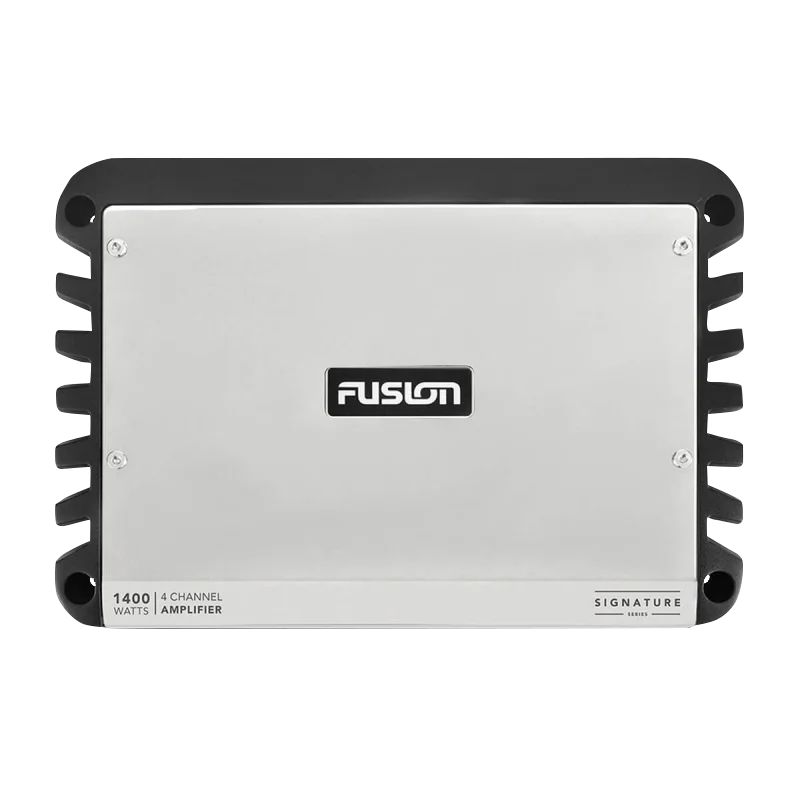

The amplifier features a compact footprint with a silver-finished control panel and molded black polymer end caps, designed to integrate cleanly into modern marine dashboard spaces without drawing attention. The entire assembly prioritizes durability through material selection and protective coatings that prevent the rapid degradation typical of electronics exposed to marine conditions.

• Precision die-cast aluminum alloy chassis provides rigid structural support and doubles as primary heat dissipation pathway
• Stainless steel mirror-finish control panel cover protects internal connections while resisting salt corrosion
• Conformal PCB coating creates microscopic barrier against salt spray, moisture, and atmospheric contaminants
• All exposed fasteners and connectors feature corrosion-resistant plating or stainless steel construction
• Compact dimensions fit standard electronics compartments without requiring custom installation modifications
• Pre-assembled mounting hardware and integrated cable management reduce installation complexity and potential for water ingress at connection points

Final Verdict

The Garmin Fusion Signature Series amplifier solves the core problem facing marine audio enthusiasts: delivering powerful sound without draining batteries or failing under saltwater exposure. Model 010-01969-00 combines engineering specifically tuned to marine conditions with the power and flexibility needed for versatile speaker configurations. Whether you're upgrading an existing system or building new audio capability, this amplifier provides the efficiency, durability, and performance required for reliable on-water entertainment. Choose this amplifier to eliminate the compromise between audio quality, power efficiency, and marine longevity.
