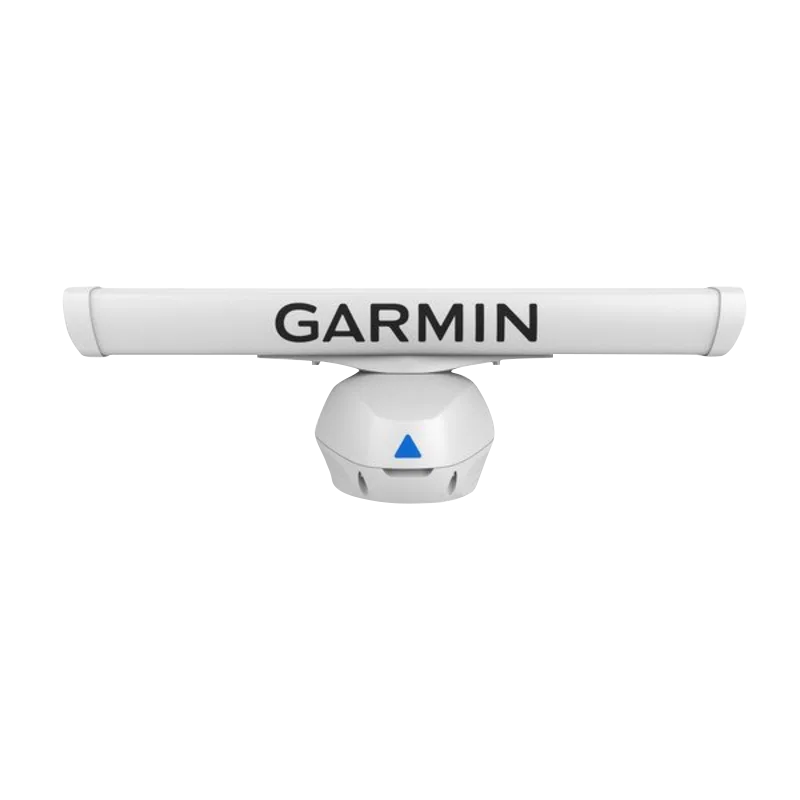

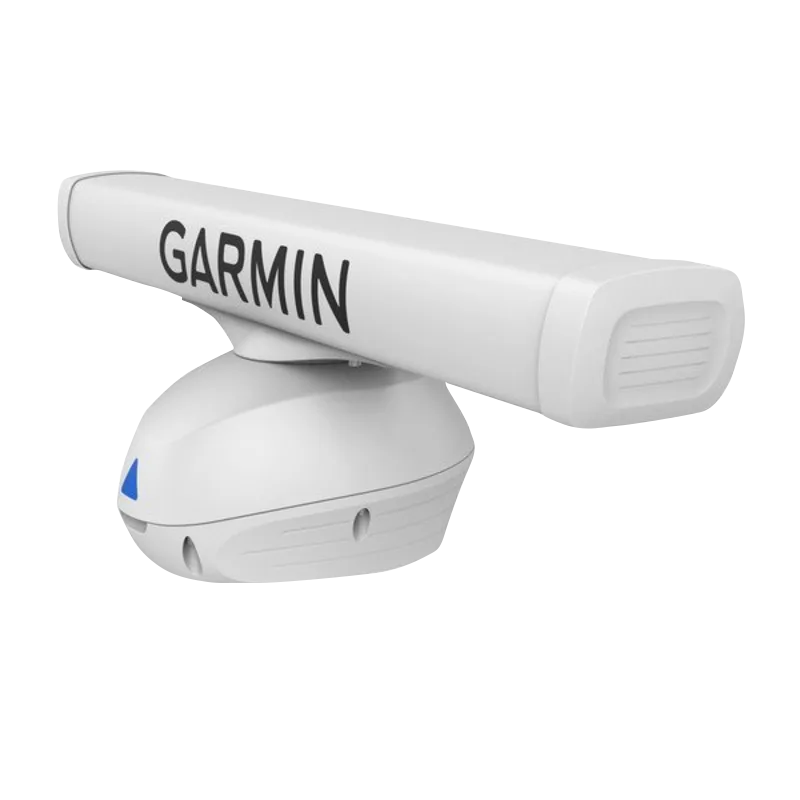

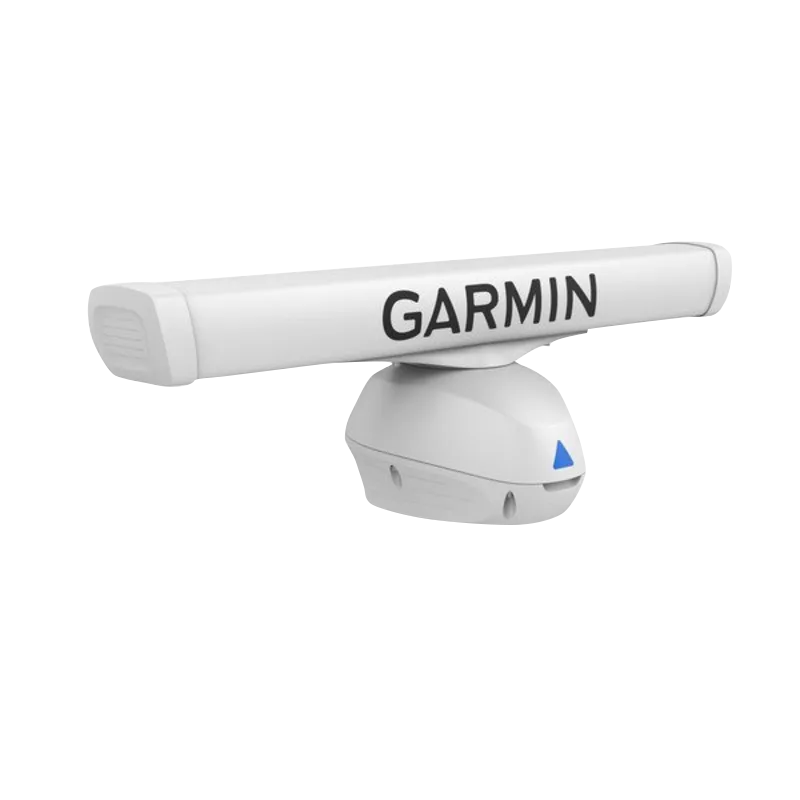

Garmin GMR Fantom 54 Open Array Radar and Pedestal White (K10-00012-17)

Introduction

The Garmin GMR Fantom 54 is a 50-watt open-array marine radar engineered for mariners who demand accurate target detection and real-time situational awareness in all weather conditions. With detection capabilities extending to 72 nautical miles, this radar transforms navigation by revealing vessel traffic, storm cells, and sea conditions even when visibility drops to near zero. Built for both recreational and commercial vessels, the GMR Fantom 54 combines raw detection power with intelligent processing to reduce collision risk and improve decision-making on the water.

Key Features

• 50-Watt Power Output: Delivers detection range from 20 feet to 72 nautical miles, providing a 20% performance advantage over many competing radar systems
• MotionScope™ Doppler Technology: Color-codes moving targets for instant visual differentiation, enabling rapid identification of vessel traffic and weather movement
• 1.8-Degree Horizontal Beamwidth: Produces high-resolution radar imagery that distinguishes between closely-spaced targets and subtle geographic features
• Pulse Compression Technology: Maintains high-resolution imaging while optimizing energy consumption for extended operational periods
• Split-Screen Radar Overlay: Simultaneously displays radar data overlaid on electronic charts from compatible Garmin chartplotters
• Dynamic Auto Gain: Automatically adapts receiver sensitivity to changing sea states and environmental conditions without manual adjustment
• Dual Rotation Speeds: Selectable 24 RPM (efficiency mode) or 48 RPM (high-speed update mode) to match your navigation requirements

Data Insights

The GMR Fantom 54's 72-nautical-mile maximum range represents industry-leading detection performance, offering a measurable advantage in collision avoidance and early storm identification. MotionScope™ Doppler processing separates moving vessels from stationary objects and land features in real time, significantly reducing the mental workload required to interpret radar returns. This combination of extended range and intelligent target classification has made the GMR Fantom 54 a preferred choice among commercial fishing operations and offshore cruising vessels where weather detection and traffic avoidance are mission-critical functions.

Usage Instructions

Mount the radar on a stable platform with unobstructed 360-degree sweep capability, ideally at the highest point on your vessel to maximize line-of-sight. Connect the pedestal to a compatible Garmin chartplotter or marine display unit and complete the system calibration following Garmin's installation guidelines. Once operational, monitor the real-time radar display continuously during low-visibility conditions and when transiting busy shipping lanes. Adjust rotation speed and gain settings based on sea state and environmental conditions for optimal target detection and display clarity.

Design and Material

The GMR Fantom 54 employs a radome construction that balances performance with streamlined aesthetics while protecting internal antenna components from harsh maritime exposure. The white fiberglass radome reduces solar heat absorption and maintains the radar's thermal stability during extended operation in tropical or equatorial waters.

• Fiberglass Radome Housing: Lightweight thermoplastic composite that protects against UV degradation and seawater corrosion while maintaining electromagnetic transparency
• Aluminum Pedestal Base: Corrosion-resistant mounting structure engineered for vibration dampening and rotational stability
• Weather-Resistant Electronics: Sealed connectors and potted circuitry rated for continuous exposure to spray, rain, and fog
• Streamlined Form Factor: Low-profile design minimizes wind load and radar cross-section while preserving vessel aesthetics
• Integrated Cable Management: Organized wiring pathways reduce installation complexity and improve long-term reliability
• Lightweight Architecture: Constructed to deliver full 50-watt capability without excessive weight or center-of-gravity displacement

Final Verdict

The Garmin GMR Fantom 54 delivers professional-grade radar performance in a compact, installation-friendly package. If you navigate in fog, rain, or crowded waters, or if you rely on early storm detection and fishing ground identification, this 72-nautical-mile radar fundamentally upgrades your marine situational awareness. The combination of MotionScope™ Doppler clarity, exceptional range, and seamless chartplotter integration makes the GMR Fantom 54 the intelligent choice for mariners who refuse to compromise on safety. Upgrade your navigation system today and gain the confidence that comes with knowing exactly what lies ahead on the water.
